Capsule Pressure Gauge
Application: Used in Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corro...
PDF Datasheet
Application:
Used in Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. It can used for severe service conditions where pulsation or vibration exist. Premium quality and long life.
60mm Capsule Pressure Gauge Specification:
| Diameter | About 60mm |
| Range of measurement | All specifications |
| Size of contact | M14*1.5 |
| Installing form | Axial direction |
| Material | Copper(Contact) ; Carbon steel(Shell) |

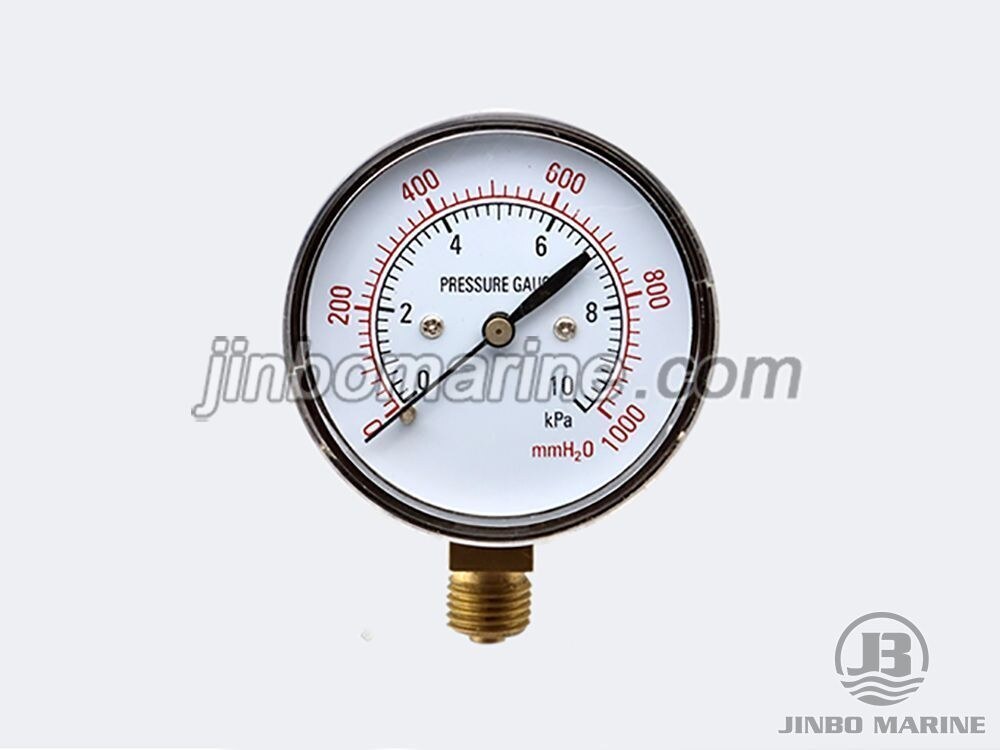

65mm Ordinary Type Capsule Pressure Gauge Specification:
| Outer diameter | 65MM |
| Testing pressure range | -100Kpa~0 to 0~100Kpa |
| Accuracy | Level 1.5；Level 2.5 |
| Sensitive element | chrome-plated carbon steel |
| Case material | steel |
| Operating environment | -25~55℃, relative humidity≤85% |
| Temperature effect | ≤0.4%/10℃ |

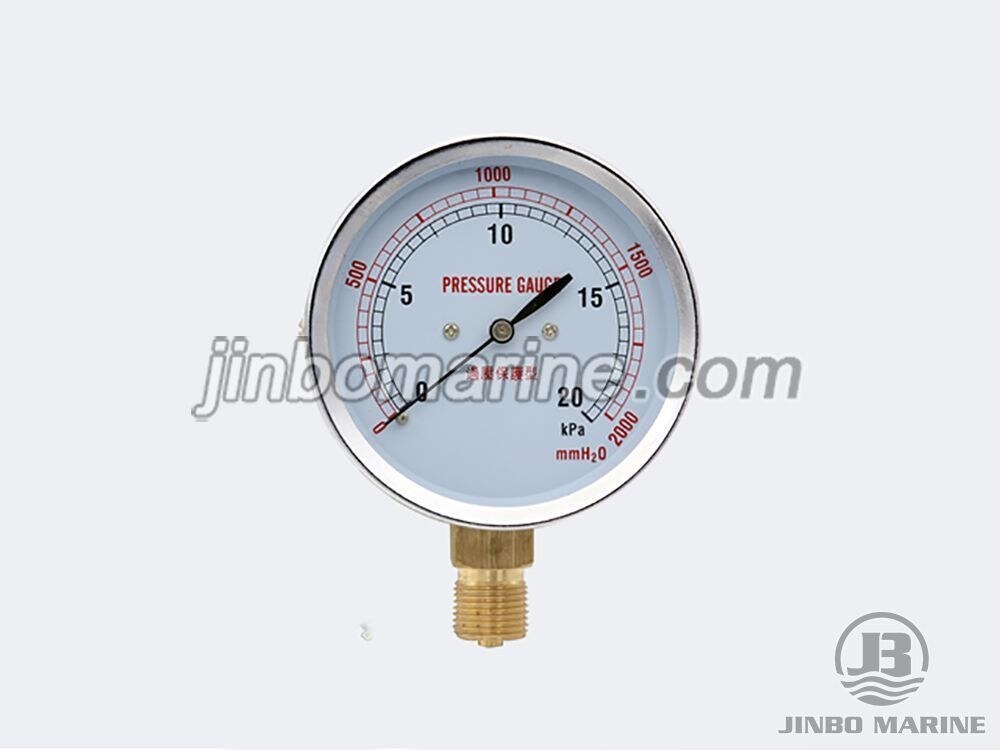

75mm Ordinary Type Capsule Pressure Gauge Specification:
| Outer diameter | 75MM |
| Testing pressure range | -100Kpa~0 to 0~100Kpa |
| Accuracy | Level 1.5；Level 2.5 |
| Sensitive element | copper (Cu) |
| Case material | chrome plated carbon steel |
| Operating environment | -25~55℃, relative humidity≤85% |
| Temperature effect | ≤0.4%/10℃ |

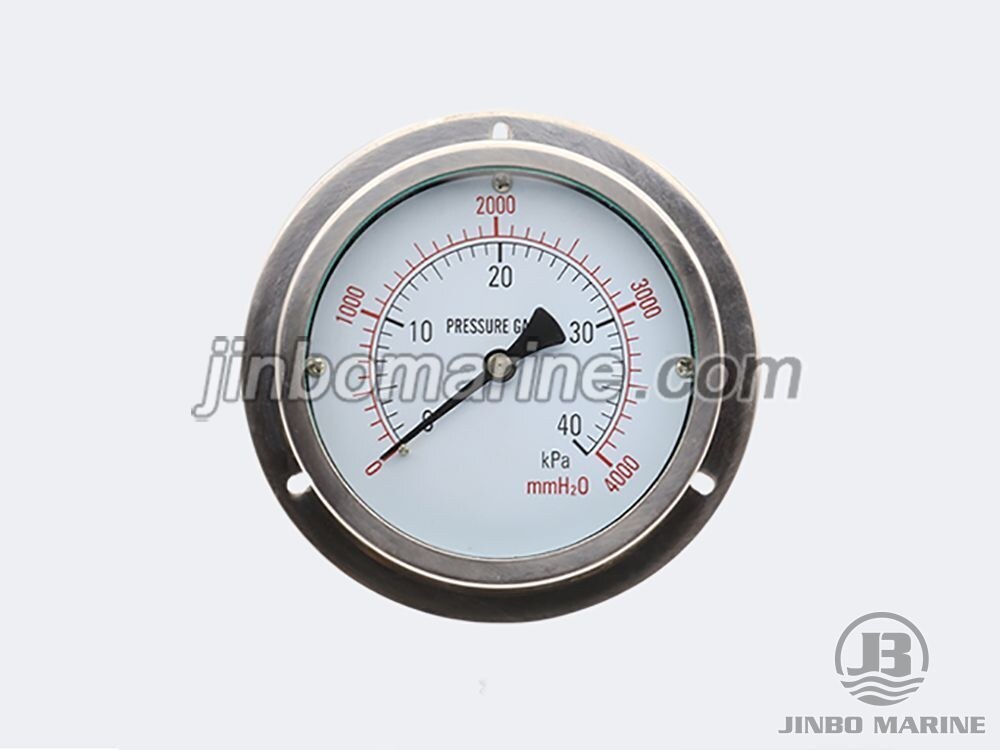

YE-100 ZT Capsule Pressure Gauge Specification:
| Outer diameter | 65MM |
| Testing pressure range | -100Kpa~0 to 0~100Kpa |
| Accuracy | Level 1.5；Level 2.5 |
| Sensitive element | 316L |
| Case material | stainless steel 304 |
| Operating environment | -25~55℃, relative humidity≤85% |
| Temperature effect | ≤0.4%/10℃ |
