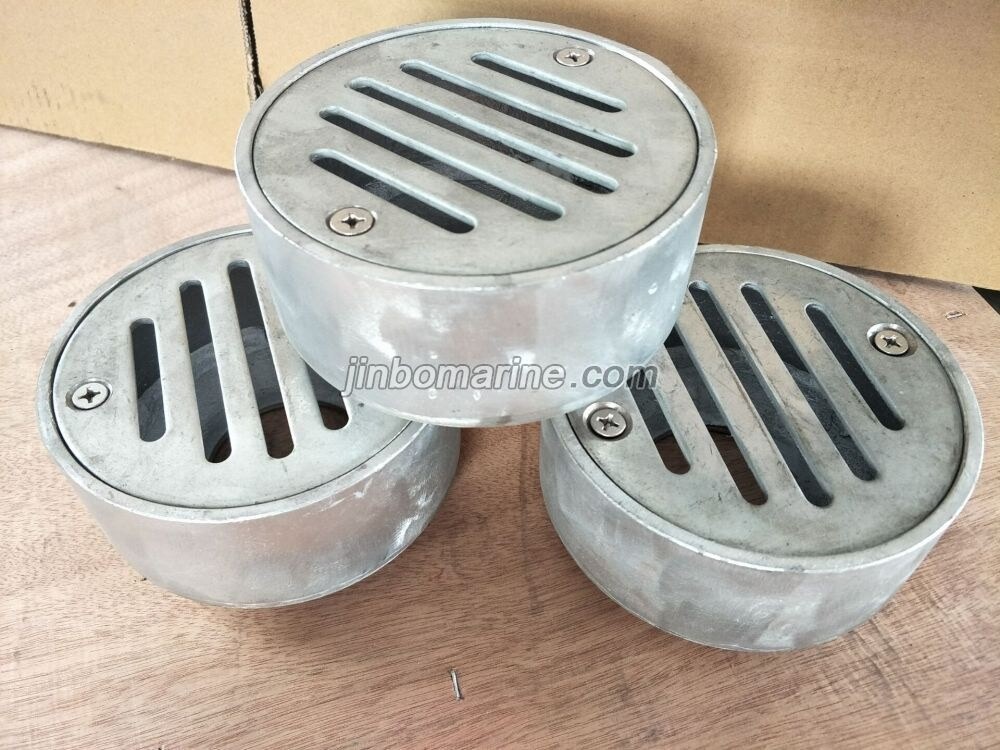

Deck Drain Mounth Type YA CB/T3885-2004
PDF Datasheet
We can supply according to your requirement.
China Deck Drain Mounth Type YA CB/T3885-2004:
Deck Drain Standard: CB/T 3885-2004
It should pass the sealing test which lasts for 5 minutes under the 0.12Mpa water pressure.
Type:
| Type | Descriptions | Nominal Size(mm) |
| YA | Round Deck Drain | 32~80 |
| YB | Round Deck Drain with flange, flange size as per GB/T10751-1989 | 32~40 |
| YBS | Round Deck Drain with flange, flange size as per GB/T2506-1989 | 32~65 |
| YC | Flat Round Deck Drain | 32~100 |
| YD | Short-tube Round Deck Drain | 40~65 |
| TA | Oval Deck Drain | 80~150 |
| TB | Oval Deck Drain with flange, flange size as per CB/T46-1999 | |
| TBS | Oval Deck Drain with flange, flange size as per GB/T2506-1989 | |
| SA | Water Sealed Deck Drain with Falnge, flange siz as per CB/T46-1999 & GB/T10751-1989 | 40~100 |
| SAS | Water Sealed Deck Drain with Falnge, flange siz as per GB/T2506-1989 | 50~100 |
| SB | Bolted Water Sealed Deck Drain with Falnge, flange siz as per CB/T46-1999 & GB/T10751-1989 | 40~100 |
| SBS | Bolted Water Sealed Deck Drain with Falnge, flange siz as per GB/T2506-1989 | 50~100 |
| SC | Welded Water Sealed Deck Drain with Falnge, flange siz as per CB/T46-1999 & GB/T10751-1989 | 40~100 |
| SCS | Welded Water Sealed Deck Drain with Falnge, flange siz as per GB/T2506-1989 | 50~100 |
Main Parts & Size:
Body---Carbon Steel with Galv
Grill---Carbon Steel with Galv
Water Seal Cover---Carbon Steel with Galv
Stem---Aluminum Bronze
Screw---Brass

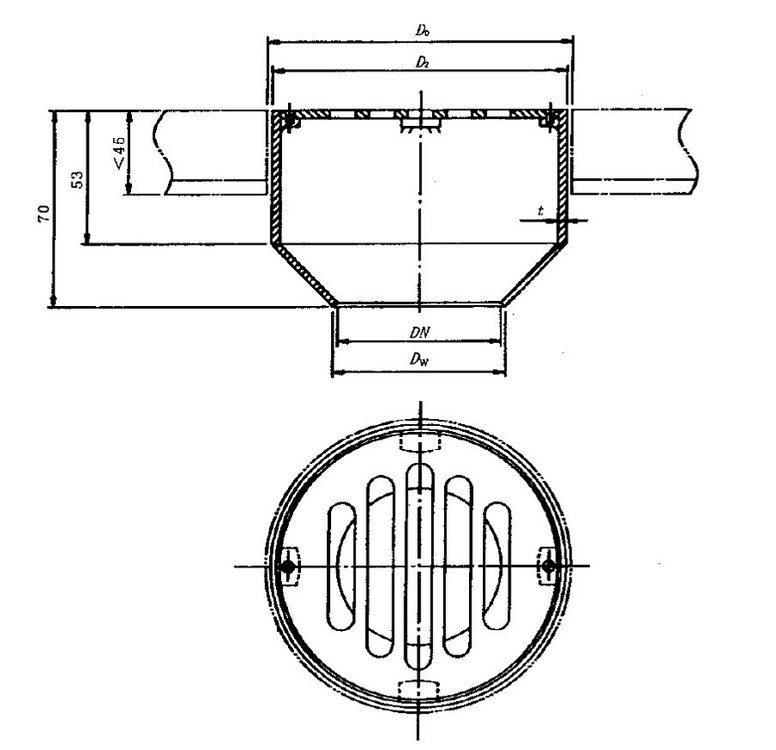

Main Size List for Type YA(mm):
| DN | Dw | D0 | D2 | t | Weight(kgs) |
| 32 | 42 | 92 | 89 | 5.5 | 0.77 |
| 40 | 48 | 0.84 | |||
| 50 | 60 | 118 | 114 | 1.09 | |
| 65 | 76 | 144 | 140 | 1.65 | |
| 80 | 89 | 172 | 168 | 6 | 2.02 |
