Copper Suction Strainer CB623-80
Suction Strainer is used as the suction on the oil tanker, water tanker, ballasting and cargo. Standard: CB623-80 Material: Carbon Steel with galvanization or Copper ...
Loading product images...

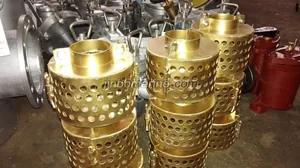

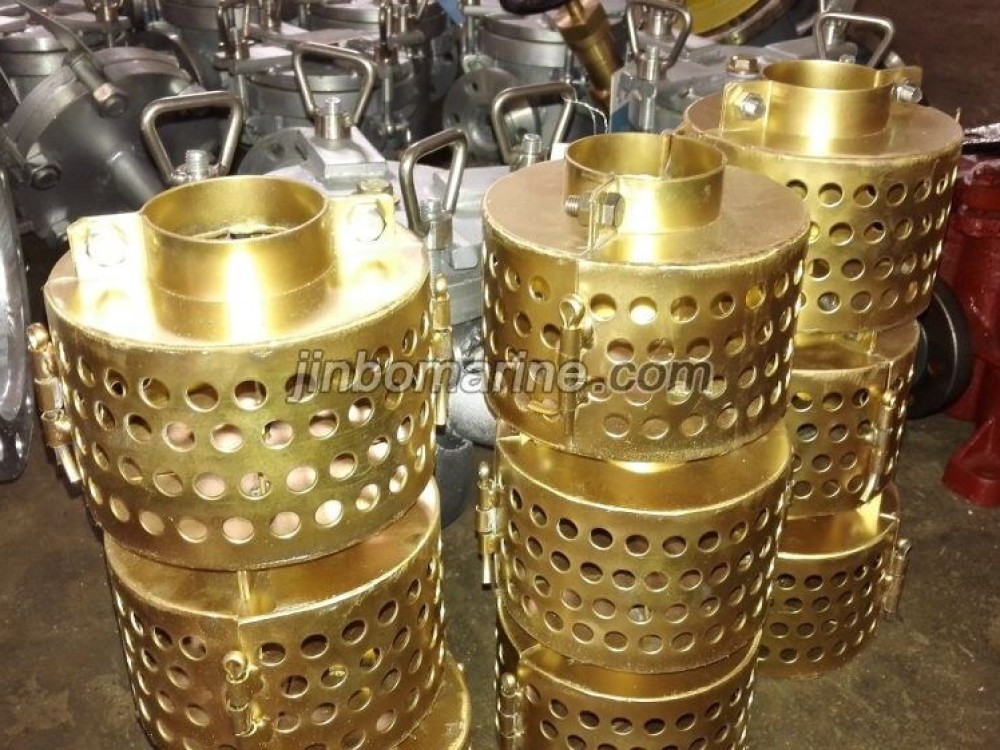

Copper Suction Strainer CB623-80
PDF Datasheet
We can supply according to your requirement.
China Copper Suction Strainer CB623-80:
Suction Strainer is used as the suction on the oil tanker, water tanker, ballasting and cargo.
Standard: CB623-80
Material: Carbon Steel with galvanization or Copper

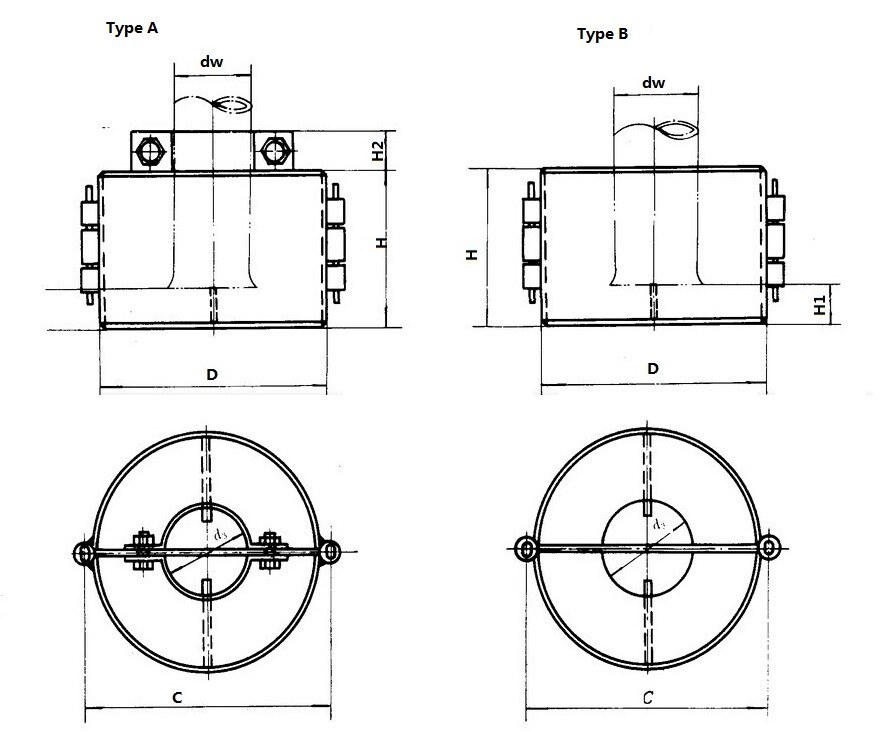

| Type | Name | Nominal Size(DN) |
| A | Round Strum Box with Clamp Ring | 25~100 |
| B | Round Strum Box | 125~250 |
| C | Wedge strum Box with Clamp Ring | 40~100 |
| D | Wedge strum Box | 125,150 |
Main Size List(mm):
| DN | Pipe Outer Diameter | Structure Size | Weight (kgs) | ||||||||||||||||||
| Steel Pipe | Copper Pipe | Water Gas Pipe | d3 | H | H1 | H2 | D | L | L1 | L2 | C | A | B | C | D | ||||||
| Type A | Type B | Steel | Copper | Steel | Copper | Steel | Copper | Steel | Copper | ||||||||||||
| 25 | 32 | 32 | 33.5 | 34 | 63 | 10 | 22 | 78 | — | — | — | 88 | — | 0.328 | 0.365 | — | — | — | — | — | — |
| 32 | 38 | 38 | 42.25 | 45 | 12 | 103 | — | — | — | 113 | — | 0.43 | 0.465 | — | — | — | — | — | — | ||
| 40 | 45 | 45 | 48 | 50 | 75 | 15 | 124 | 110 | 110 | 60 | 134 | 120 | 0.727 | 0.784 | — | — | 0.55 | 0.59 | — | — | |
| 50 | 56 | 56 | 60 | 62 | 88 | 18 | 134 | 70 | 144 | 0.868 | 0.923 | — | — | 0.78 | 0.838 | — | — | ||||
| 65 | 70 | 70 | 75.5 | 78 | 100 | 22 | 144 | 130 | 120 | 80 | 154 | 140 | 0.942 | 1.02 | — | — | 1.326 | 1.432 | |||
| 80 | 89 | 89 | 88.5 | 92 | 112 | 25 | 168 | 165 | 146 | 100 | 178 | 175 | 1.462 | 1.59 | — | — | 1.396 | 1.506 | |||
| 100 | 108 | 108 | 114 | 116 | 136 | 30 | 204 | 210 | 180 | 120 | 216 | 224 | 2.03 | 2.2 | — | — | 2.096 | 2.26 | |||
| 125 | 133 | 133 | 140 | 142 | 150 | 38 | — | 266 | 268 | 222 | 142 | 280 | 282 | — | — | 3.546 | 3.938 | — | — | 3.79 | 4.09 |
| 150 | 159 | 159 | 165 | 168 | 186 | 45 | — | 302 | 310 | 260 | 174 | 316 | 324 | — | — | 5.341 | 5.772 | — | — | 5.73 | 6.038 |
| 200 | 219 | 206 | — | 225/215 | 234 | 62 | — | 396 | — | — | — | 410 | — | — | — | 8.852 | 9.574 | — | — | — | — |
| 250 | 273 | 258 | — | 280/264 | 306 | 75 | — | 456 | — | — | — | 464 | — | — | — | 11.16 | 11.64 | — | — | — | — |
