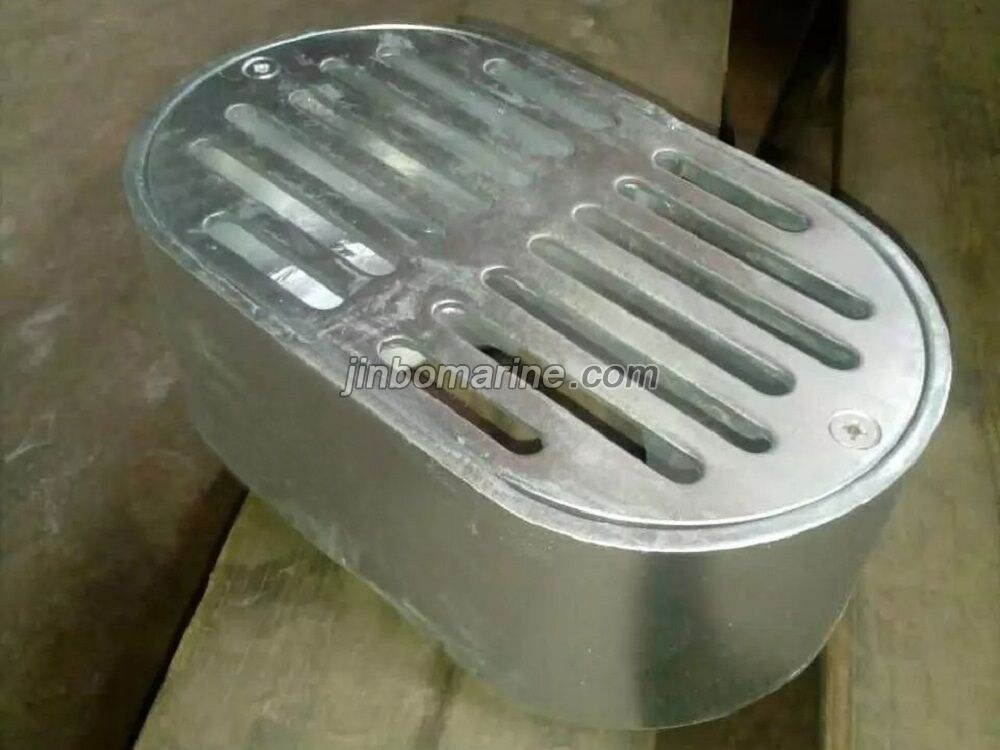

Oval Deck Scupper CB/T3885-2004 Type TA
Deck Scupper is also called as deck drain, deck drain mouth, water scupper, used to drain the water on the deck or the cabin floor. Standard: CB/T 3885-2004 It should pass the se...
Loading product images...
Oval Deck Scupper CB/T3885-2004 Type TA
PDF Datasheet
We can supply according to your requirement.
China Oval Deck Scupper CB/T3885-2004 Type TA:
Deck Scupper is also called as deck drain, deck drain mouth, water scupper, used to drain the water on the deck or the cabin floor.
Standard: CB/T 3885-2004
It should pass the sealing test which lasts for 5 minutes under the 0.12Mpa water pressure.
Type:
| Type | Descriptions | Nominal Size(mm) |
| YA | Round Deck Scupper | 32~80 |
| YB | Round Deck Scupper with flange, flange size as per GB/T10751-1989 | 32~40 |
| YBS | Round Deck Scupper with flange, flange size as per GB/T2506-1989 | 32~65 |
| YC | Flat Round Deck Scupper | 32~100 |
| YD | Short-tube Round Deck Scupper | 40~65 |
| TA | Oval Deck Scupper | 80~150 |
| TB | Oval Deck Scupper with flange, flange size as per CB/T46-1999 | |
| TBS | Oval Deck Scupper with flange, flange size as per GB/T2506-1989 | |
| SA | Water Sealed Deck Scupper with Flange, flange siz as per CB/T46-1999 & GB/T10751-1989 | 40~100 |
| SAS | Water Sealed Deck Scupper with Flange, flange siz as per GB/T2506-1989 | 50~100 |
| SB | Bolted Water Sealed Deck Scupper with Flange, flange siz as per CB/T46-1999 & GB/T10751-1989 | 40~100 |
| SBS | Bolted Water Sealed Deck Scupper with Falnge, flange siz as per GB/T2506-1989 | 50~100 |
| SC | Welded Water Sealed Deck Scupper with Falnge, flange siz as per CB/T46-1999 & GB/T10751-1989 | 40~100 |
| SCS | Welded Water Sealed Deck Scupper with Falnge, flange siz as per GB/T2506-1989 | 50~100 |
Main Parts & Size:
Body---Carbon Steel with Galv
Grill---Carbon Steel with Galv

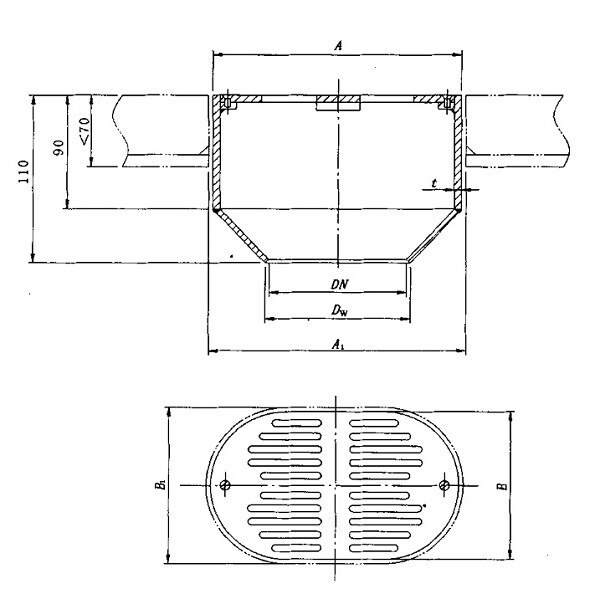

Main Size List(mm):
| DN | DW | A | A1 | B | B1 | t | weight(kg) |
| 80 | 89 | 210 | 214 | 135 | 139 | 6 | 4.4 |
| 100 | 114 | 250 | 254 | 150 | 154 | 8 | 8.6 |
| 125 | 140 | 300 | 304 | 175 | 179 | 8 | 15.5 |
| 150 | 168 | 350 | 354 | 200 | 204 | 9 | 17.9 |
