Marine Equipment

Devil's Claw Type Chain Stopper Assembly

JINBO MARINE supply the devils claw from 3/4 inch to 4 inch, heavy strength and high quality, please contact our sales team for inquiry. CHAIN SIZE...

Chain Stopper1 Photos ISO9001 Supplier

Loading product images...

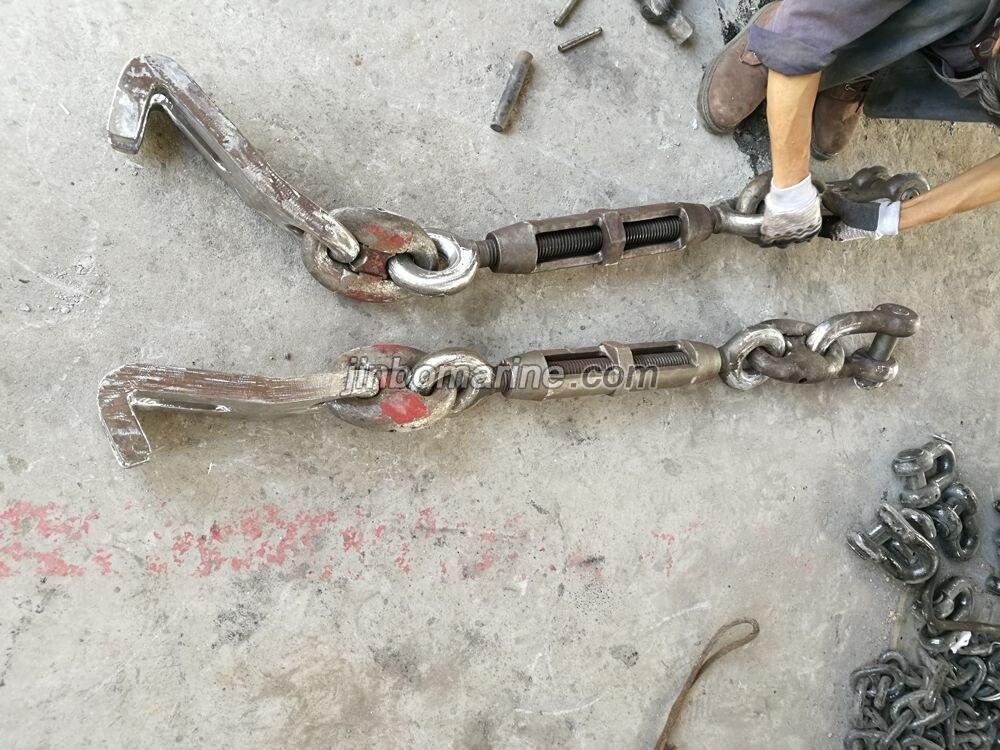

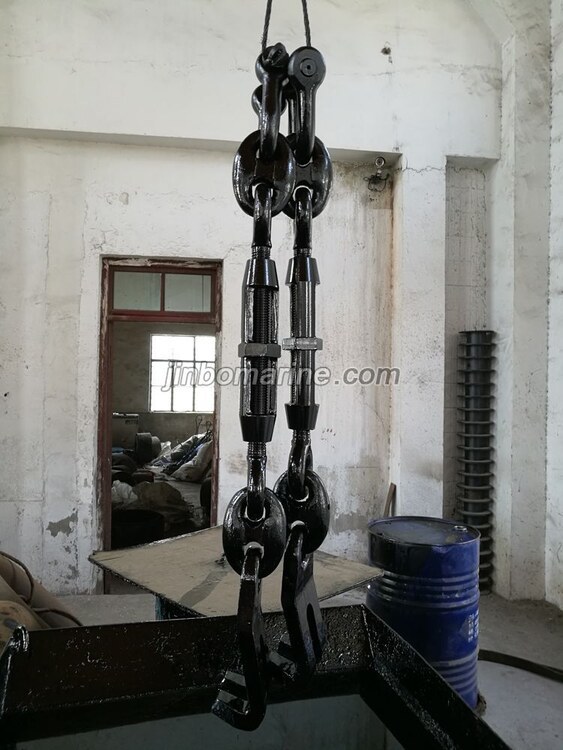

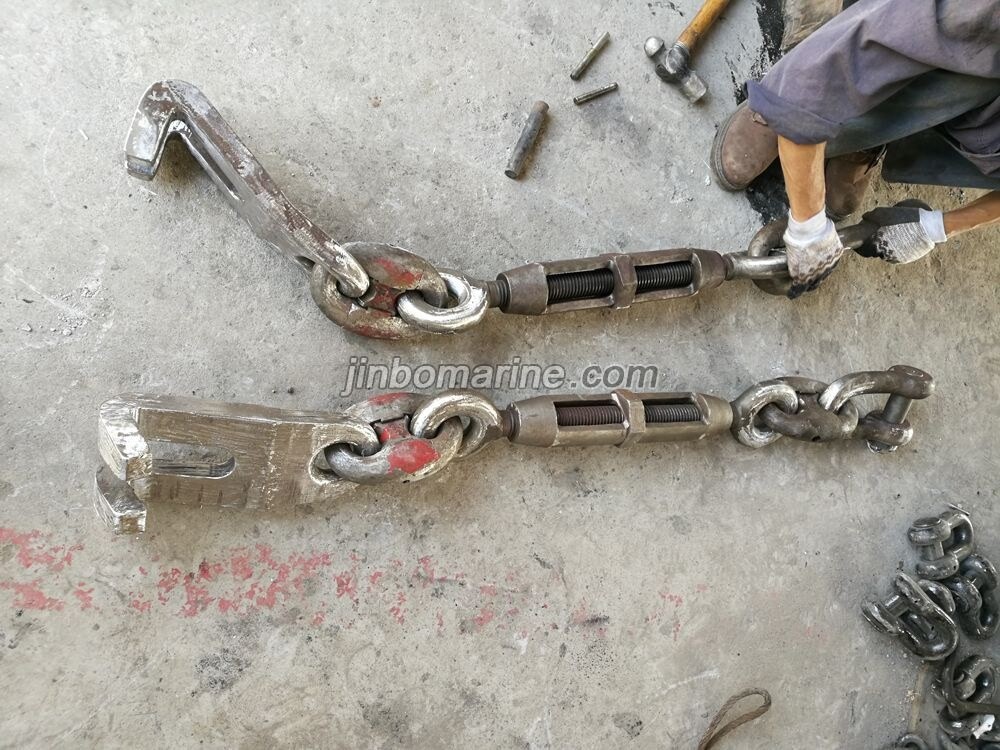

Devil's Claw Type Chain Stopper Assembly

Category: Chain Stopper

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

China Devil's Claw Type Chain Stopper Assembly:

JINBO MARINE supply the devils claw from 3/4 inch to 4 inch, heavy strength and high quality, please contact our sales team for inquiry.

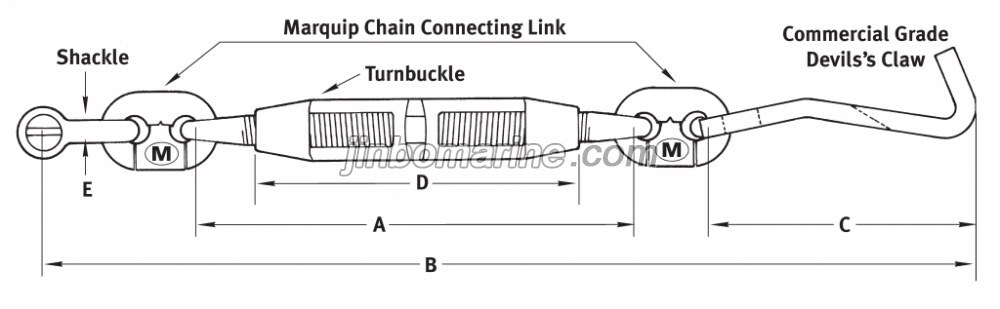

CHAIN SIZE		B Min.	B Max.	A	D	C	E	Det. Link Size	Proof Load Lbs.	Break Load Lbs.	Wt. Lbs.
Inches	mm
3/4 - 7/8	19 - 22	34-1/2	42	17-1/4	11	6-3/4	1	7/8	64400	91800	33
15/16 - 1.1/4	24 - 32	46-11/16	55-11/16	19-5/8	13	9	1-1/4	1-1/4	129000	184000	73
1.5/16 - 1.5/8	33 - 41	53	63-1/2	23-3/4	16	12-1/4	1-1/2	1-1/2	183500	262000	145
1.11/16 - 2.3/8	43 - 60	57-1/4	67-3/4	24-1/8	16	15-5/8	1-5/8	1-1/2	183500	262000	181
2.7/16 - 2.3/4	62 - 70	69-1/4	89-1/4	29-3/4	20	18	1-7/8	1-3/4	247000	352000	403
2.13/16 - 3.1/2	71 - 89	90-1/2	106-1/2	38-3/8	24	23	2-5/8	2-1/2	484000	692000	872
3.9/16 - 4	90 - 102	106-1/8	124-1/8	44-3/8	27-1/2	28	2-7/8	3	679000	970000	1216
