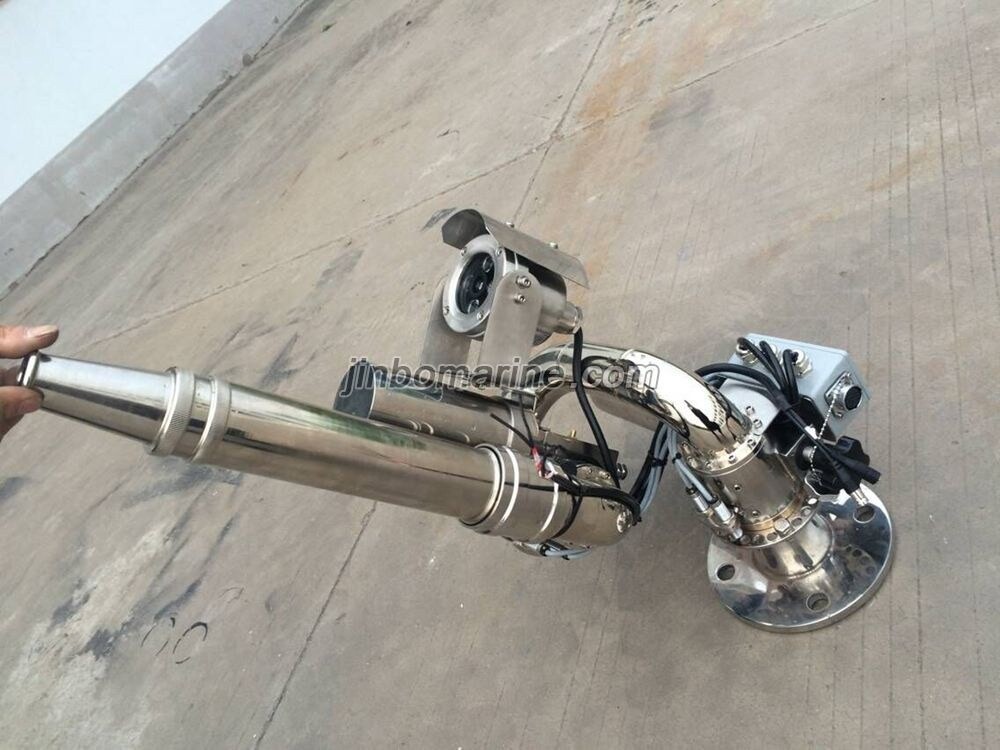

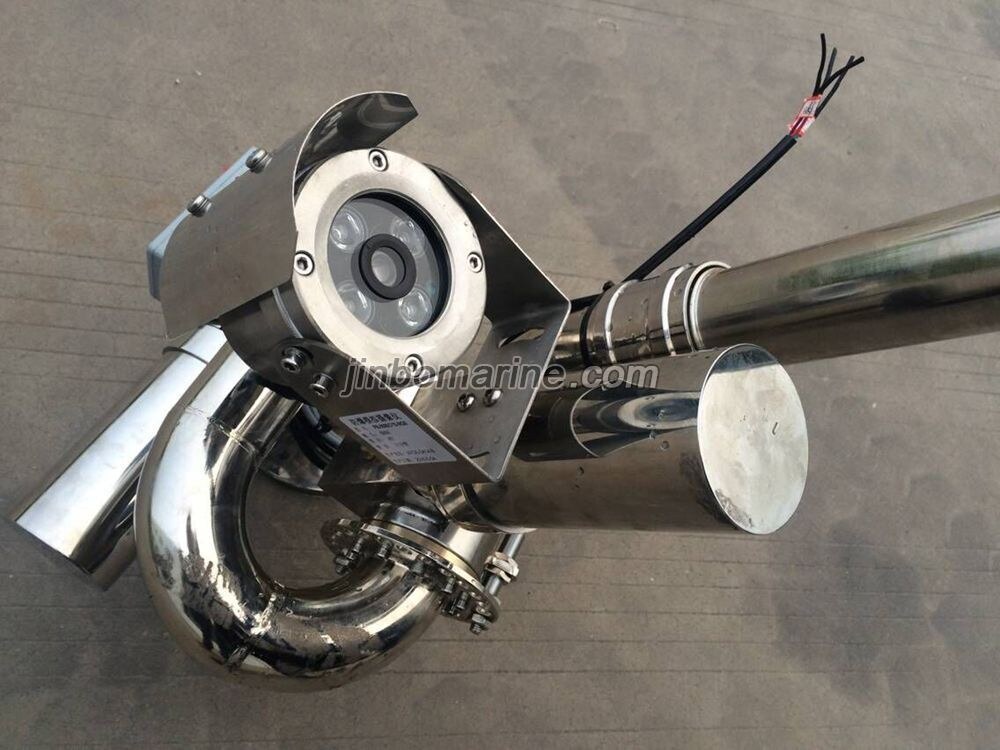

Electrical Water Fire Monitor (Riot Control) 20L/S
Type : JBPSKD20-riot control
Flow Range: 20L/S (320GPM),
Working Pressure: 6 bar~ 16 bar
Max Reach @ Max Flow: 65M
Max. Range of motion: +/-90°Vert , 350°Rot
Turning speed：18 degrees/se...
Fire Monitor2 PhotosISO9001 Supplier
Loading product images...
Electrical Water Fire Monitor (Riot Control) 20L/S
China Electrical Water Fire Monitor (Riot Control) 20L/S:
Type : JBPSKD20-riot control Flow Range: 20L/S (320GPM), Working Pressure: 6 bar~ 16 bar Max Reach @ Max Flow: 65M Max. Range of motion: +/-90°Vert , 350°Rot Turning speed：18 degrees/sec Material (body)：304L Stainless Steel, 316L Stainless Steel is also available Material (Gear)：Bronze Material (nozzle)：stainless steel power supply：12/24VDC or 100-230VAC Power Consumption normal/Max：50W/150W Weight incl. nozzle：appox 20kg Cable Length Monitor- CPU：5m Cable Length Joystick-CPU：5m standard/ other length available Pump requirement for minimum performance：20L/S@ 6 bar Pipe dimensions for installation: 2-2.5 Inch Monitor Inlet：2.5” male BSP or DN65 flange Monitor Outlet：2 inch (50mm) Water way size: 2 inch
PACKAGE: SS MONITOR, NOZZLE, CAMERAL, INFARED LAMP, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL (OPTIONAL),
