Floating Oil Capsule
Floating oil capsule Floating oil capsule is a kind of temporary oil storage facility floatable and towable. It is used as emergency response unit for storing and transporting oil an...
PDF Datasheet

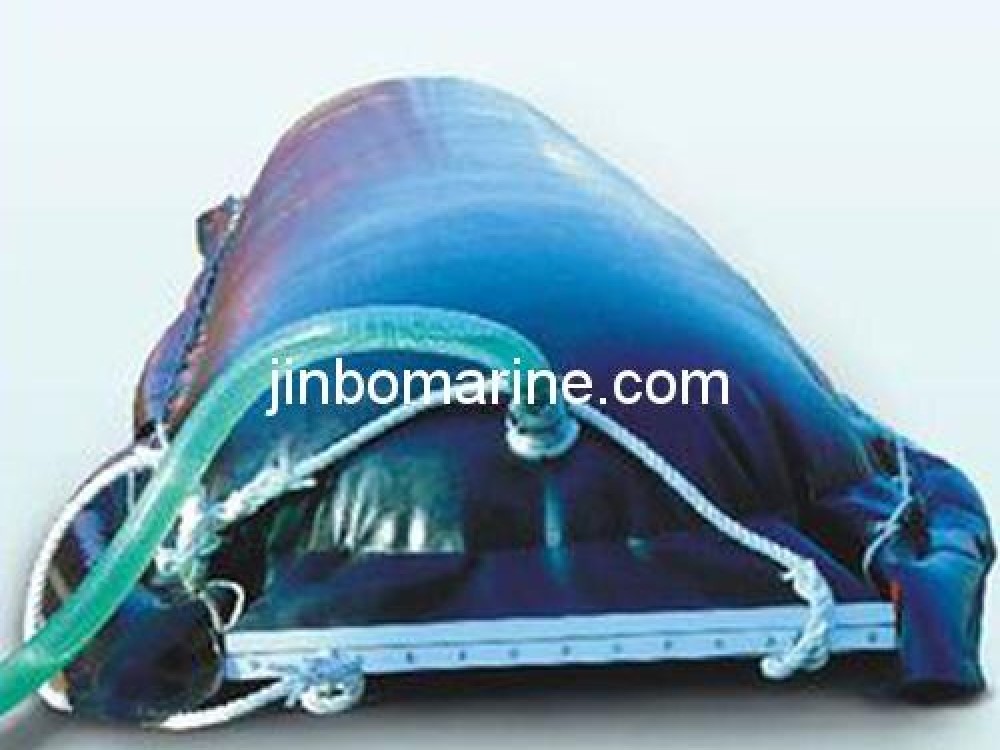

Floating oil capsule
Floating oil capsule is a kind of temporary oil storage facility floatable and towable. It is used as emergency response unit for storing and transporting oil and can also be used as container for storing liquid on land or on vehicle. Capsules can form into a series when connected by quick couplings. It is particularly suitable for storing oil of high viscosity and can download oil when hoisted.
Features:
- Oil-resistant rubber layer or strengthened double-layer fabric coated with corrosion-resistant layer has a long service life.
- Smooth surface, easy to be cleaned, stored in portable package.
- Air chamber and fluid inlet and outlet on the capsule body.
- Tractors on the capsule end brings easy haul.
- Can be disassembled at both ends for cleanup.
Technical parameter
| Model | Capacity | Loaded dimension | Max dimension | Draft | Hauling speed | Net weight | Working temperature |
| (m) | (m) | (m) | (knot) | (kg) | ( c ) | ||
| FYN-10 | 10m3 | 1.6x5 | 5.6x2.65 | 1.35 | 3 | 105 | -20-50 |
| FYN-15 | 15m3 | 1.6x9 | 9.1x2.65 | 175 | |||
| FYN-5 | 5m3 | 1.6x5 | 5.7x2.8 | 0.6 | 85 |
