Disc oil skimmer

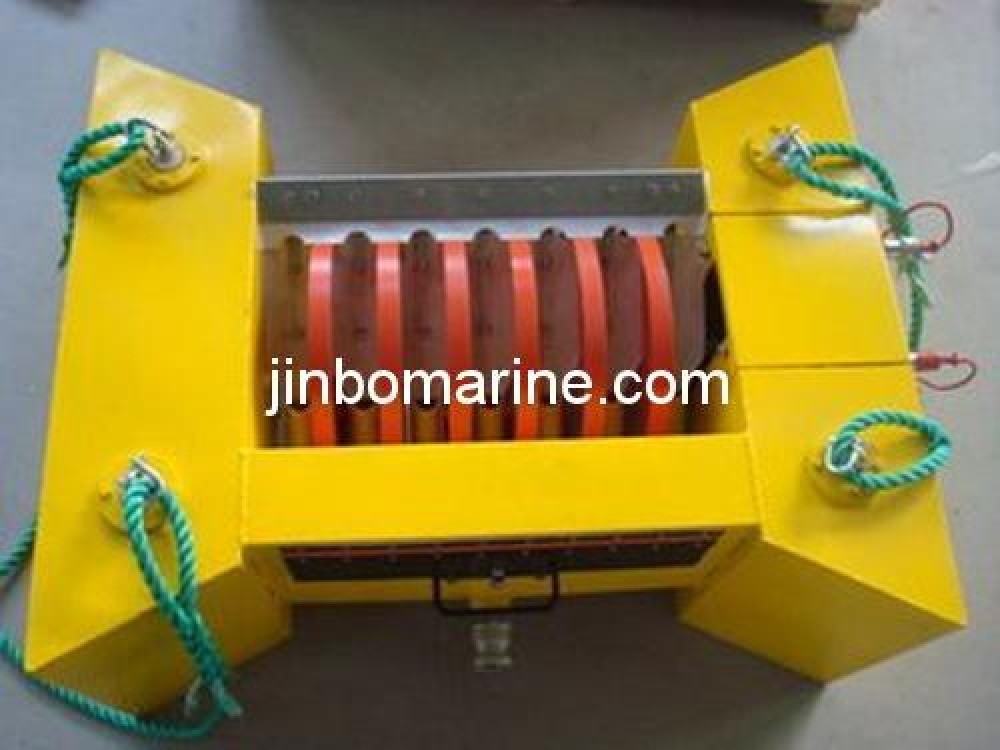

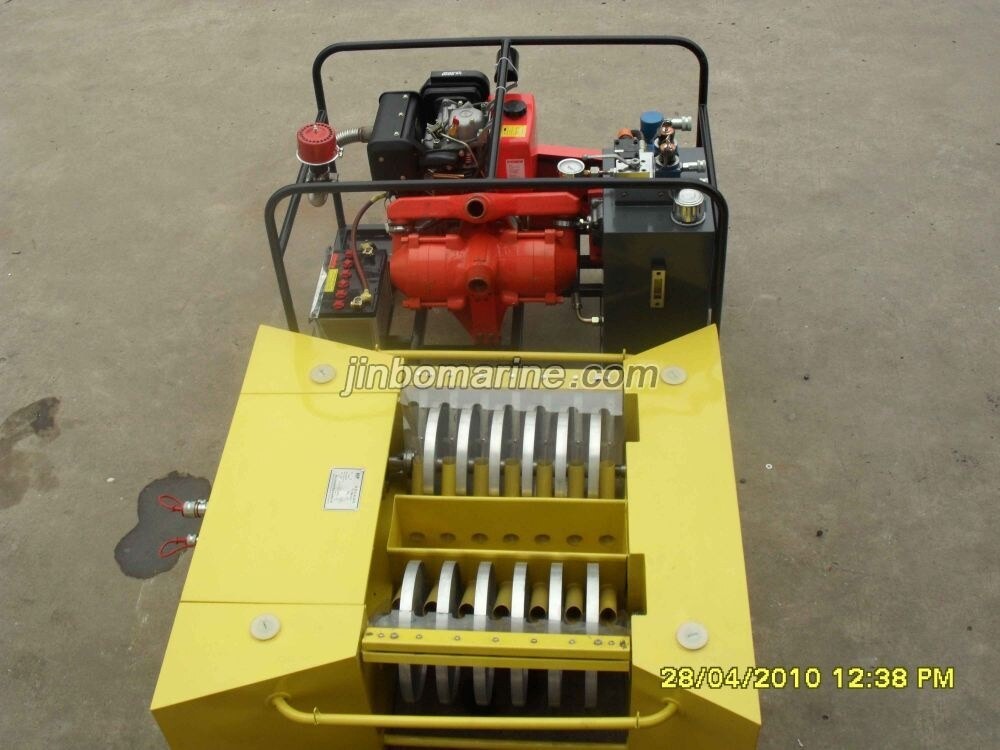

Disc oil skimmer is a portable, efficient oil spill recovery unit, consisting of floating skimmer above water, power system on shore or vessel and pipelines connecting them. It is applicable in pools, lakes, rivers and ocean.
Features:
- High efficiency
- Capability of reclaiming oil, crude oil, vegetable oil and other fluid oil
- Low water capacity in reclaimed oil
- Low draft, good buoyancy in waves.
- Light weight, easy transference, applicable in oil spill emergency response.
Technical parameter
| Skimmer mode | ZSY5 | ZS15 | ZSY20 | ZS30 | ZS60 | ||
| Maximum oil reclaim rate | 5 | 15 | 20 | 30 | 8 | ||
| Oil skimmer | Mass (kg) | 42 | 76 | 110 | 170 | 710 | |
| External dimension (mm) | Length | 920 | 1100 | 1500 | 1650 | 2400 | |
| Width | 750 | 1100 | 1100 | 1650 | 2400 | ||
| Height | 400 | 550 | 600 | 700 | 1750 | ||
| Draft (mm) | 110-150 | 240-280 | 280-310 | 380-420 | 630-660 | ||
| Power station | Power(kw) | 4/3 | 6.6/5.5 | 6.6/5.5 | 28 | 35 | |
| Mass (kg) | 180/215 | 190/215 | 190/245 | 800 | 980 | ||
| Overall dimensions (mm) | Length | 1050/1050 | 1050/1050 | 1050/1050 | 2000 | 1800 | |
| Width | 700/780 | 700/780 | 700/780 | 1050 | 1000 | ||
| Height | 830/950 | 830/950 | 830/950 | 1200 | 1350 | ||
| Maximum delivery lift | 12m | 12m | 12m | 20m | 30m | ||
| Maximum suction lift | 4.5m | 4.5m | 4.5m | 5m | 5m | ||
