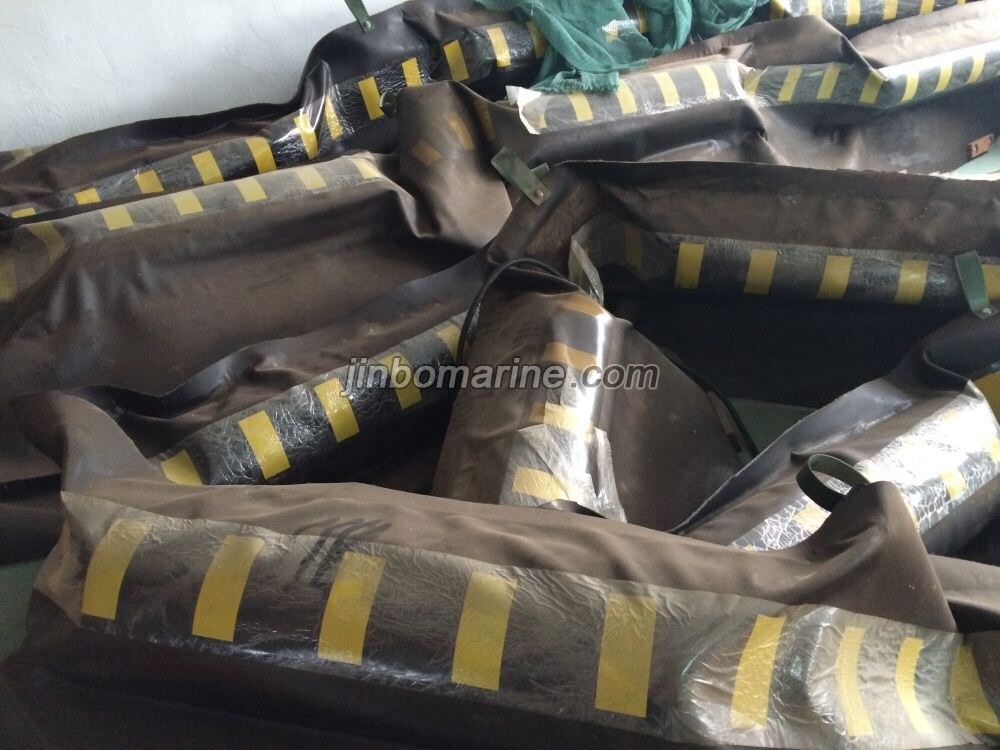

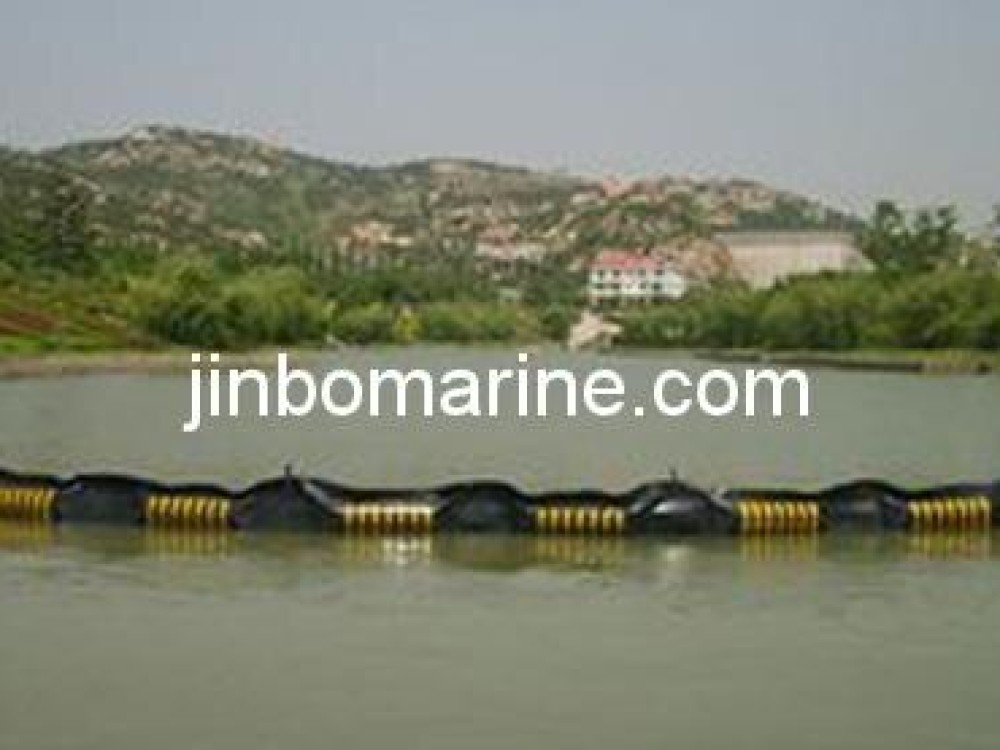

Solid Float Rubber Boom
Solid float rubber boom Features: Made of special rubber with high intensity resistant to abrasion oil and weather conditions High buoyancy with even outer sha...
Solid float rubber boom
Features:
Made of special rubber with high intensity resistant to abrasion oil and weather conditions
High buoyancy with even outer shape and easy to store
With smooth surface favorable to spilled oil guidance and cleaning
Quick universal connectors, enables fast deployment and linking to booms made by other manufacturers
Enhanced counterweight gives higher intensity, the boom can form saucer shape which is favorable for holding the oil in rough water-saucer shape effect.
Main technical data of WGJ series solid float rubber boom
| Type | Overall height(mm) | Unit length(m) | Height above water(mm) | Submerged depth(mm) | Pull force(kn) | Wave resistance(m) | Currents resistance(knot) | Wind resistance (m/s) | Pulling speed(knot) | Working temperature© |
| WGJ800 | 800+/-10 | 20 | 280 | 430 | 140 | 2 | 2.5 | 11.5 | 3-7 | -30-60 |
| WGJ1000 | 1000+/-10 | 20 | 340 | 510 | 160 | 2.5 | 3 | 15 | 3-7 | -30-60 |
| WGJ1200 | 1200+/-200 | 20 | 390 | 610 | 180 | 3 | 3 | 20 | 4-8 | -30-60 |
| WGJ1500 | 1500+/-15 | 20 | 500 | 750 | 200 | 3 | 3.5 | 20 | 4-8 | -30-60 |
