Fork Terminal Cast, SS304 OR SS
SIZE A mm B mm C mm D mm E mm 3.3 16.5 3.3 ...
Loading product images...

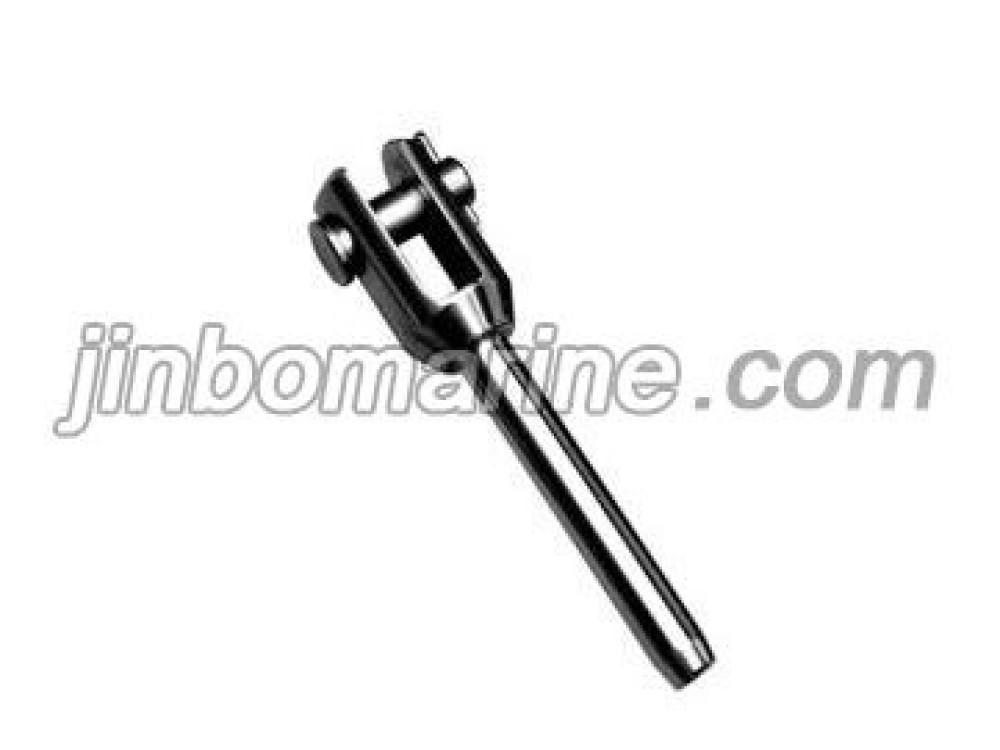

Fork Terminal Cast, SS304 OR SS
PDF Datasheet
We can supply according to your requirement.
China Fork Terminal Cast, SS304 OR SS:
| SIZE | A mm | B mm | C mm | D mm | E mm |
| 3.3 | 16.5 | 3.3 | 38 | 72 | 5.8 |
| 4.4 | 21 | 4.4 | 44 | 91 | 7.8 |
| 5.3 | 25 | 5.3 | 52 | 104 | 8.9 |
| 6.4 | 28 | 6.4 | 62 | 130 | 11.9 |
| 7.4 | 30 | 7.4 | 70 | 140 | 11.9 |
| 8.4 | 36 | 8.4 | 80 | 150 | 15.9 |
| 12.5 | 45 | 12.5 | 105 | 220 | 18.9 |
