Fork Terminal Forged, SS304 OR SS316
SIZE mm Φ mm Φ mm A mm B mm C mm SWL kgs BL kgs ...
Loading product images...

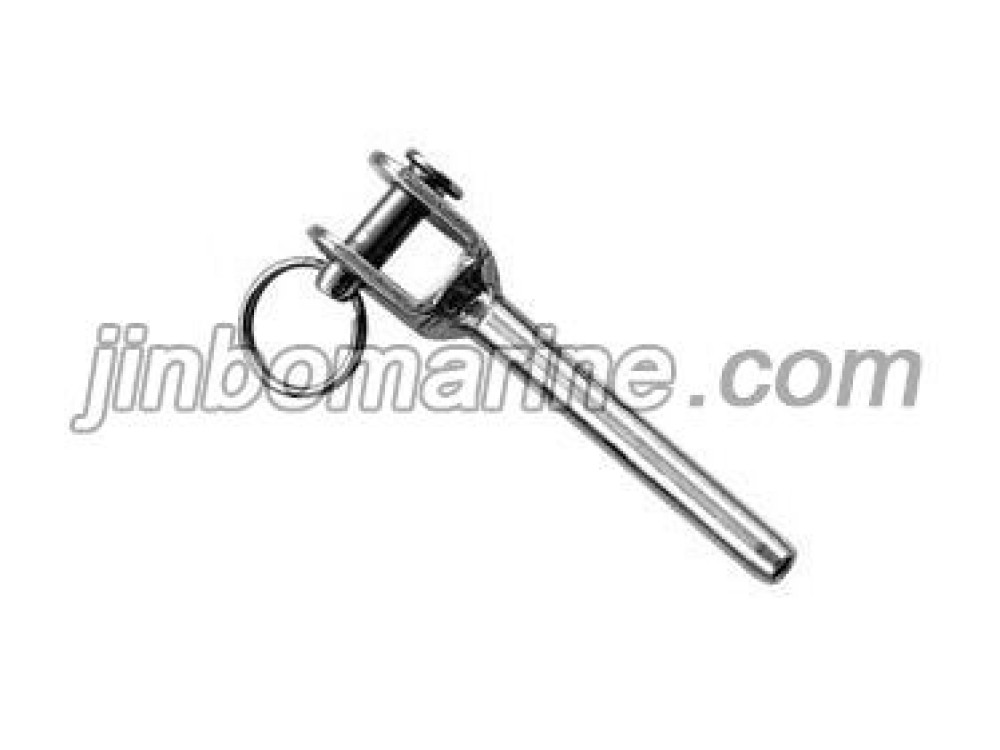

Fork Terminal Forged, SS304 OR SS316
PDF Datasheet
We can supply according to your requirement.
China Fork Terminal Forged, SS304 OR SS316:
| SIZE mm | Φ mm | Φ mm | A mm | B mm | C mm | SWL kgs | BL kgs |
| 2.7 | 2.7 | 5.45 | 6.5 | 55 | 24 | 175 | 700 |
| 3.3 | 3.3 | 6.35 | 7.5 | 65 | 32 | 313 | 1250 |
| 4.2 | 4.2 | 7.5 | 10 | 77 | 40 | 450 | 1800 |
| 5.3 | 5.3 | 9 | 12 | 88 | 57 | 663 | 2650 |
| 6.4 | 6.4 | 12.5 | 14 | 106 | 63 | 1000 | 4000 |
| 8.4 | 8.4 | 16.1 | 15 | 145 | 85 | 1450 | 5800 |
| 10.5 | 10.5 | 17.8 | 17 | 150 | 89 | 1800 | 7200 |
