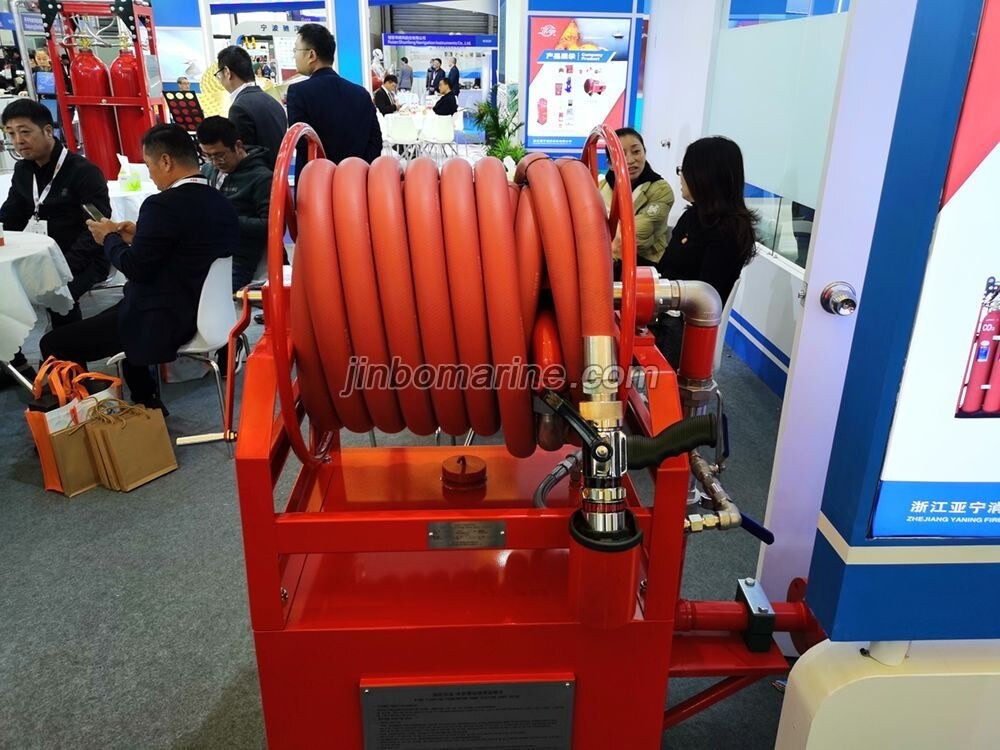

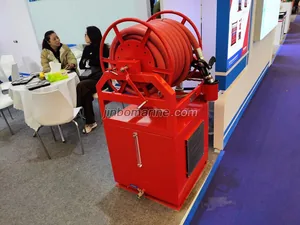

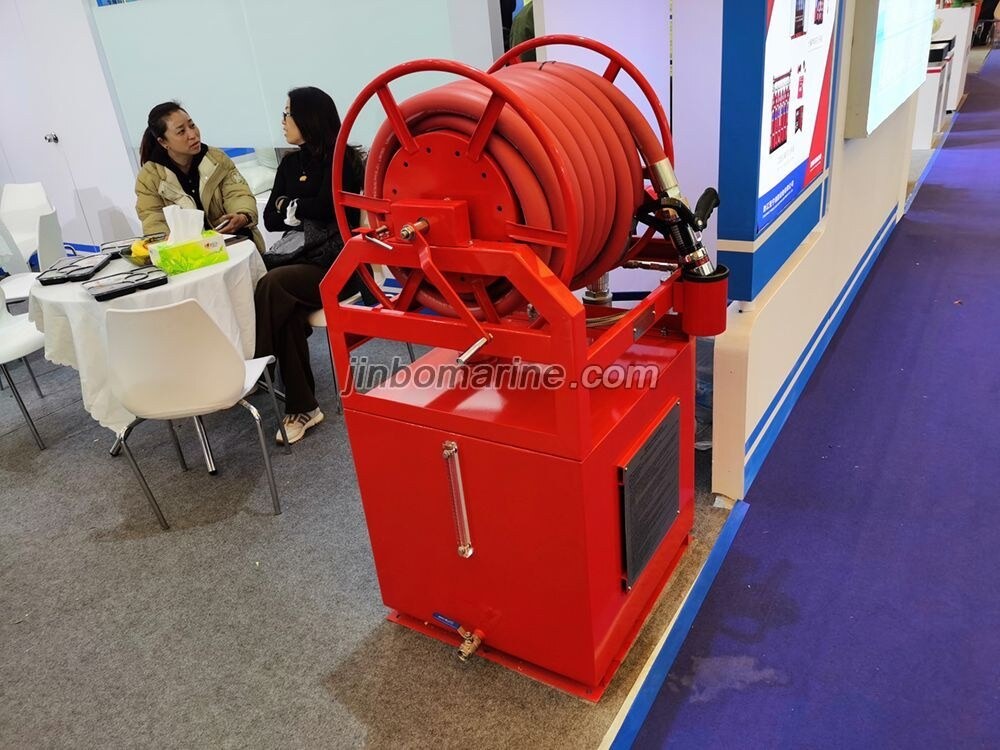

Fixed Fire Water Foam Hose Reel Station
Fixed Fire Water Foam Hose Reel Station Approval standard:National standard of P.R.China,GB15090-2005 Fire hose reel. Application of the product:Oil platform,ve...
Fixed Fire Water Foam Hose Reel Station
We can supply according to your requirement.
China Fixed Fire Water Foam Hose Reel Station:
Fixed Fire Water Foam Hose Reel Station
Approval standard:National standard of P.R.China,GB15090-2005 Fire hose reel.
Application of the product:Oil platform,vessel,oil terminal,mines and other enterprises,Chemical industry department,oil depot,petrol station.
Technical Data
| Model Number | SJP8 | SJP16 | PJP8 | PJP16 |
| Working pressure(Mpa) | 0.7 | 0.7 | ||
| Rated flow(L/S) | 8±8% | 16±8% | 8±8% | 16±8% |
| Range(meter) | 18~28 | ≥18 | ||
| Ratio of Mixture | 3% or 6% | |||
| Type of foam concentrate | AFFF | |||
| Capacity of foam concentrate box | 100~500 | |||
