Four Legs Pressed Wire Rope Sling
The specification of the steel wire rope in the form with the working load is: 6*37+FC-1670; The 0-90 can be used if the customers do not have any special requirement. Different ...
Loading product images...

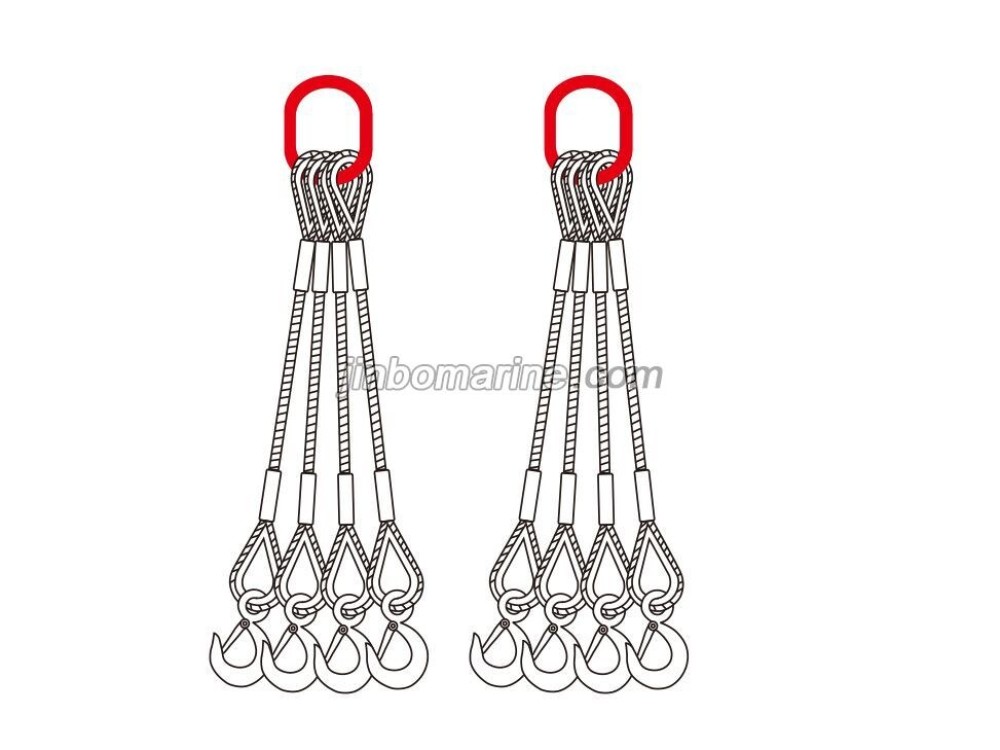

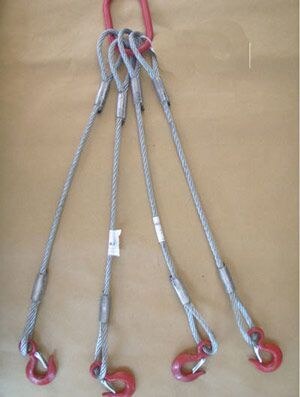

Four Legs Pressed Wire Rope Sling
PDF Datasheet
We can supply according to your requirement.
China Four Legs Pressed Wire Rope Sling:
The specification of the steel wire rope in the form with the working load is: 6*37+FC-1670;
The 0-90 can be used if the customers do not have any special requirement.
Different construction rope with different working load, we can calculate the working load of the steel wire rope construction that the customer required.
According to the Standard GB/T16271-1996.

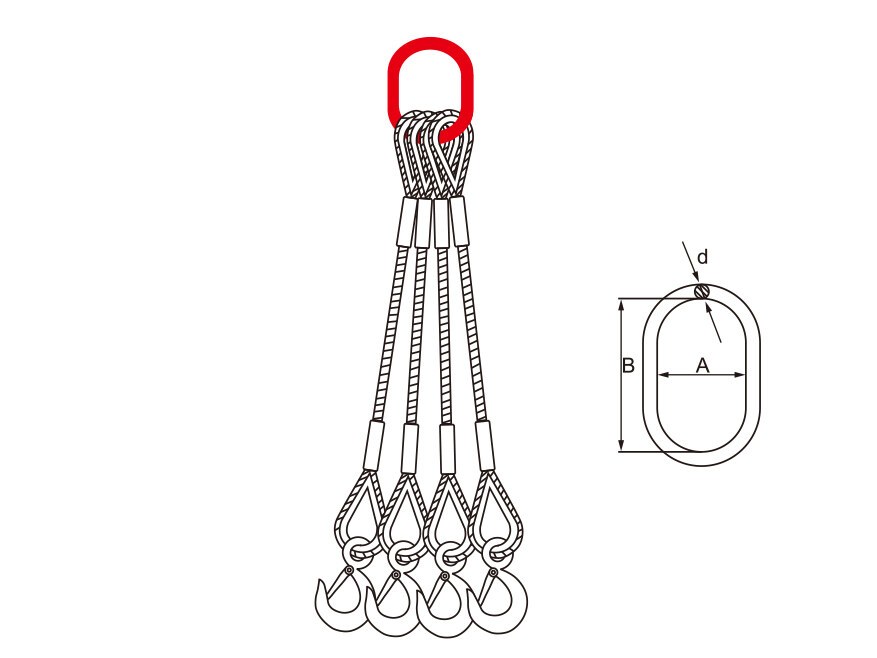

| Producs type | Dia of rope(d) （mm） | Working load limit （kN） | A×B×d （mm） | Hook | ||
| 0〇-45〇 | 45〇-60〇 | Art NO | Working load（t） | |||
| VCFH06 | 6 | 5.6 | 4 | 65×130×16 | （US）S6 | 0.75 |
| VCFH07 | 7 | 7.6 | 5.4 | 65×130×16 | （US）S6 | 0.75 |
| VCFH08 | 8 | 9.9 | 7.1 | 65×130×16 | （US）S6 | 0.75 |
| VCFH09 | 9 | 12.6 | 9 | 65×130×16 | （US）S6 | 0.75 |
| VCFH10 | 10 | 15 | 11 | 65×130×16 | （US）S6 | 0.75 |
| VCFH11 | 11 | 19 | 13 | 65×130×16 | （US）S6 | 1 |
| VCFH12 | 12 | 22 | 16 | 80×150×20 | （US）S6 | 1.5 |
| VCFH13 | 13 | 26 | 19 | 80×150×20 | （US）S6 | 1.5 |
| VCFH14 | 14 | 30 | 22 | 80×150×20 | （US）S6 | 1.5 |
| VCFH16 | 16 | 40 | 28 | 90×160×24 | （US）S6 | 2 |
| VCFH18 | 18 | 50 | 36 | 90×160×24 | （US）S6 | 3 |
| VCFH20 | 20 | 62 | 44 | 100×190×28 | （US）S6 | 3 |
| VCFH22 | 22 | 75 | 54 | 100×190×28 | （US）S6 | 5 |
| VCFH24 | 24 | 89 | 64 | 110×200×32 | （US）S6 | 5 |
| VCFH26 | 26 | 105 | 75 | 110×200×32 | （US）S6 | 5 |
| VCFH28 | 28 | 122 | 87 | 120×230×34 | （US）S6 | 7.5 |
| VCFH30 | 30 | 138 | 99 | 135×250×38 | （US）S6 | 7.5 |
| VCFH32 | 32 | 159 | 113 | 135×250×38 | （US）S6 | 10 |
| VCFH34 | 34 | 178 | 127 | 140×270×42 | （US）S6 | 10 |
| VCFH36 | 36 | 201 | 144 | 140×270×42 | （US）S6 | 10 |
| VCFH38 | 38 | 224 | 159 | 160×310×46 | EYE | 15 |
| VCFH40 | 40 | 248 | 177 | 160×310×46 | EYE | 15 |
| VCFH42 | 42 | 273 | 195 | 180×330×52 | EYE | 15 |
| VCFH44 | 44 | 300 | 214 | 180×330×52 | EYE | 37 |
| VCFH46 | 46 | 327 | 234 | 180×330×56 | EYE | 37 |
| VCFH48 | 48 | 356 | 254 | 180×330×56 | EYE | 37 |
| VCFH50 | 50 | 388 | 277 | 180×330×56 | EYE | 37 |
| VCFH52 | 52 | 419 | 299 | 210×410×62 | EYE | 37 |
| VCFH54 | 54 | 451 | 322 | 210×410×62 | EYE | 37 |
| VCFH56 | 56 | 485 | 347 | 210×410×62 | EYE | 37 |
| VCFH58 | 58 | 521 | 372 | 210×410×68 | EYE | 37 |
| VCFH60 | 60 | 558 | 398 | 210×410×68 | EYE | 37 |
