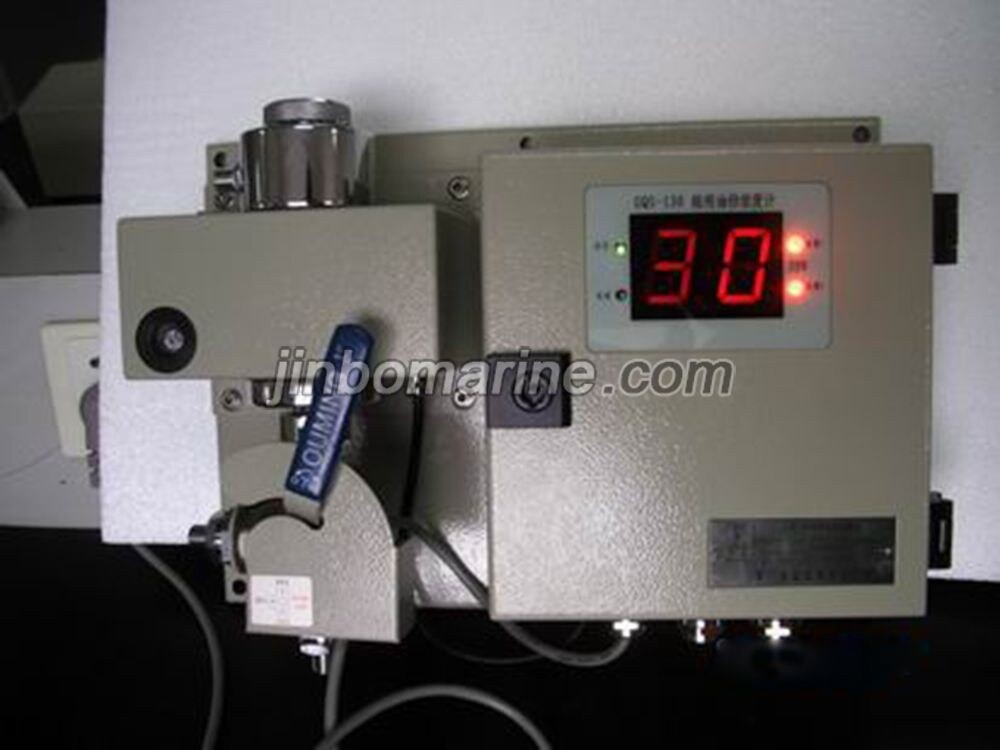

GQS-130 15ppm Bilge Alarm System
Description: GQS - 130 15ppm Bilge Alarm System, which is designed by using the principle of infrared measurement technology and advanced micro - processing technology, is generally...
GQS-130 15ppm Bilge Alarm System
PDF Datasheet
We can supply according to your requirement.
Description:
GQS - 130 15ppm Bilge Alarm System, which is designed by using the principle of infrared measurement technology and advanced micro - processing technology, is generally used with the oil-water separator. The structure of the instrument is reasonable and reliable, and the protection level is IP65. This product is suitable for the detection and monitoring of land oily sewage such as ports, wharfs, oil fields, factories and mines.
Main performance indicators:
Measuring range: 030ppm
Alarm setting: 15ppm
Measurement accuracy: 15 + 5ppm
Response time: less than 5 sec
Display mode: LED display
Power: 110V/220 V 50/60 Hz
Power consumption: about 15VA
Relay carrying capacity:
Maximum switching voltage: 250VAC/30VDC;
Maximum switching current: 3A
Analog signal output: 4-20mA
Alarm point 1 delay time: 5S
Alarm point 2 delay time: 10s
Sample pressure: 0.010.8MPa
Sample flow: 0.14L/min
Ambient temperature: 1-55 degrees
Protection level: IP65
Size: 360mm x 260mm x 150mm
Weight: about 9 kg
