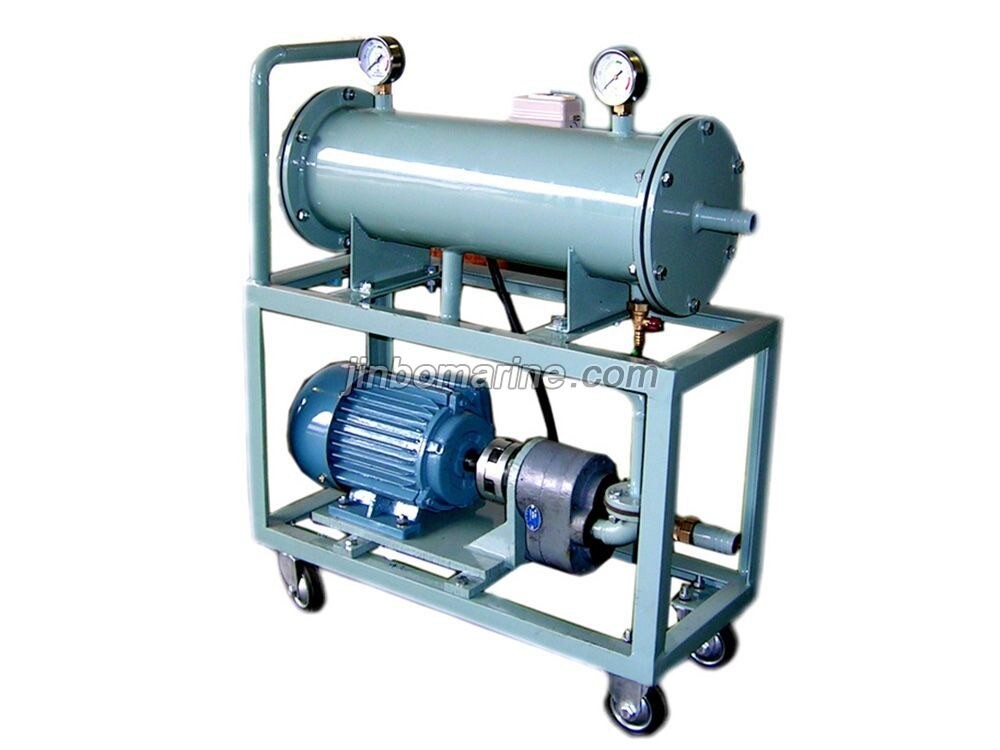

JL Series Portable Filtering Oil Filling Machine
JL series light portable filter: Mainly used for various types of oil, lubricating oil, mechanical oil, hydraulic oil, insulating oil and other mechanical impurities in the precisi...
JL Series Portable Filtering Oil Filling Machine
PDF Datasheet
We can supply according to your requirement.
China JL Series Portable Filtering Oil Filling Machine:
JL series light portable filter:
Mainly used for various types of oil, lubricating oil, mechanical oil, hydraulic oil, insulating oil and other mechanical impurities in the precision filter, but also long-distance, high lift refueling, oil use.
Technical features:
The utility model has the advantages of three steps of filtering, portability, flexibility, convenient operation, no filter paper and no pollution. The utility model has the advantages of wide application range and long service life, and is the replacement product of the plate and frame pressure filter.
Technical data:
| Model | Flow Rate (L/min) | Head (m) | Filtration precision μm | Power (KW) | Power Source | Weight (Kg) |
| JL-32 | 32 | 20 | 5 | 1.1 | 3P 50Hz、380v | 60 |
| JL-50 | 50 | 20 | 1.1 | 70 | ||
| JL-80 | 80 | 20 | 2.2 | 135 | ||
| JL-100 | 100 | 20 | 2.2 | 150 | ||
| JL-150 | 150 | 20 | 3 | 180 | ||
| JL-200 | 200 | 20 | 4 | 220 | ||
| JL-300 | 300 | 20 | 4 | 250 |
