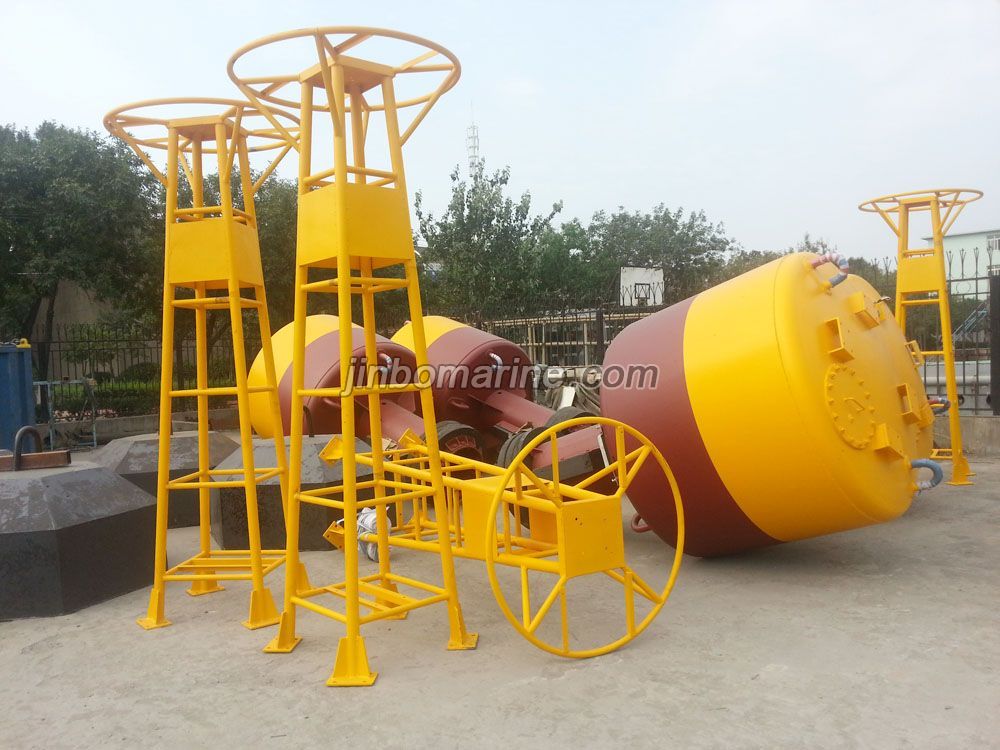

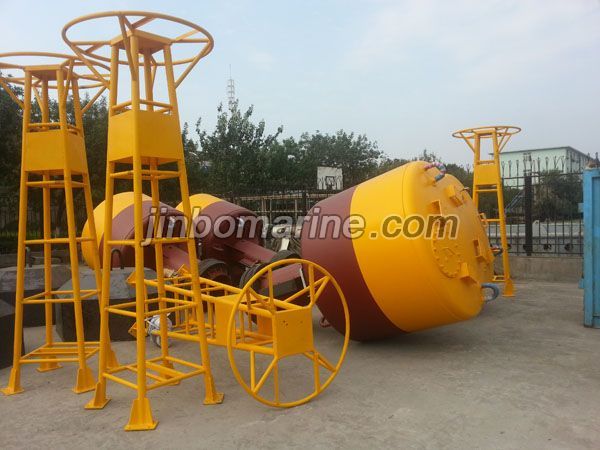

HF Skirt Keel Lightbuoy
HF Skirt Keel Lightbuoy(in mm) Type Diameter(mm) Height of Superstructure Focal Height Lan...
Loading product images...
PDF Datasheet
HF Skirt Keel Lightbuoy(in mm)
| Type | Diameter(mm) | Height of Superstructure | Focal Height | Lantern | Power Source | Draft | Water Depth(m) | Weight |
| HF1.5-D2 | 1500 | 3204 | 1620 | 155mm | Optional | 1100 | <10 | 1530kg |
| HF1.8-D2 | 1800 | 4270 | 2940 | 155mm | Optional | 1330 | <20 | 2410kg |
| HF2.4-D2 | 2400 | 5700 | 3980 | 155mm | Optional | 1720 | <30 | 5710kg |
| HF3.0-D2 | 3000 | 7000 | 4175 | 155mm | Optional | 1650 | <40 | 5000kg |
Table of chains for Tube Lightbuoy
| Type | Bridle Chain | Main Chain | End Shackle | Short Chain | Joining Shackle | Sinker Weight(T) |
| HF1.5-D2 | Φ22mmx2.76m 1Length | Φ22mmx27.5m 1Length | Φ32 4pcs | Φ22mmx4.5m 1Length | Φ22 1pcs | 1.5 |
| HF1.8-D2 | Φ28mmx2.77m 1Length | Φ28mmx27.5m 1Length | Φ39 4pcs | Φ28mmx4.5m 1Length | Φ28 1pcs | 2 |
| HF2.4-D2 | Φ34mmx5.26m 1Length | Φ34mmx27.5m 1Length | Φ48 4pcs | Φ34mmx4.5m 1Length | Φ34 1pcs | 3 |
| HF3.0-D2 | Φ37mmx5.24m 1Length | Φ37mmx27.5m 1Length | Φ52 4pcs | Φ37mmx4.5m 1Length | Φ37 1pcs | 4 |
