HF Tail Tube Lightbuoys

HF Tail Tube Lightbuoys(in mm) Type Diameter (mm) Height of Superstruture Focal Height Re...

Navigation Buoy1 Photos ISO9001 Supplier
HF Tail Tube Lightbuoys thumbnail 1

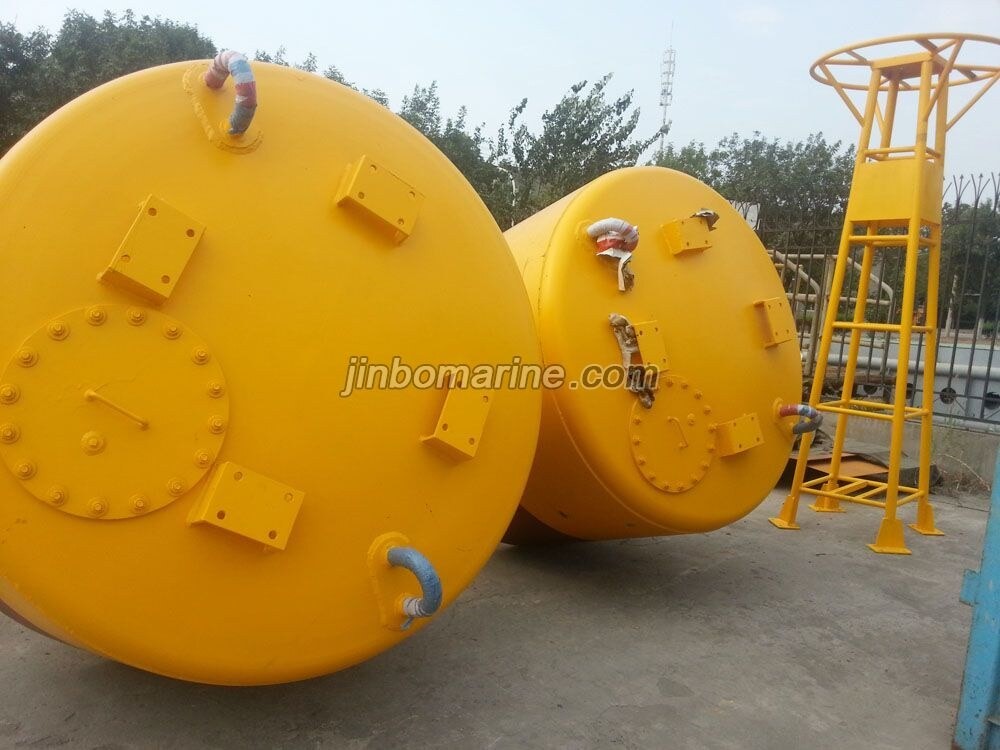

HF Tail Tube Lightbuoys

Category: Navigation Buoy
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote PDF Datasheet

We can supply according to your requirement.

HF Tail Tube Lightbuoys(in mm)

Type Diameter
(mm) 		Height of Superstruture Focal Height Recommend Lantern Power Source Draft
(M) 		Water Depth
(M) 		Weight
(kg)
HF1.5-D1 1500 2350 3463 155mm Optional 2149 3.5-15 1250
HF1.8-D1 1800 2350 3388 155mm Optional 2140 6-15 1970
HF2.4-D1 2400 3040 4228 155mm Optional 4050 13-40 5200
HF3.0-D1 3000 3450 4750 155mm Optional 3480 13-40 5800
HF3.6-D1 3600 3450 4988/5127 155mm/300mm Optional 3000 13-60 6500

Table of chains for Tube Lightbuoy

Type Bridle Chain Main Chain End Shackle Short Chain Joining Shackle Sinker Weight(T)
HF1.5-D1 Φ22mmx2.76m
1Length 		Φ22mmx27.5m
1Length 		Φ32 4pcs Φ22mmx4.5m
1Length 		Φ22 1pcs 1.5
HF1.8-D1 Φ28mmx2.77m
1Length 		Φ28mmx27.5m
1Length 		Φ39 4pcs Φ28mmx4.5m
1Length 		Φ28 1pcs 2
HF2.4-D1 Φ34mmx5.26m
1Length 		Φ34mmx27.5m
1Length 		Φ48 4pcs Φ34mmx4.5m
1Length 		Φ34 1pcs 3
HF3.0-D1 Φ37mmx5.24m
1Length 		Φ37mmx27.5m
1Length 		Φ52 4pcs Φ37mmx4.5m
1Length 		Φ37 1pcs 4
HF3.6-D1 Φ40mmx5.24m
1Length 		Φ40mmx27.5m
1Length 		Φ56 4pcs Φ40mmx4.5m
1Length 		Φ40 1pcs 5
