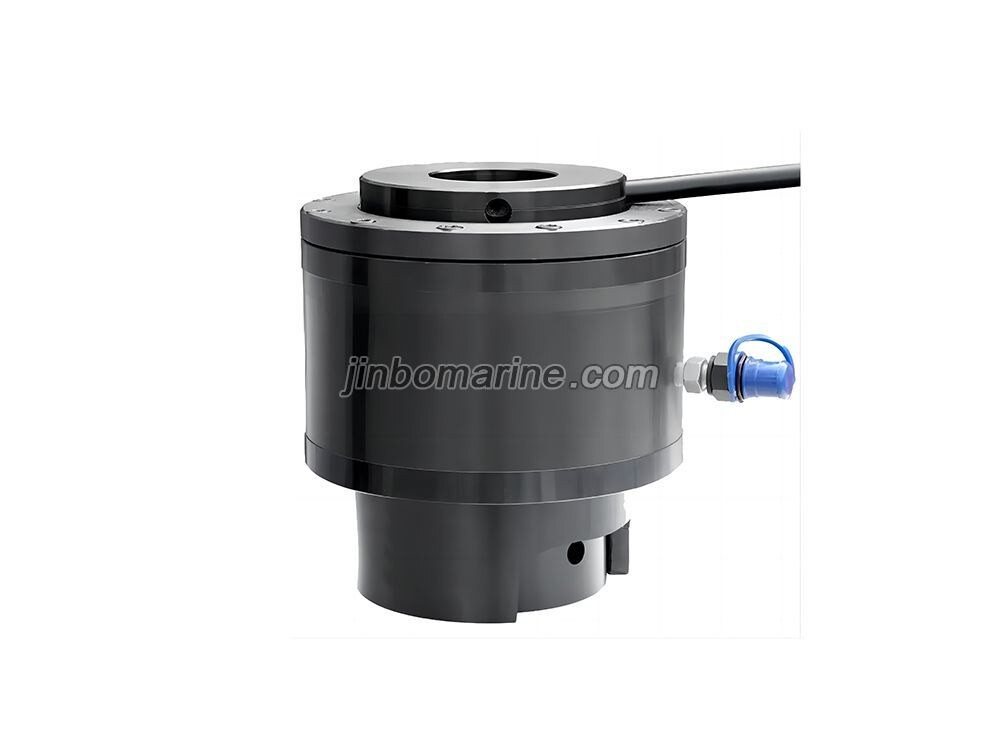

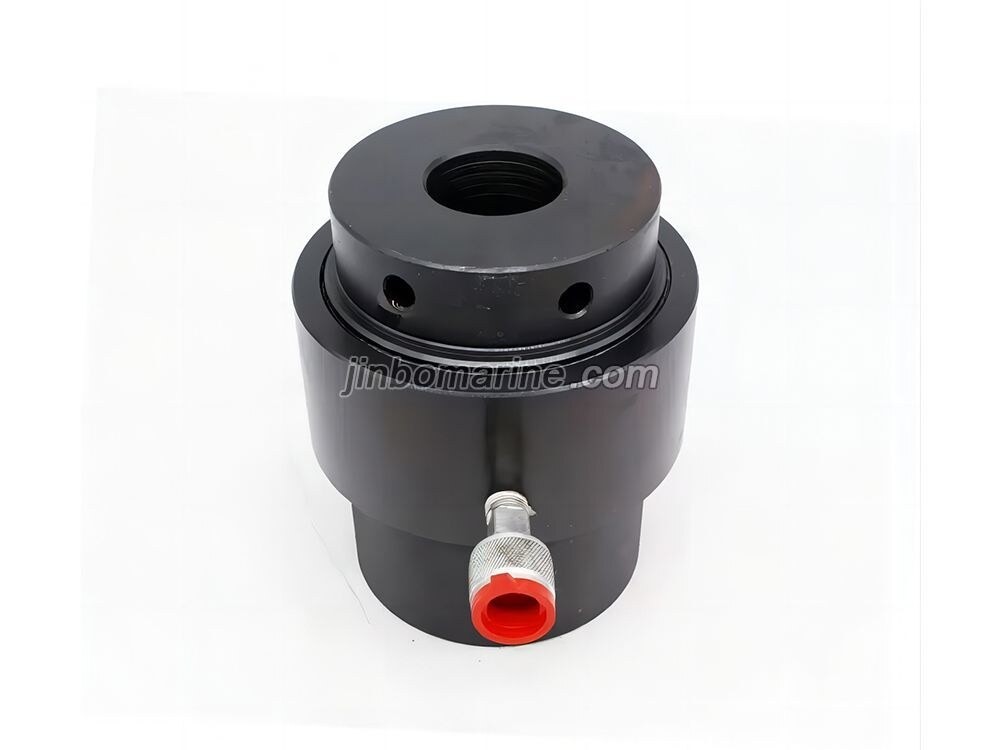

HLD030 Series Hydraulic Jack
HLD Series Hydraulic Jack Interchangeable Hydraulic Tensioner
Strong versatility, suitable for stretching multiple specifications of bolts by replacing the stretching head.
Economically efficient, lightweight, and highly accurate. Can be equipped with manual pumps and pneumatic hydraulic pumps. Multiple stretchers can be used simultaneously. The standard working pressure is 150Mpa.
Techincal data:

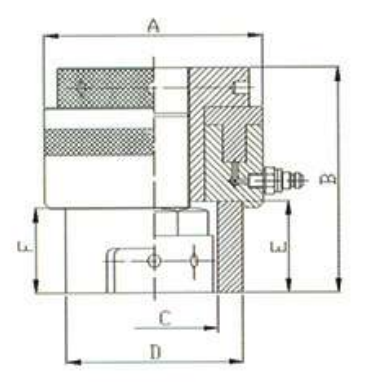

| Model | Thread specification(mm) | Maximum tensile force (KN) | Dimension(mm) | Distance of run | ||||||
| M | Inch | A | B | 0 | D | E | F | (mm) | ||
| HLD024 | M24 | 1 | 223 | 86 | 110 | 46 | 69 | 29 | 24 | 10 |
| HLD027 | M27 | 1-1/8 | 223 | 86 | 110 | 52 | 76 | 29 | 27 | 10 |
| HLD030 | M30 | 1-1/8 | 401 | 110 | 130 | 57 | 80 | 37 | 30 | 10 |
| HLD033 | M33 | 1-1/4 | 401 | 110 | 130 | 62 | 85 | 37 | 33 | 10 |
| HLD036 | M36 | 1-3/8 | 401 | 110 | 130 | 68 | 91 | 38 | 36 | 10 |
| HLD039 | M39 | 1-1/2 | 401 | 110 | 130 | 75 | 93 | 41 | 39 | 10 |
| HLD042 | M42 | 1-5/8 | 769 | 130 | 150 | 80 | 100 | 49 | 42 | 10 |
| HLD045 | M45 | 1-3/4 | 769 | 130 | 150 | 85 | 110 | 50 | 45 | 10 |
| HLD048 | M48 | 1-7/8 | 769 | 130 | 150 | 92 | 110 | 51 | 48 | 10 |
| HLD052 | M52 | 2 | 769 | 130 | 150 | 96 | 112 | 52 | 52 | 10 |
| HLD056 | M56 | 2-1/4 | 1467 | 170 | 170 | 100 | 113 | 62 | 56 | 10 |
| HLD060 | M60 | 2-3/8 | 1467 | 170 | 170 | 100 | 114 | 63 | 60 | 10 |
| HLD064 | M64 | 2-1/2 | 1467 | 170 | 170 | 110 | 115 | 64 | 64 | 10 |
| HLD068 | M68 | 2~3/4 | 1467 | 170 | 170 | 120 | 115 | 65 | 68 | 10 |
| HLD072 | M72 | 2-1/2 | 2262 | 210 | 190 | 120 | 115 | 73 | 72 | 10 |
| HLD076 | M76 | 2-3/4 | 2262 | 210 | 190 | 130 | 117 | 75 | 76 | 10 |
| HLD080 | M80 | 3-1/4 | 2262 | 210 | 190 | 130 | 117 | 77 | 80 | 10 |
| HLD085 | M85 | 3-3/8 | 2486 | 240 | 190 | 140 | 150 | 78 | 85 | 12 |
| HLD090 | M90 | 3-1/2 | 2486 | 240 | 200 | 150 | 170 | 80 | 90 | 12 |
| HLD095 | M95 | 3-3/4 | 2486 | 240 | 200 | 160 | 170 | 85 | 95 | 12 |
| HLD100 | M1.00 | 4 | 3958 | 270 | 210 | 170 | 180 | 92 | 100 | 12 |
