HP Diesel Engine SL200-SL830A Heat Exchanger
PARAMETER\TYPE A B C D E F DIAMETER ...
Loading product images...
HP Diesel Engine SL200-SL830A Heat Exchanger
PDF Datasheet
We can supply according to your requirement.
China HP Diesel Engine SL200-SL830A Heat Exchanger:

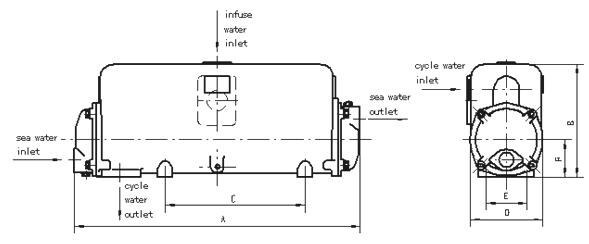

| PARAMETER\TYPE | A | B | C | D | E | F | DIAMETER | DIAMETER | AREA OF | SCOPE |
| OF FRESH | OF SEA | COOLING m2 | APPLICABLE | |||||||
| mm | mm | mm | mm | mm | mm | WATER | WATER | (FOR REFERENCE) | ||
| SL-200 | 467 | 219 | 200 | 140 | 75 | 76 | 2" | 11/4" | 0.62 | 70&70HP under |
| diesel engine | ||||||||||
| SL-300 | 598 | 280 | 200 | 174 | 102 | 93 | 2" | 11/2" | 1.3 | 70-108HP diesel engine |
| SL-400 | 714 | 280 | 346 | 174 | 102 | 93 | 2" | 11/2" | 1.61 | 150-240HP diesel engine |
| SL-500 | 854 | 280 | 422 | 174 | 102 | 93 | 2" | 11/2" | 2 | 240-400HP diesel engine |
| SL-600 | 714 | 366 | 346 | 228 | 130 | 128 | 2 3/8" | 2" | 1.91 | 290-400HP diesel engine |
| SL-700 | 714 | 366 | 346 | 228 | 130 | 128 | 2 3/8" | 2" | 3.5 | 450-600HP diesel engine |
| SL-830A | 854 | 366 | 428 | 228 | 130 | 128 | 3" | 2" | 4.3 | 600-800HP diesel engine |
