Hammer Union Figure 207
High Pressure Union is made of forged high strength alloy steel. The strict heat treatment ensures the union with uniform microstructure and pressure capacity. The material is in full compli...
PDF Datasheet

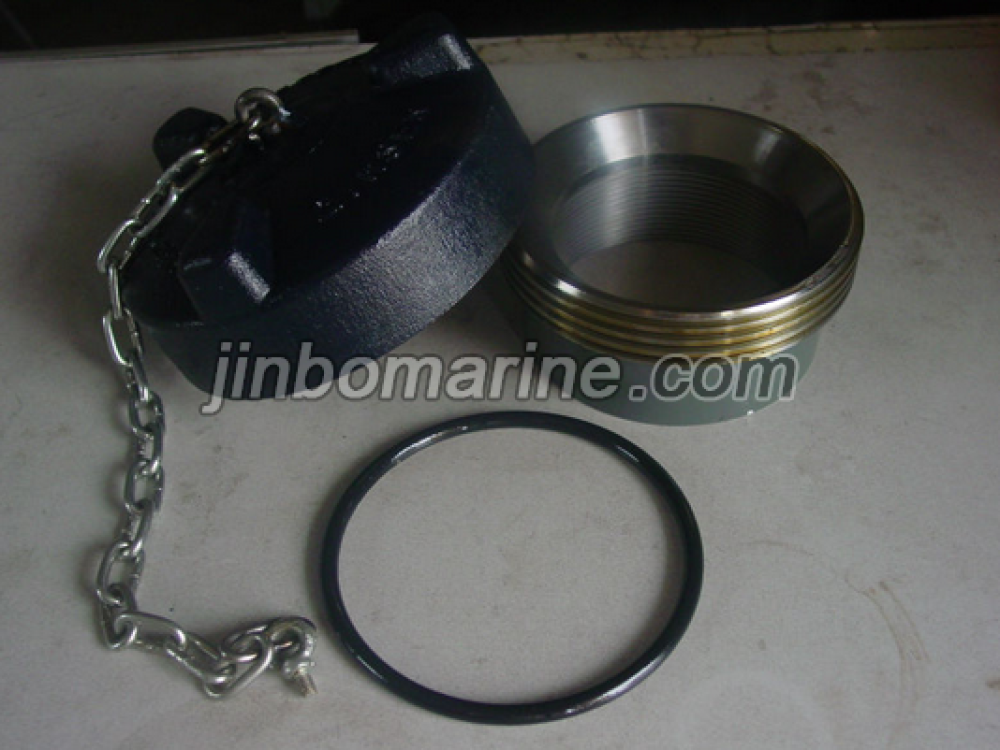

China Hammer Union Figure 207:
High Pressure Union is made of forged high strength alloy steel. The strict heat treatment ensures the union with uniform microstructure and pressure capacity. The material is in full compliance with the ASTM, AISI standard, technical specification of the product comforms to API Spec 6A standards. The goods is with the features, reliable sealing, fast loading and unloading, good exchangeability. The pipeline joint thread, tubing thread, butt type or non pressure seal end connection are available for the product joint.
Features for Figure 207 Hammer Union:
1.2000PSI NSCWP, test pressure: 3000PSI
2.Parts are interchangeable with Figs. 200 and 206
3.NBR O-ring on blanking cap ensures a leak-free seal
4.Raised lugs on cap allow for make-up with a hammer
5.Available in butt-weld Sch.40
6.Cap can be tapped for pressure guage if specified.
Recommened Service for Fig 207:
To seal manifold connectins and protect union threads in the pipeline with medium water,air, oil and gas.
Main Size List:
| Nominal Pipe Size | Length | Nut Radius | Material | Weight | |||||
| Nut | Sub | ||||||||
| in | mm | in | mm | in | mm | Ibs | kgs | ||
| 3 | 76.2 | 3-3/4 | 95.25 | 2-7/8 | 73.03 | SC | SF | 9.8 | 4.45 |
| 4 | 101.6 | 4-5/16 | 109.54 | 3-19/32 | 91.28 | SC | SF | 16.25 | 7.37 |
| 6 | 152.4 | 5-13/16 | 147.64 | 4-31/32 | 126.2 | SC | SF | 38.0 | 17.24 |
SC-Cast Steel
SF-Forged Steel
