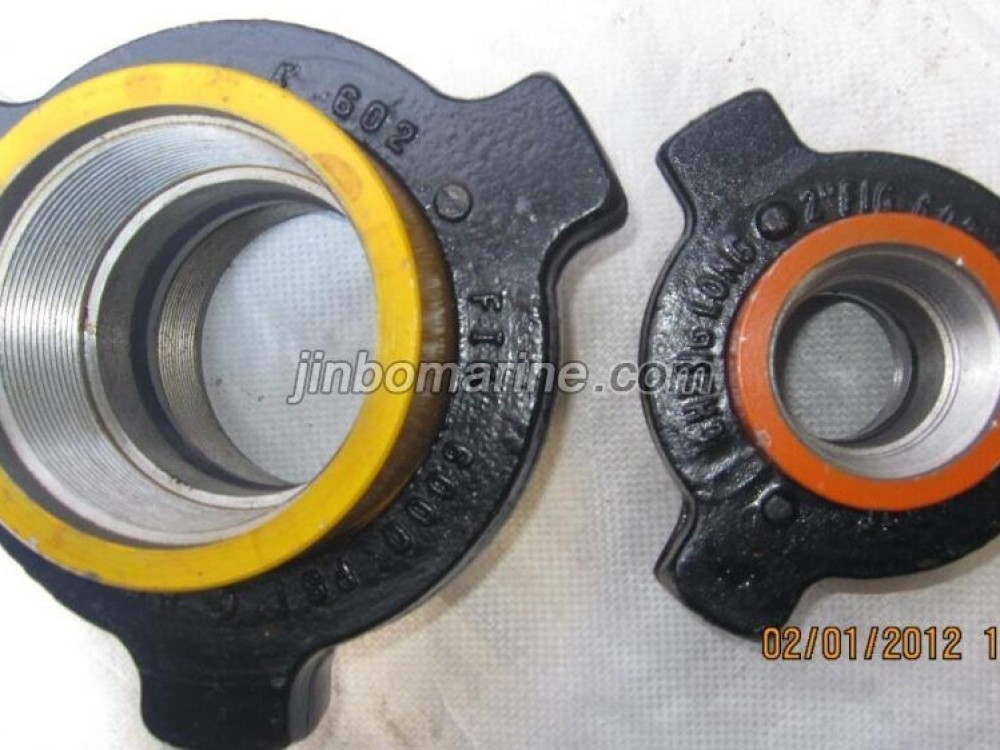

Hammer Union Figure 602
High Pressure Union is made of forged high strength alloy steel. The strict heat treatment ensures the union with uniform microstructure and pressure capacity. The material is in full compli...
PDF Datasheet
China Hammer Union Figure 602:
High Pressure Union is made of forged high strength alloy steel. The strict heat treatment ensures the union with uniform microstructure and pressure capacity. The material is in full compliance with the ASTM, AISI standard, technical specification of the product comforms to API Spec 6A standards. The goods is with the features, reliable sealing, fast loading and unloading, good exchangeability. The pipeline joint thread, tubing thread, butt type or non pressure seal end connection are available for the product joint.
Features for Figure 602 Hammer Union:
1.6000PSI NSCWP, test pressure: 9000PSI
2. Compact
3.Replacebale, lip-type seal provides primary seal, protects secondary metal-to-metal seal, and minimizes flow turbulence
4. Butt-welded available for Sch 80.
5. Available for sour gas service.
Recommened Service for Fig 602:
Manifold and line connections and mud service
Main Size List:
| Nominal Pipe Size | Length | Countersink | Nut Radius | Material | Weight | ||||||
| Nut | Parts | ||||||||||
| in | mm | in | mm | in | mm | in | mm | Ibs | kgs | ||
| 1 | 25.4 | 3-17/32 | 89.7 | 1/4 | 6.4 | 2-5/16 | 58.75 | SF | SF | 3.5 | 1.6 |
| 2 | 50.8 | 5-1/4 | 133.3 | 1/4 | 6.4 | 3-9/16 | 90.5 | SF | SF | 13.25 | 5.9 |
| 3 | 76.2 | 6-3/8 | 161.92 | 3/8 | 9.5 | 4-5/8 | 117.5 | SF | SF | 21.0 | 9.5 |
| 4 | 101.6 | 8-1/16 | 208.0 | 3/8 | 9.5 | 5-1/4 | 133.4 | SF | SF | 33.0 | 15.0 |
SF-Forged Steel
