High Power Hydraulic Torque Wrench
High Power Hydraulic Torque Wrench Hydraulic torque wrench is an ideal tool to help you install and remove bolts and nuts, and at the same time can control the tightening to...
Loading product images...
High Power Hydraulic Torque Wrench
PDF Datasheet
We can supply according to your requirement.
China High Power Hydraulic Torque Wrench:

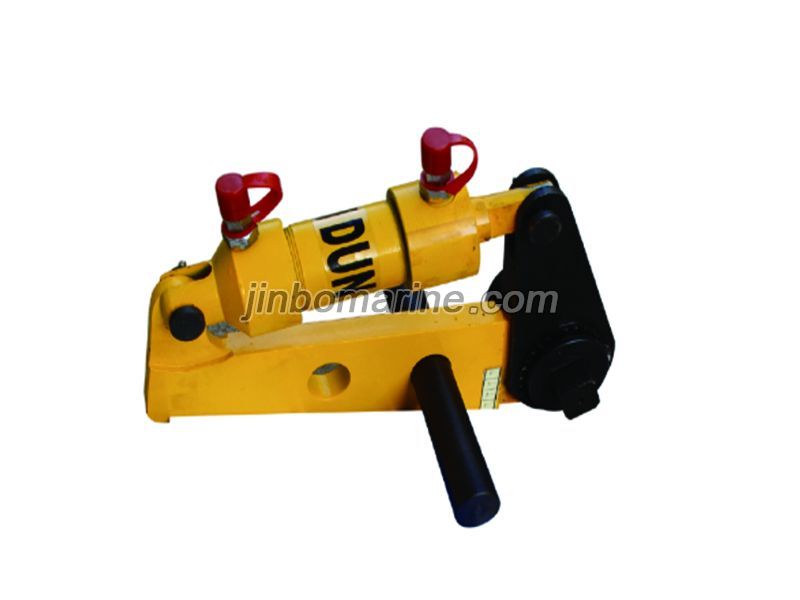

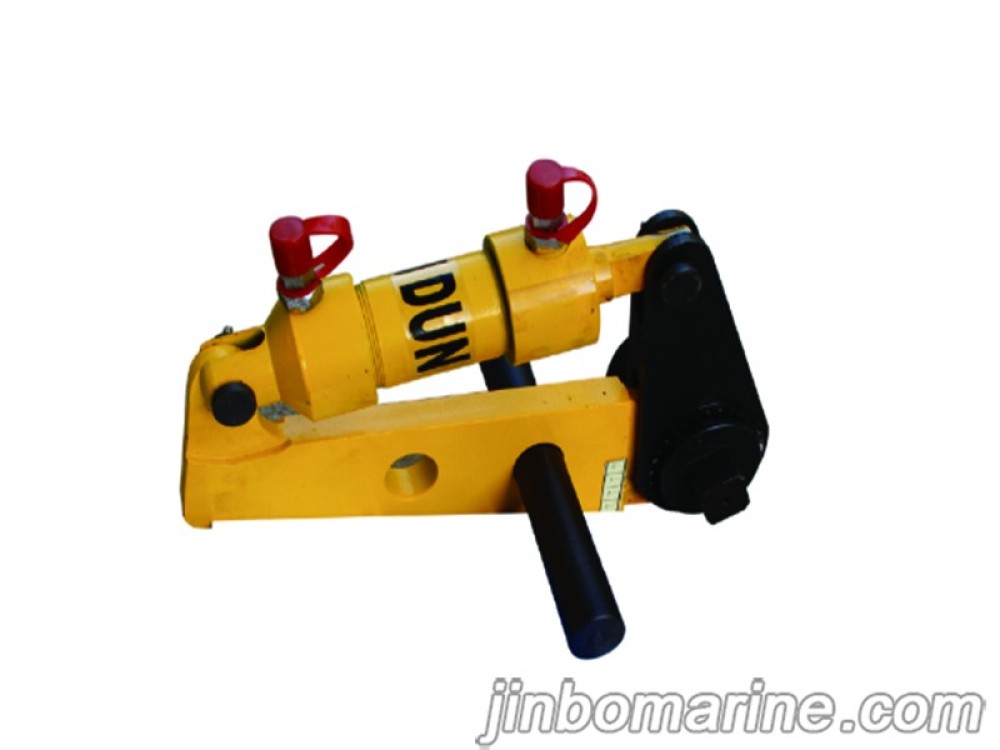

High Power Hydraulic Torque Wrench
Hydraulic torque wrench is an ideal tool to help you install and remove bolts and nuts, and at the same time can control the tightening torque more accurately.Installation and disassembly maintenance can quickly and easily complete your bolt assembly and disassembly tasks, while effectively ensuring the torque value you need.
| Model | MPa Cylinder max. pressure | mm Cylinder diameter | N.m Max. working torque | Hydraulic cylinder stroke sleeve angle | Applicable thread range of wrench (coarse thread) | ||||||
| NJS-1 | 63 | 40 | 9954 | 36° | M20-M30 | ||||||
| NJS-2 | 63 | 45 | 12600 | 36 ° | M30-M48 | ||||||
| NJS－3 | 63 | 45 | 14868 | 34° | M48-M56 | ||||||
| NJS-4 | 63 | 65 | 41391 | 34° | M64-M80 | ||||||
| NJS-5 | 63 | 65 | 41391 | 30° | M90-M100 | ||||||
