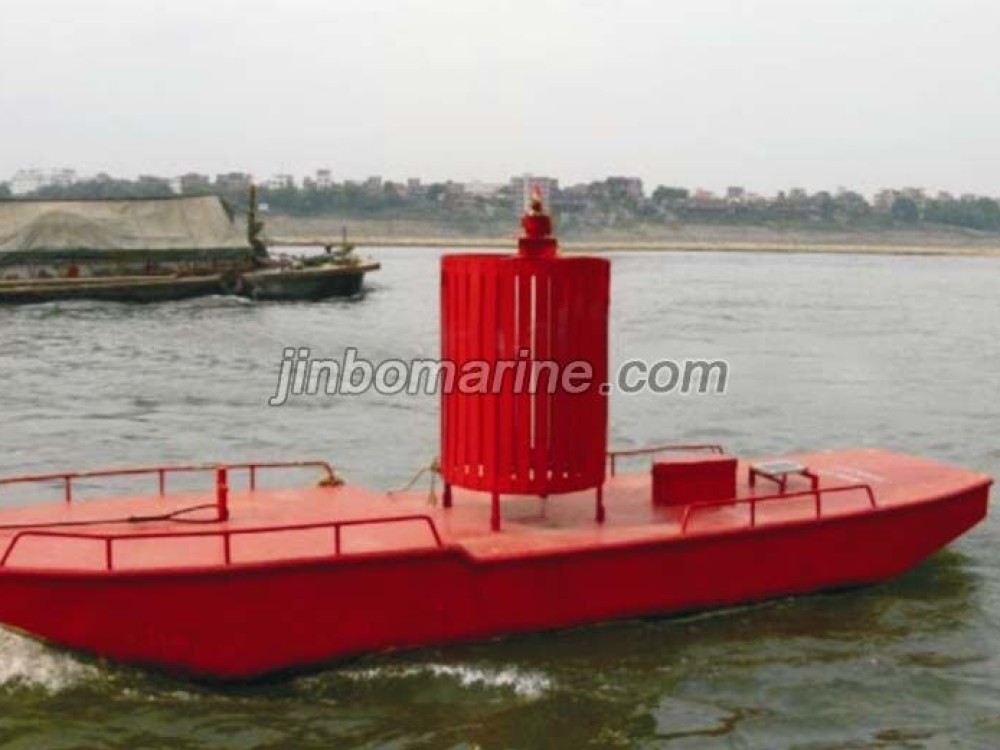

Inland Steel Boat Buoy
Function: A kind of inland water navigation buoy,the buoyancy is a steel boat,according to different needs,it can install various navigation marks to meets different function. Ap...
PDF Datasheet
Function:
A kind of inland water navigation buoy,the buoyancy is a steel boat,according to different needs,it can install various navigation marks to meets different function.
Applicable area:
Inland river,lake,large reservoirs and other territorial waters with channel
| Model No. | Total Length(m) | Total Height(m) | Width (m) | Boat Depth(m) | Draught (m) | Boat Weight(without mark/buoy)(kg) |
| HF4.0-B1 | 4.0 | 1.51 | 1.30 | 0.53 | 0.15 | 430 |
| HF6.7-B1 | 6.7 | 1.88 | 1.60 | 0.60 | 0.20 | 1017 |
| HF10.0-B1 | 10.0 | 2.83 | 2.80 | 1.00 | 0.30 | 3520 |
| HF4.0-S1 | 4.0 | 2.65 | 2.31 | 0.90 | 0.55 | 1180 |
