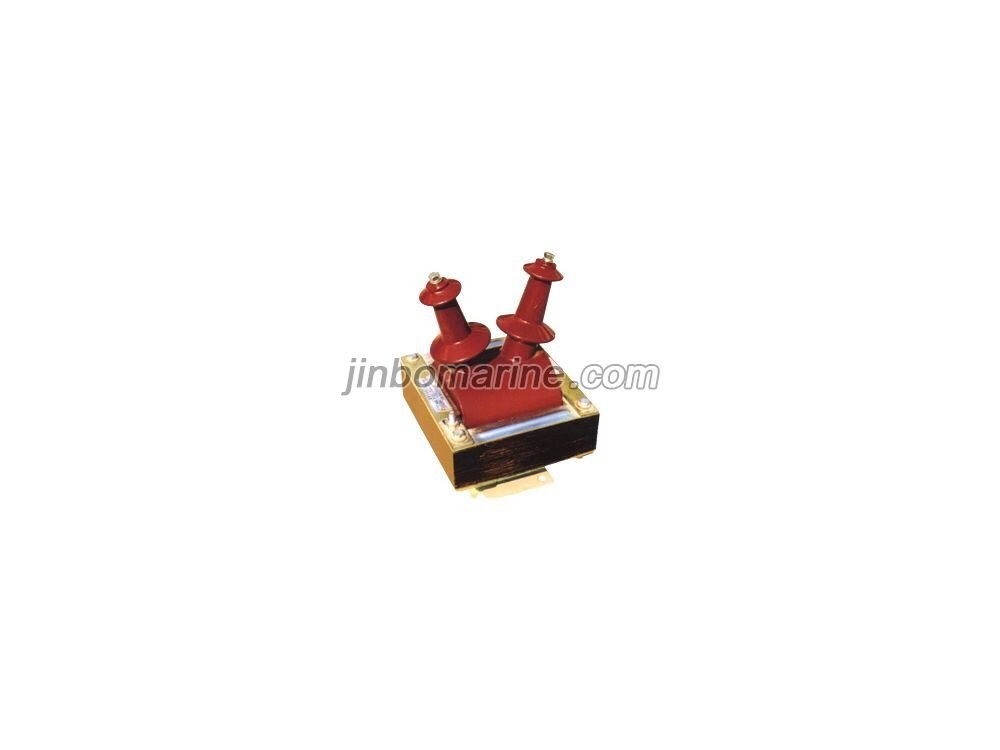

JDZ-6 Voltage Transformer
JDZ-6 Voltage Transformer The product complies with standards GB1207 and IEC186 JDZ-6 Voltage Transformer Drawing JDZ-6 Voltage Transformer Parameters ...
Loading product images...
JDZ-6 Voltage Transformer
PDF Datasheet
We can supply according to your requirement.
JDZ-6 Voltage Transformer
The product complies with standards GB1207 and IEC186

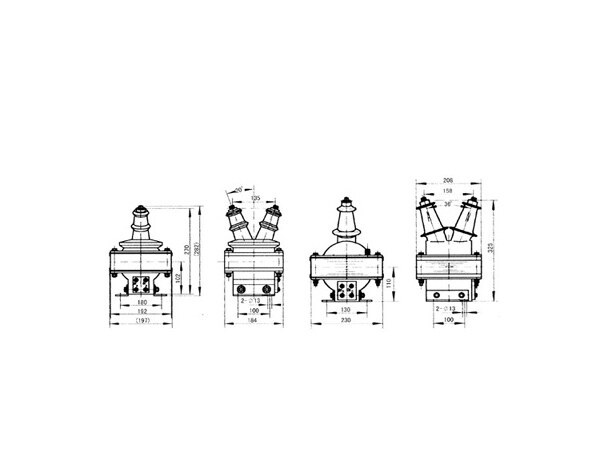

JDZ-6 Voltage Transformer Drawing
JDZ-6 Voltage Transformer Parameters
| Model | Rated Voltage Ratio/V | Rated Frequency/Hz |
| JDZ-3 | 1000/100 2000/100 3000/100 | 50,60 |
| JDZ-6 | 6000/100 | |
| JDZ-10 | 10000/100 10000/100/100 | |
| JDZJ-3 | 2000/√3/100/√3/100/3 3000/√3/100/√3/100/3 | |
| JDZJ-6 | 6000/√3/100/√3/100/3 | |
| JDZJ-10 | 10000/√3/100/√3/100/3 | |
| Model | Rated Output/VA | Ultimate Output /VA | ||||
| 0.2 grade | 0.5 grade | 1 grade | 3 grade | 6P grade | ||
| JDZ-3 | / | 30 | 50 | 80 | / | 200 |
| JDZ-6 | / | 50 | 80 | 200 | / | 400 |
| JDZ-10 | / | 80 | 150 | 300 | / | 500 |
| 40 | / | / | / | / | 200 | |
| 25 | 50 | / | / | / | 200 | |
| JDZJ-3 | / | 30 | 50 | 80 | 50 | 200 |
| JDZJ-6 | / | 50 | 80 | 200 | 50 | 400 |
| JDZJ-10 | / | 50 | 80 | 200 | 50 | 400 |
| 20 | / | / | / | 50 | 200 | |
