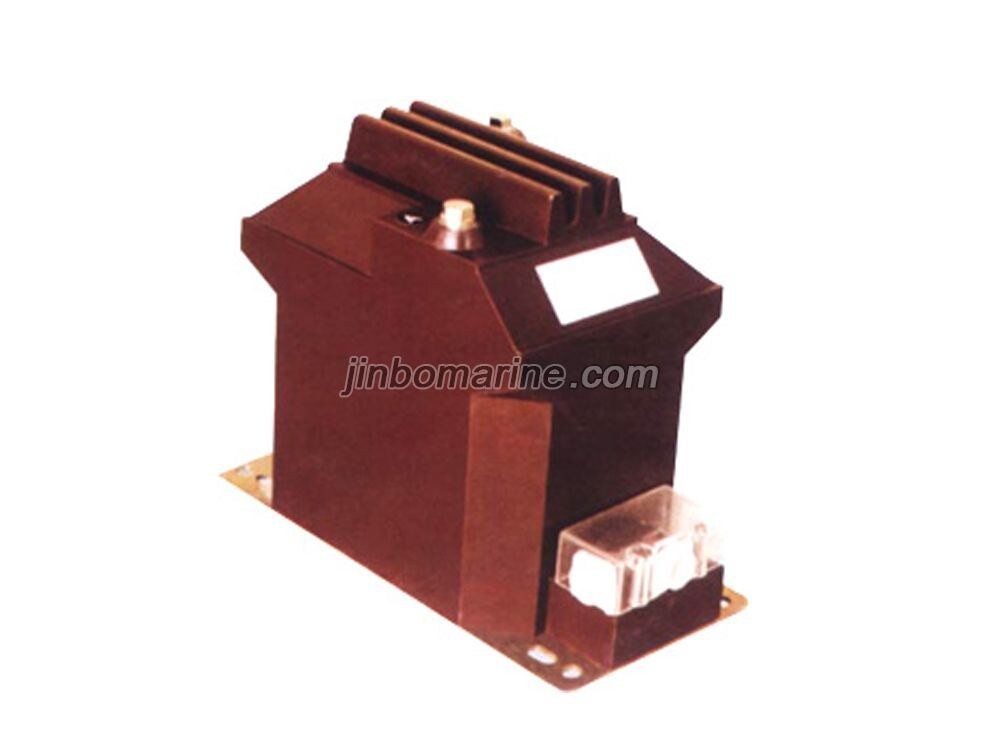

JDZX10-10B1 Voltage Transformer

1. The product complies with standards GB1207 and IEC186
2. This series of products includes three voltage transformers: JDZ10-3B, 6B1, 10B1, JDZX10-3B1, 6B1, 10B1, JDZX10-3B, 6B, 10B

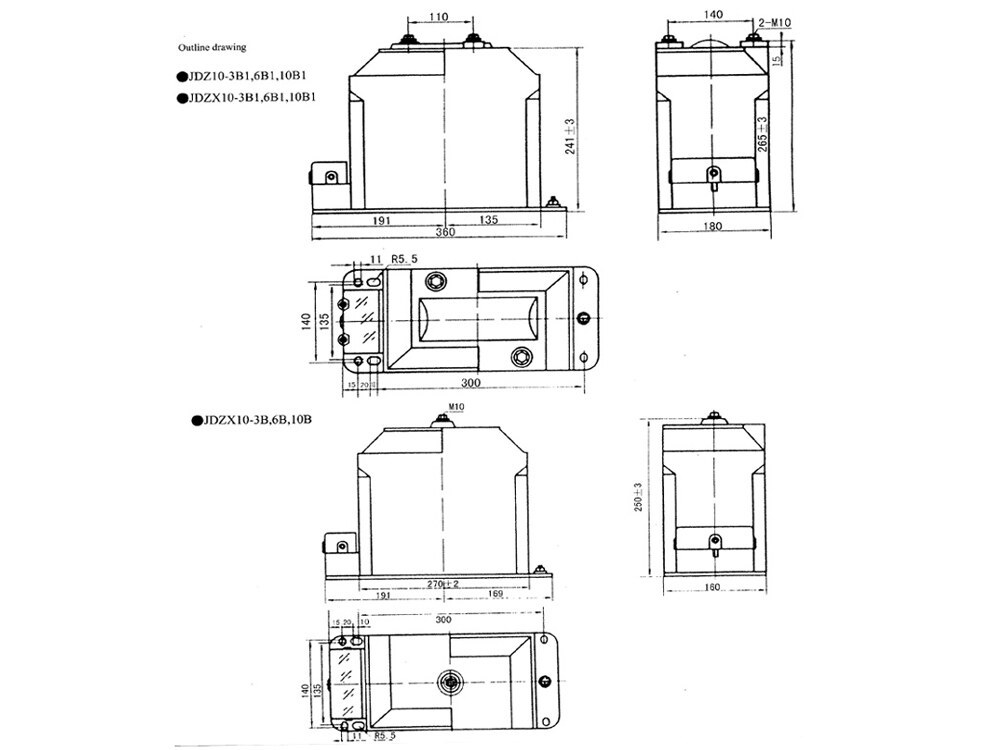

JDZX10-10B1 Voltage Transformer Drawing

Model	Rated Voltage Ratio/V	Rated Frequency/Hz	Rated Output/VA				Rated Insulation Level/KV
Model	Rated Voltage Ratio/V	Rated Frequency/Hz	0.2 grade	0.5 grade	1 grade	6P grade	Rated Insulation Level/KV
JDZ10-3B1	3000/100	50.6	25	50	90	3.6/25/40
JDZ10-6B1	6000/100		25	50	90	7.2/32/60
JDZ10-10B1	10000/100		25	50	90	12/42/75
JDZX10-3B1	3000/√3/100/√3/100/3		/	50	90	50	3.6/25/40
JDZX10-6B1	6000/√3/100/√3/100/3		/	50	90	50	7.2/32/60
JDZX10-10B1	10000/√3/100/√3/100/3		/	50	90	50	12/42/75
JDZX10-3B	3000/√3/100/√3/100/3		25	50	90	50	3.6/25/40
JDZX10-6B	6000/√3/100/√3/100/3		25	50	90	50	7.2/32/60
JDZX10-10B	10000/√3/100/√3/100/3		25	50	90	50	12/42/75
