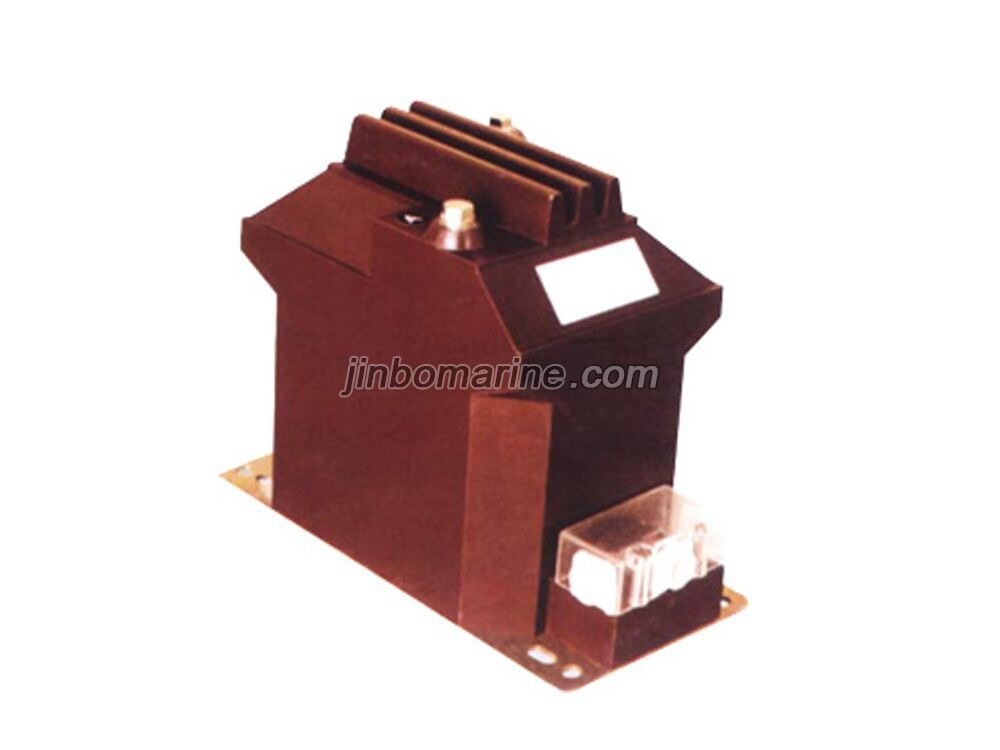

JDZX10-3B Voltage Transformer
PDF Datasheet
We can supply according to your requirement.
JDZX10-3B Voltage Transformer
1. The product complies with standards GB1207 and IEC186
2. This series of products includes three voltage transformers: JDZ10-3B, 6B1, 10B1, JDZX10-3B1, 6B1, 10B1, JDZX10-3B, 6B, 10B

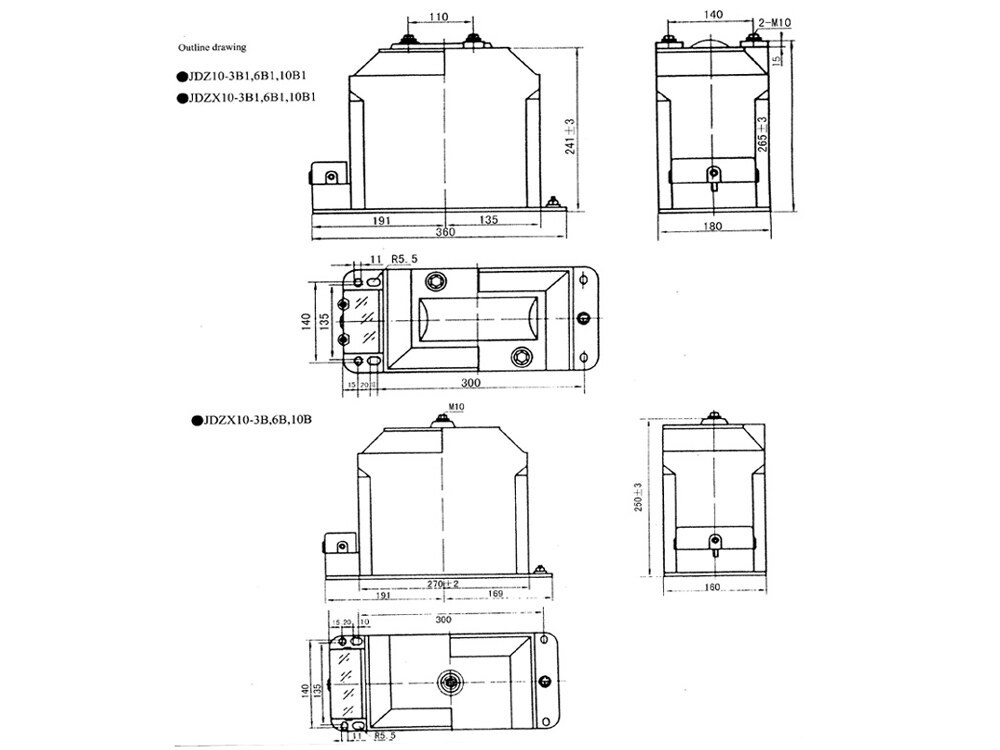

JDZX10-3B Voltage Transformer Drawing
JDZX10-3B Voltage Transformer Parameters
| Model | Rated Voltage Ratio/V | Rated Frequency/Hz | Rated Output/VA | Rated Insulation Level/KV | |||
| 0.2 grade | 0.5 grade | 1 grade | 6P grade | ||||
| JDZ10-3B1 | 3000/100 | 50.6 | 25 | 50 | 90 | 3.6/25/40 | |
| JDZ10-6B1 | 6000/100 | 25 | 50 | 90 | 7.2/32/60 | ||
| JDZ10-10B1 | 10000/100 | 25 | 50 | 90 | 12/42/75 | ||
| JDZX10-3B1 | 3000/√3/100/√3/100/3 | / | 50 | 90 | 50 | 3.6/25/40 | |
| JDZX10-6B1 | 6000/√3/100/√3/100/3 | / | 50 | 90 | 50 | 7.2/32/60 | |
| JDZX10-10B1 | 10000/√3/100/√3/100/3 | / | 50 | 90 | 50 | 12/42/75 | |
| JDZX10-3B | 3000/√3/100/√3/100/3 | 25 | 50 | 90 | 50 | 3.6/25/40 | |
| JDZX10-6B | 6000/√3/100/√3/100/3 | 25 | 50 | 90 | 50 | 7.2/32/60 | |
| JDZX10-10B | 10000/√3/100/√3/100/3 | 25 | 50 | 90 | 50 | 12/42/75 | |
