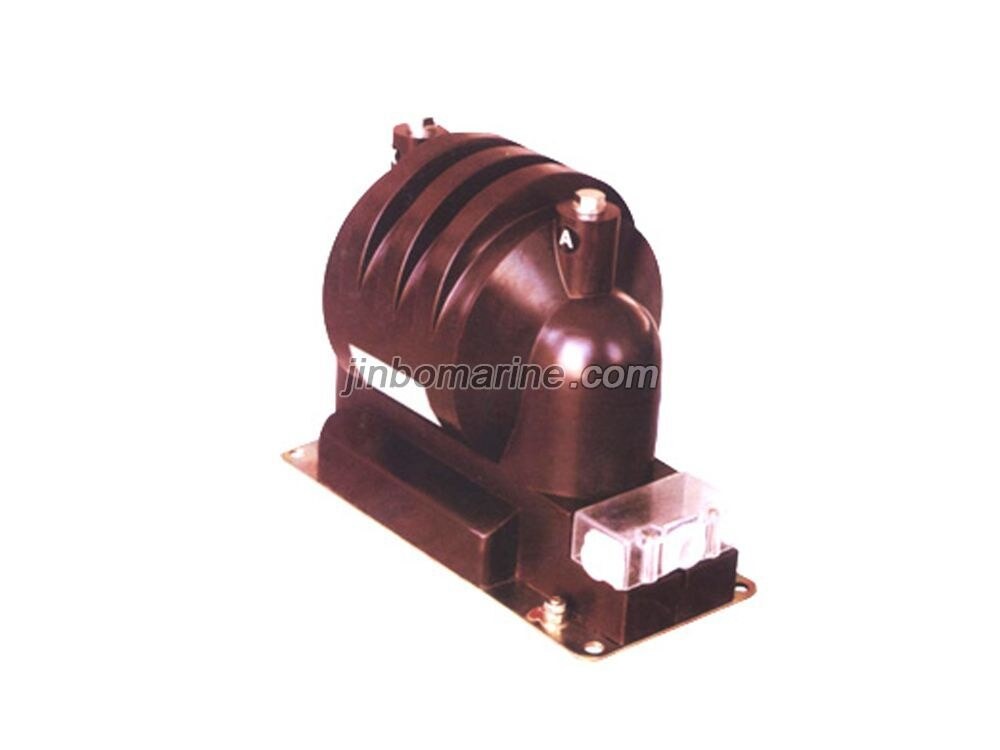

JDZX9-6G Voltage Transformer

Category: Marine Transformers

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

JDZX9-6G Voltage Transformer

The product complies with the standards GB1207 and IEC186

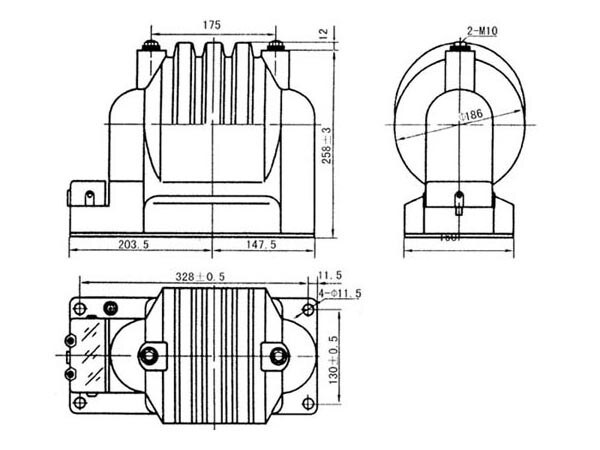

JDZX9-6G Voltage Transformer Drawing

JDZX9-6G Voltage Transformer Parameters

Model	Rated Frequency/Hz	Accuracy Combination	Rated Output/VA
JDZ9-3	50.6	0.2	40
		0.5	100
		1	200
		3	240
JDZ9-6	50.6	0.2	40
		0.5	100
		1	200
		3	240
JDZ9-10	50.6	0.2	40
		0.5	100
		1	200
		3	240
JDZX9-3G	50.6	0.5/6P	60/100
JDZX9-6G
JDZX9-10G

Model	Rated Voltage Ratio/V	Ultimate Output /VA	Rated Insulation Level/KV
JDZ9-3	3000/100	500	3.6/25/40



JDZ9-6	6000/100	500	7.2/32/60



JDZ9-10	10000/100	500	12/42/75



JDZX9-3G	3000/√3/100/√3/100/3	400	3.6/25/40
JDZX9-6G	6000/√3/100/√3/100/3		7.2/32/60
JDZX9-10G	10000/√3/100/√3/100/3		12/42/75
