Jaw Head Fittings

Category: Steel Cargo Block

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

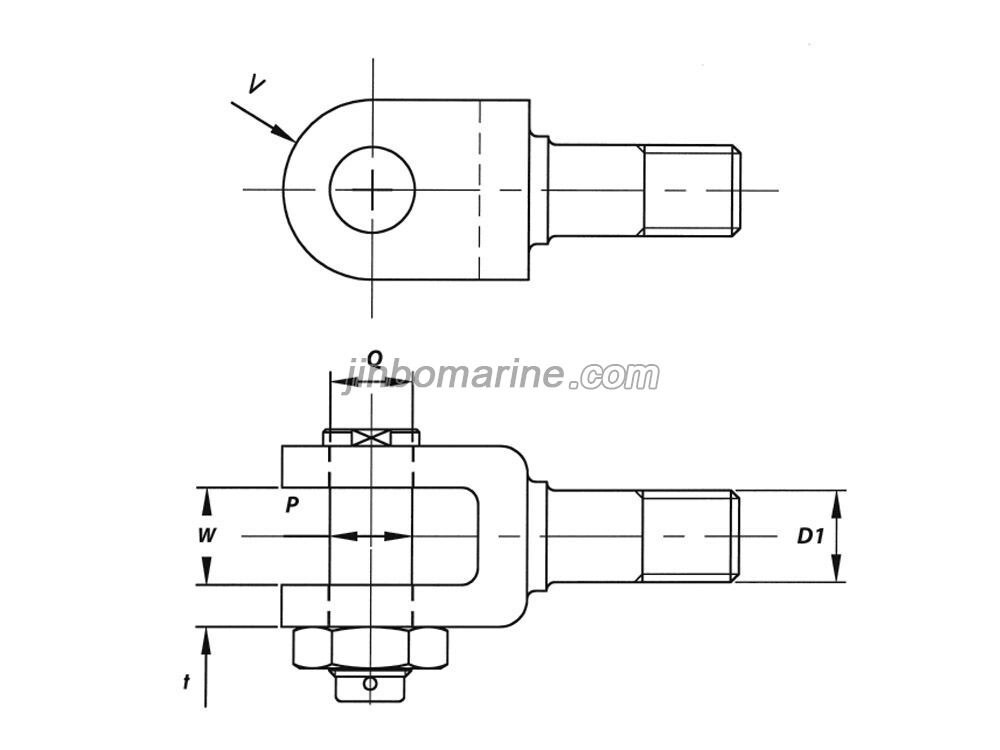

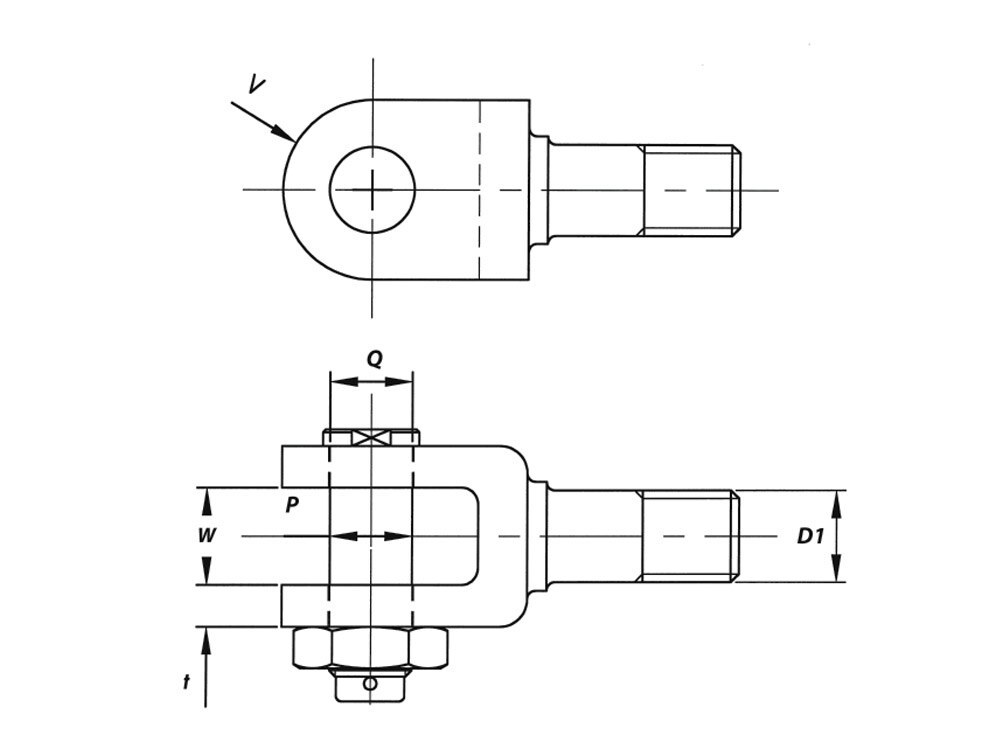

Drawing:

Specification:

Nominal size	Will(t)	Dimensions (mm)					Thread D1
Nominal size	Will(t)	W	t	Q	V	P	Thread D1
1	1	19	8	17	17.5	16	M18
2	2	26	12	23	25	22	M24
2.5	2.5	29	13	25	27.5	24	M27
3	3.2	32	14	28	30	27	M30
4	4	35	15	31	32.5	30	M33
5	5	39	18	37	37.5	36	M36
6	6.3	45	20	40	42.5	39	M42
8	8	49	23	46	47.5	45	M45
10	10	58	26	50	55	48	M52
12	12.5	64	28	54	60	52	M56
16	16	70	30	62	65	60	M64
20	20	74	33	70	70	68	M72*6
25	25	80	35	74	75	72	M76*6
32	32	90	40	82	85	80	M80*6
40	40	100	45	90	95	93	M90*6
50	50	110	50	100	105	104	M100*6
63	63	120	65	110	115	114	M110*6

Product Advantage:

1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service

Packing and Delivery：

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
