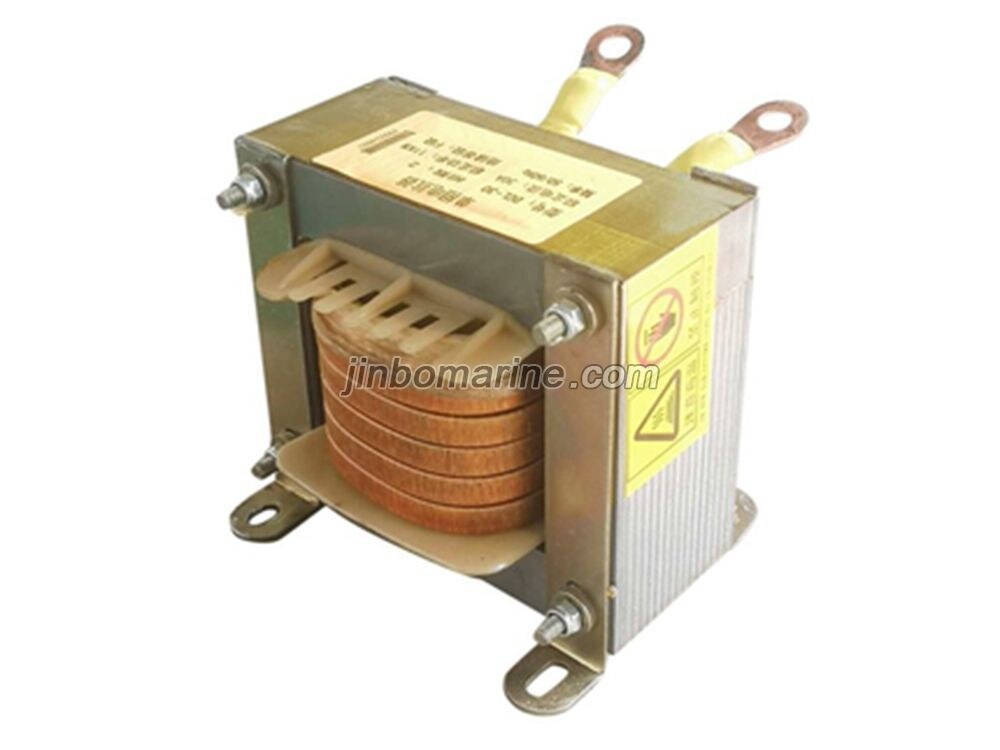

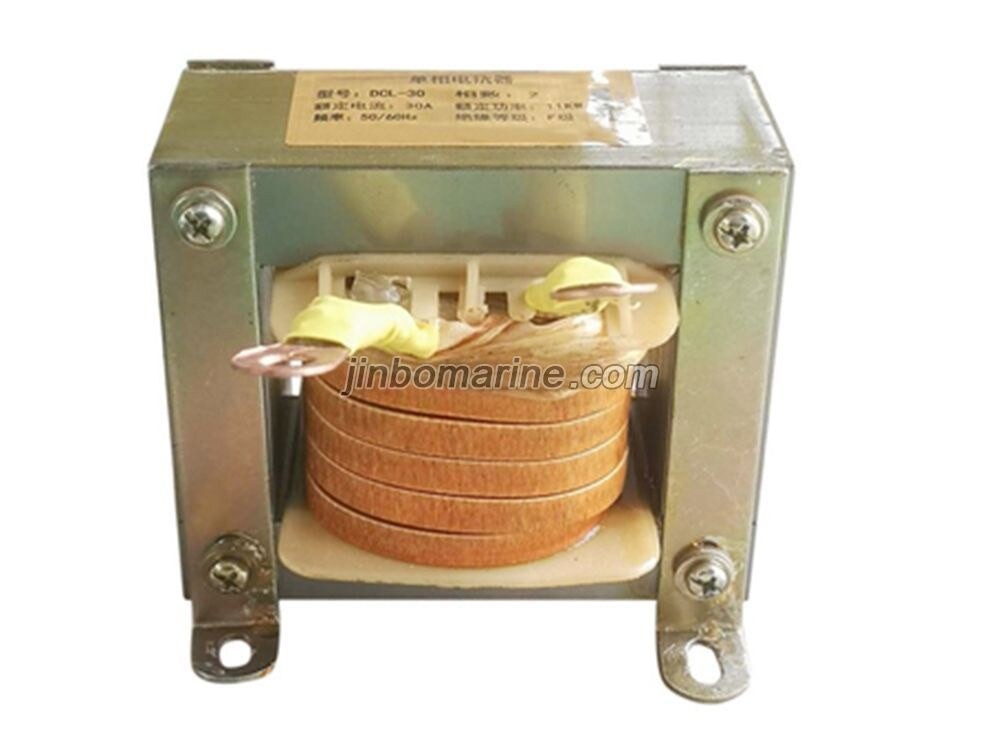

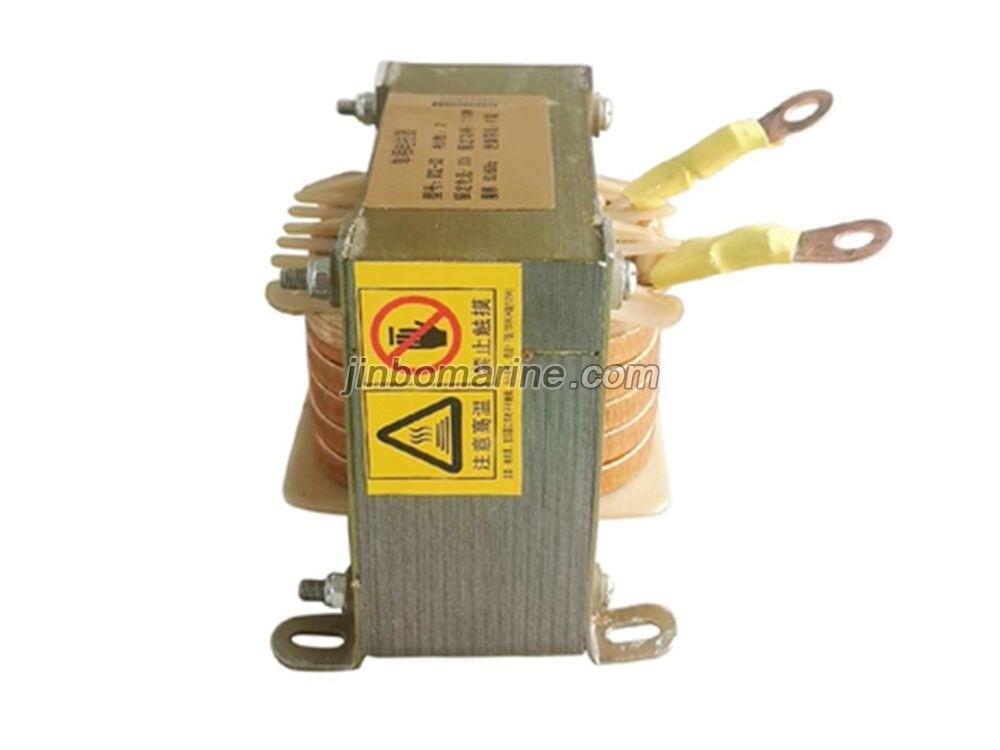

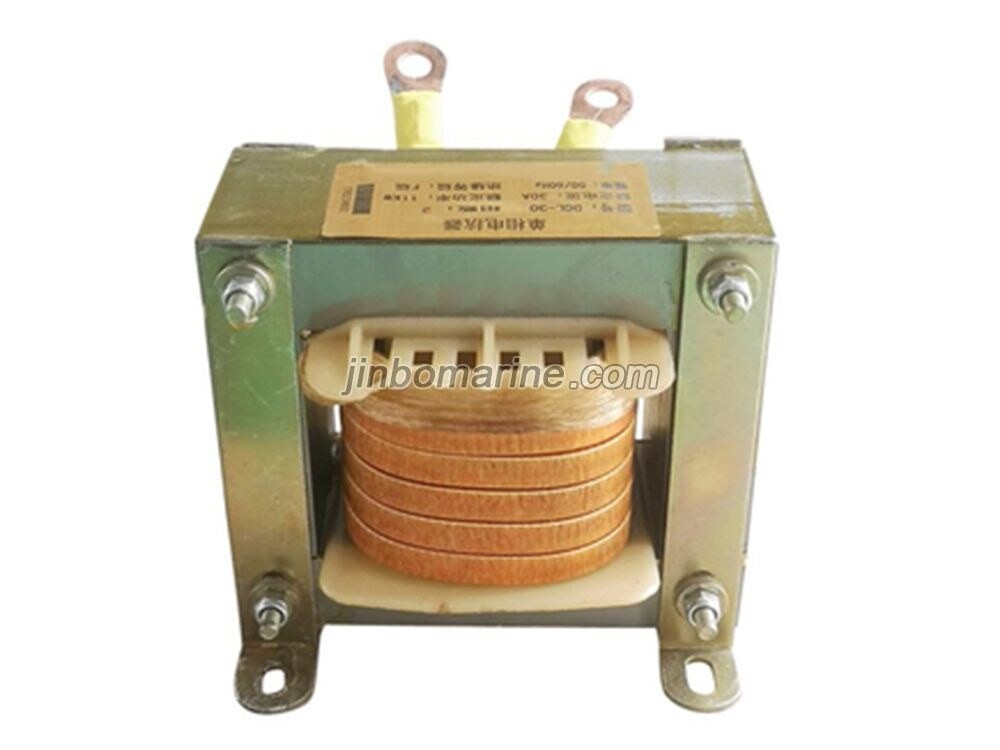

LK-150 Series Marine Single Phase Reactor

Purpose:

Reactor is generally classified into incoming line reactor and smoothing reactor, it can be used for starting current-limiting of AC motor and DC motor, and also can be used for current-limiting in the load of circuit or circuit short.

Service conditions:

l A height above sea-level not exceeding 1000m;
l A temperature of ambient air not below -25℃ and above +45℃；
l Relative air humidity: ≤95%;
l In environment with waterproof equipment and without water vapor.

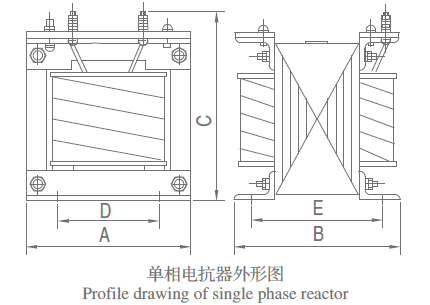

Structure:

The reactor is type of three-phase and single phase current of, three-phase of reactor(below 700A) and current of single phase of reactor (below 500A) are continuous type winding, current of three-phase reactor over 700A and current of single phase reactor over 500A are designed disc winding.
