LLT Series Spiral Rotor Flow Meter
Spiral dual-rotor flow meter is my company the latest generation of volumetric flow meter, because it USES a pair of special tooth profile of helical rotor, so it has no pulse, low noise, ...

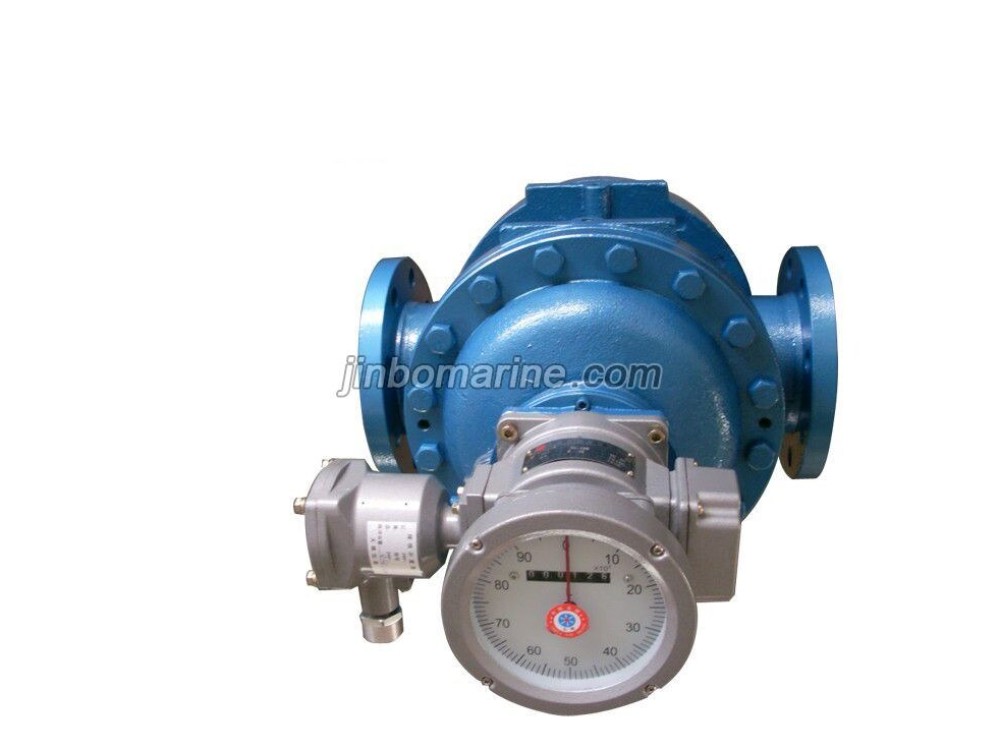

LLT Series Spiral Rotor Flow Meter
PDF Datasheet
We can supply according to your requirement.
China LLT Series Spiral Rotor Flow Meter:
Spiral dual-rotor flow meter is my company the latest generation of volumetric flow meter, because it USES a pair of special tooth profile of helical rotor, so it has no pulse, low noise, high precision, high reliability, large flow, and other significant characteristics of strong adaptability to environment. Its wide applications in petroleum chemical industry, metallurgy, electronics, wharf and other department business trade measurement control and engineering management.
Screw rotor in the measurement chamber constant speed rotation, such as flow. Smooth running, low noise, large flow, little pressure loss. Constant speed rotating spiral rotor flow pulsation is small, transmitting pulse is stable and accurate. You can configure multiple counter, speed governor and external fine adjustment device.
Main Specification
| Model | Caliber | Viscosity（mPa.s） | ||||||
| 0.3~0.8 | 0.8~2 | 2~15 | 15~400 | 400~1000 | 1000~2000 | 2000~3500 | ||
| Gasoline | Kerosene | Diesel oil,Engine oil | Heavy oil | High viscosity liquid | ||||
| LLT-0252 | 25 | 3~9 | 1.5~10 | 1~10 | 1~10 | 1~8 | 1~8 | 1~6 |
| LLT-0401 | 40 | 3~9 | 1.5~10 | 1~10 | 1~10 | 1~8 | 1~8 | 1~6 |
| LLT-0402 | 7~20 | 3~22 | 2.5~25 | 2~25 | 2~18 | 2~18 | 3~12 | |
| LLT-0501 | 50 | 7~20 | 3~22 | 2.5~25 | 2~25 | 2~18 | 2~18 | 3~12 |
| LLT-0502 | 9~36 | 4.5~36 | 3.6~36 | 3.6~36 | 2.8~25 | 2.8~25 | 4.5~18 | |
| LLT-0801 | 80 | 9~36 | 4.5~36 | 3.6~36 | 3.6~36 | 2.8~25 | 2.8~25 | 4.5~18 |
| LLT-0802 | 20~80 | 10~80 | 10~100 | 10~100 | 6.5~56 | 6.5~56 | 5~40 | |
| LLT-1001 | 100 | 20~80 | 10~80 | 10~100 | 10~100 | 6.5~56 | 6.5~56 | 5~40 |
| LLT-1002 | 25~100 | 13~100 | 15~150 | 15~150 | 8.5~80 | 8.5~80 | 6.5~55 | |
| LLT-1501 | 150 | 25~100 | 13~100 | 15~150 | 15~150 | 8.5~80 | 8.5~80 | 6.5~55 |
| LLT-1502 | 55~225 | 30`250 | 25~250 | 25~250 | 18~150 | 18~150 | 10~100 | |
| LLT-2001 | 200 | 55~225 | 30`250 | 25~250 | 25~250 | 18~150 | 18~150 | 10~100 |
| LLT-2002 | 90~360 | 50~400 | 40~400 | 40~400 | 28~240 | 28~240 | 20~160 | |
| LLT-2501 | 250 | 90~360 | 50~400 | 40~400 | 40~400 | 28~240 | 28~240 | 20~160 |
