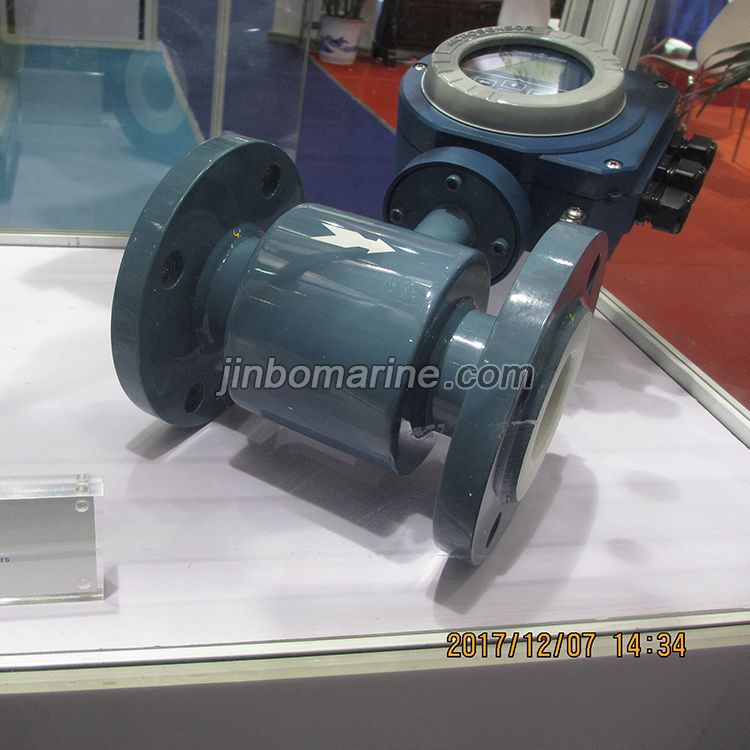

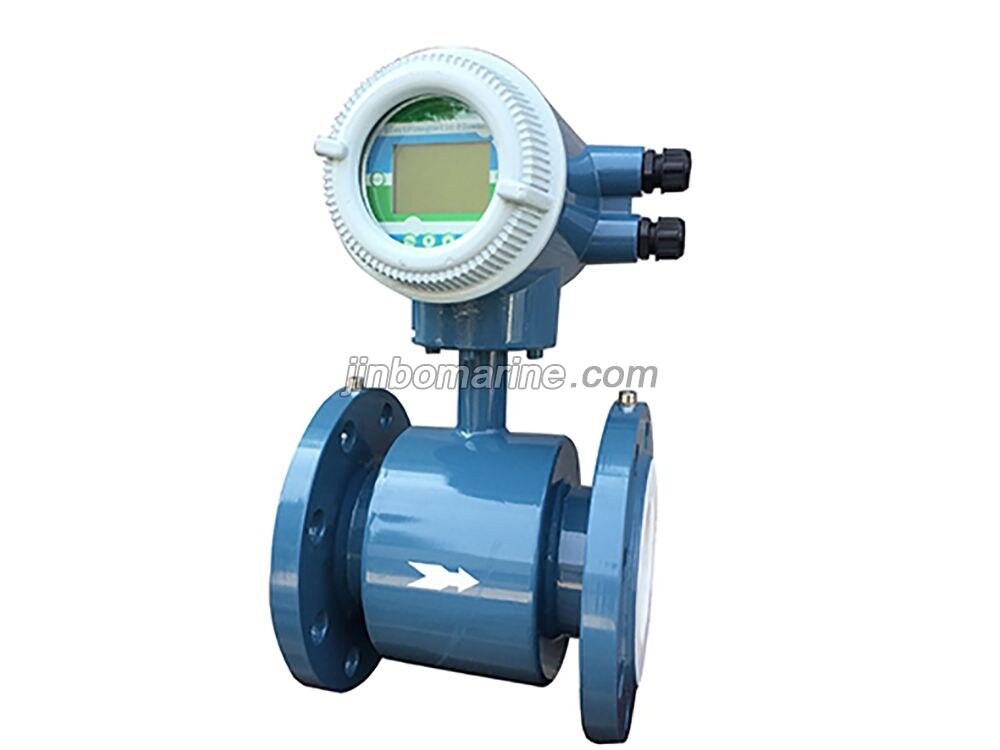

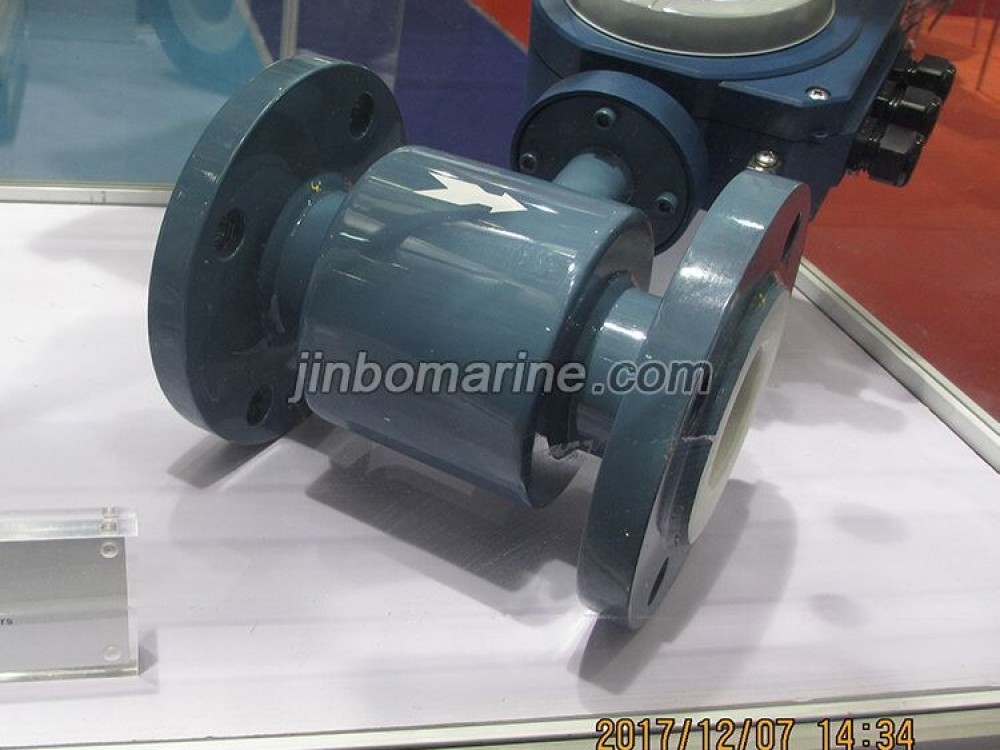

MFE600 Intelligent Electromagnetic Flowmeter
Electromagnetic flowmeter for volume flux measurement. Can measure the transient pulsating flux. RS485 communication protocol (optional). RS232 communication protocol (optional). Intell...
MFE600 Intelligent Electromagnetic Flowmeter
PDF Datasheet
We can supply according to your requirement.
China MFE600 Intelligent Electromagnetic Flowmeter:
Electromagnetic flowmeter for volume flux measurement.
Can measure the transient pulsating flux.
RS485 communication protocol (optional).
RS232 communication protocol (optional).
Intelligent Electromagnetic Flowmeter featuring high accuracy, reliability, good stability and long service life.
With a water tower up to 35m as pressure stabilizer for actual flow calibration, we have a professional production line for electromagnetic flowmeter, also we design and develop a series of software and hardware for electromagnetic flowmeter for mass production to ensure high quality in long term use. The product has backlight and wide temperature-ranged Chinese/English LCD display. With fully practical function, visual display, easy operation, it saves troubles for on-site installation operation and maintenance. It can be widely used in industrial fields such as petroleum, chemical, metallurgy, water supply and drainage, steel, coal, paper, food, textile, environmental protection and other municipal administration, water conservancy construction field etc.
Features:
2. Due to the unimpeded flow and no moving parts, it will not cause additional energy loss or jam. Therefore it is remarkable for energy saving, especially it is suitable for measurement of liquid-solid two-phase fluids such as sewage, slurry, pulp, coal slurry, pulp etc.
3. The electromagnetic flowmeter has no mechanical inertia. With good sensitivity, it can measure the transient pulsating flux, and has good linearity.
4.It has low requirements for installation. Short straight pipe is needed, generally 5D in front of the flowmeter, 3D behind it (D is the interior diameter of the selected instrument).
5. Only the lining and electrodes contact with the media, as long as the selection of electrode and lining materials is proper, they can be corrosion resistance and abrasive resistance, and are able to ensure long-term use.
6. When power supply is off suddenly, EEPROM can protect parameter setting and cumulative values.
7. The converter uses a low-power consumption single-chip for processing data. And it uses SMD electronic components and SMT surface mounting technology to ensure reliable performance, high accuracy, low power consumption and zero stability. With Chinese dot matrix LCD display, it can display the integrated flux, transient flux, velocity, flow percentage and other parameters.
8.Multi-electrode structure ensures high accuracy. With the grounding electrode, it doesn't need grounding ring, therefore saves the cost.
9. The low-frequency rectangle wave excitation improves the flux stability. It has low power consumption and good low flow characteristics.
10.Bidirectional measurement system can be used for measuring forward flux and reverse flux.
Normal Working Condition:
Environment Temperature: -20℃~60℃
Rated Voltage of Power Supply:
220V AC: 100V~240V AC
DC: 24V DC
Installation：
Separate model: converter, 50mm pipe or plane installation
Integrated model: combined with the sensor
Wire connector: ISO M20 × 1.5 female thread
Wire Terminals: M3 screw
Housing material: aluminum alloy
Structure:
Protection class: IP65 (general type); IP68 (waterproof)
