LZJC-10Q Current Transformer

LZJC-10Q Current Transformer 1.The product complies with the standards GB1208 and IEC185 2.Rated frequency 50Hz, 60Hz 3.Rated secondary current 5A, 1A LZJC-10Q Current Transfor...

Marine Transformers1 Photos ISO9001 Supplier

Loading product images...

LZJC-10Q Current Transformer

Category: Marine Transformers

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

LZJC-10Q Current Transformer

1.The product complies with the standards GB1208 and IEC185
2.Rated frequency 50Hz, 60Hz
3.Rated secondary current 5A, 1A

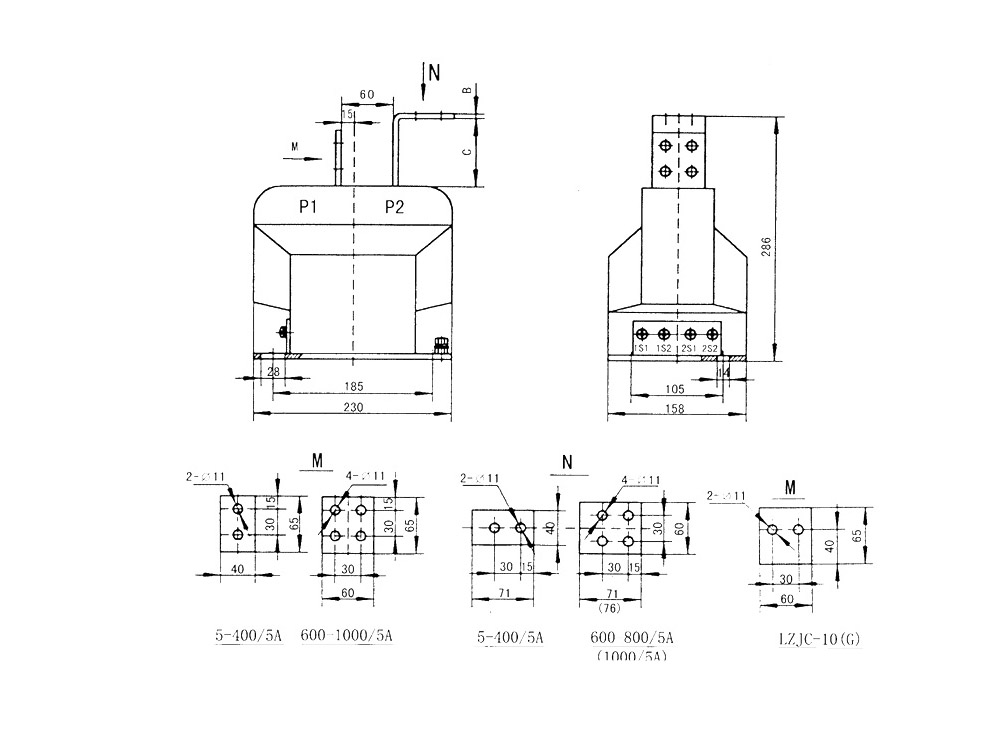

LZJC-10Q Current Transformer Drawing

LZJC-10Q Current Transformer Parameters

Model	Rated Primary Current A	Accuracy Combination	Rated Output/VA	LTH KA/S	Rated Dynamic Current
LZJC-10(Q)	50-400	0.5/10P15	44119	60Im	120Im
	600			50Im	120Im
	800			50Im	100Im
	1000			45Im	90Im
LZJC-10	50-400	0.5/10P10	44119	60Im	120Im
	600			50Im	120Im
	800			50Im	100Im
	1000			45Im	90Im
