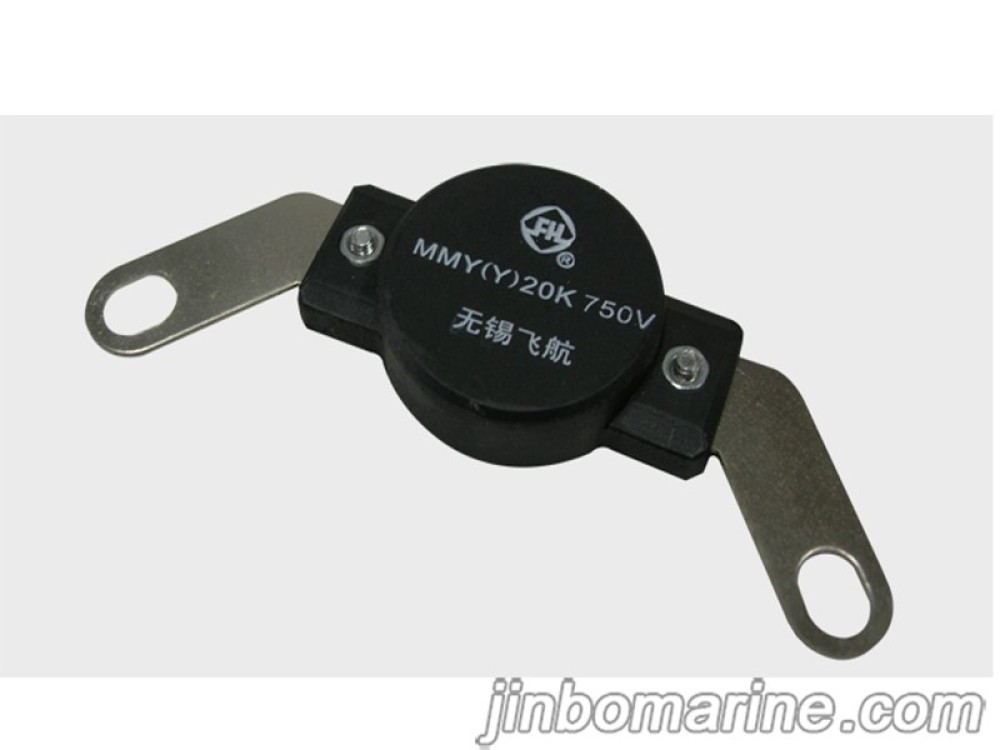

MMY（Y）20K750V Varistor Module
MMY（Y）20K750V Varistor Module Matching for MXG/Y100A three‑phase half‑bridge rotating rectifier module. Size : Type Nominal VoltageV Allo...
Loading product images...
MMY（Y）20K750V Varistor Module
PDF Datasheet
We can supply according to your requirement.
China MMY（Y）20K750V Varistor Module:
MMY（Y）20K750V Varistor Module
Matching for MXG/Y100A three‑phase half‑bridge rotating rectifier module.

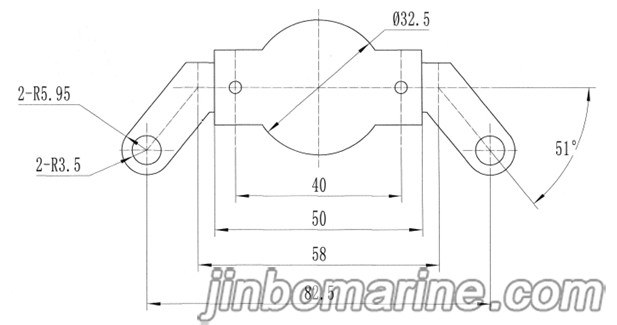

Size :
| Type | Nominal Voltage V | Allowable Voltage Deviation % | Leakage Current mA | Surge Current Capacity KA | Residual Voltage Ratio | Voltage Temperature Coefficient %/ ℃ | Surge Life | Voltage Ratio V1mA/V0.1mA | Insulation Voltage Ratio V | Centrifugal Acceleration Resistance g | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MMY | 460 | 10 | 30 | 4 | 1.4~1.7 | 0.1 | 10 | 1.08 | ≥2500 | ≥1500 | |||||||||||||
| 750 | 30 | 4 | 1.4~1.7 | 0.1 | 10 | 1.08 | ≥1500 | ||||||||||||||||
| 1000 | 30 | 4 | 1.4~1.7 | 0.1 | 10 | 1.08 | ≥1500 | ||||||||||||||||
