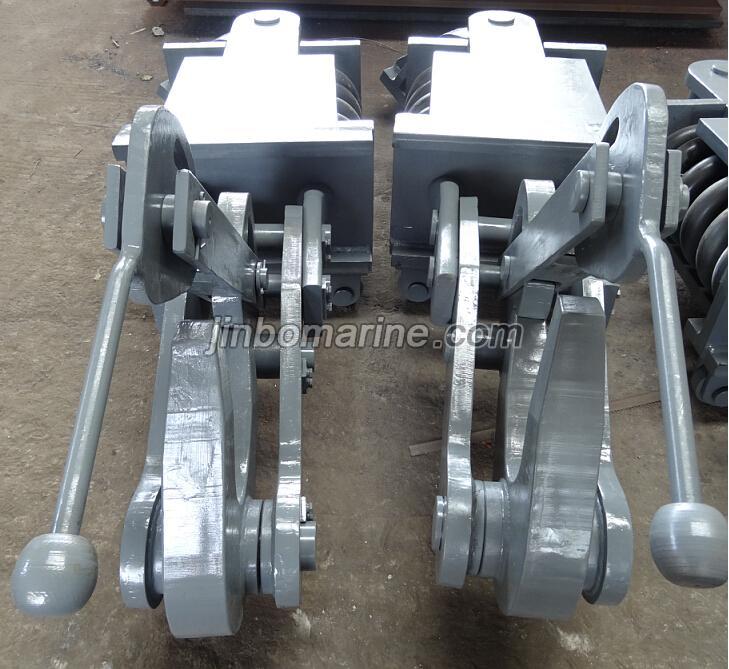

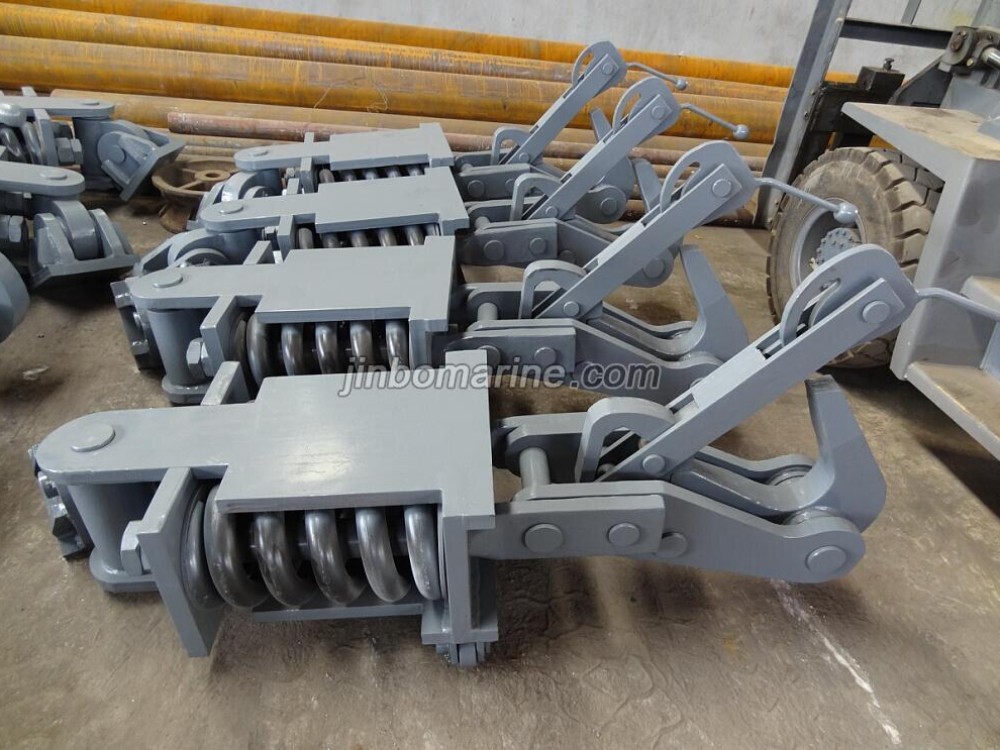

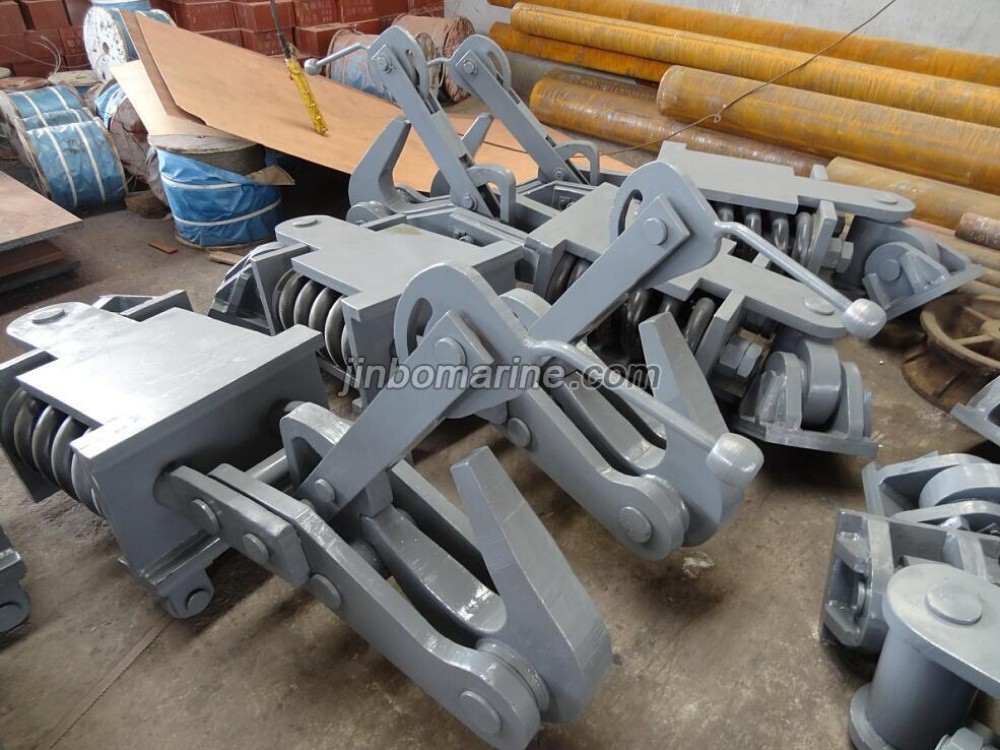

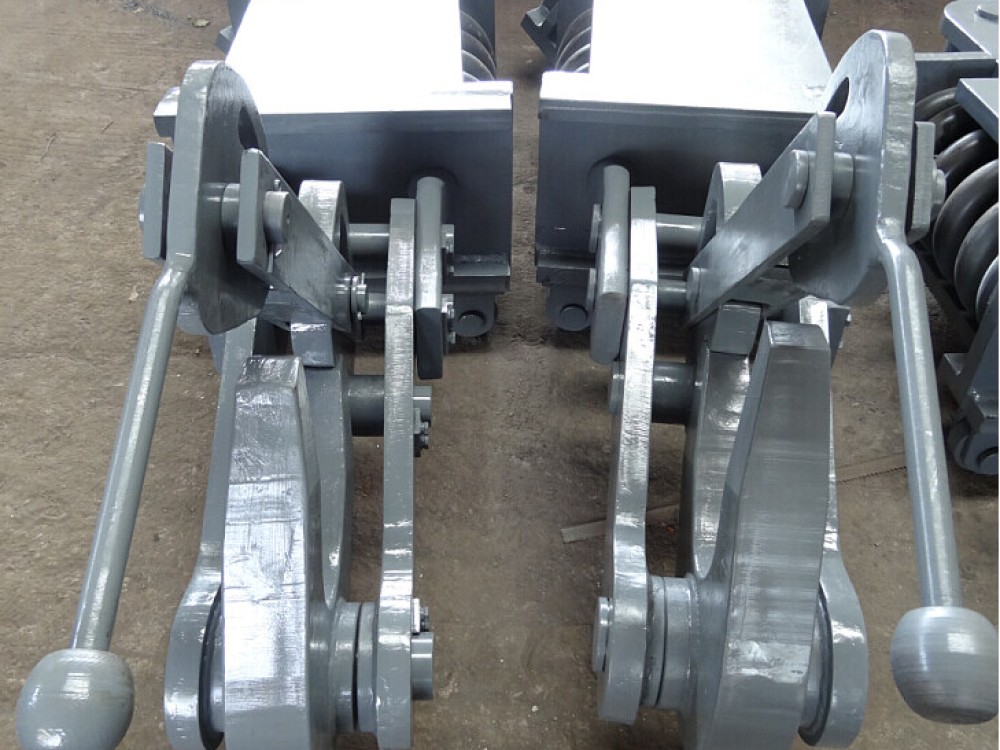

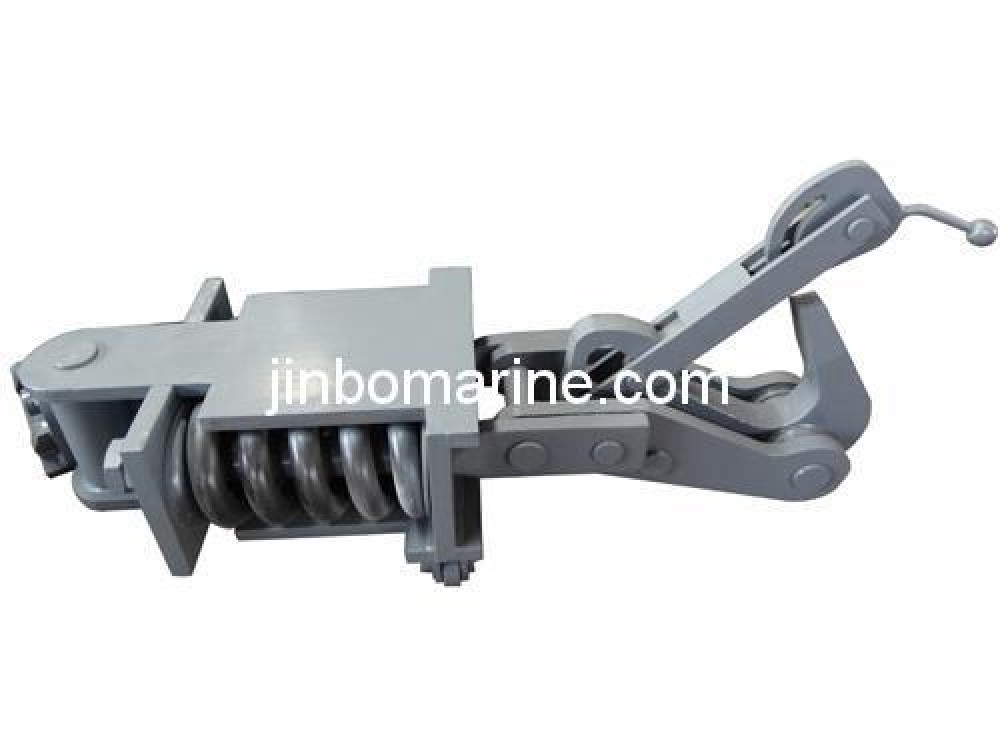

Manual Release Spring Towing Hook
The towing hook enable ships to be towed in safety under all kinds of working conditions,it can be released manually. Certificate with CCS, BV, ABS , DN...
Manual Release Spring Towing Hook
PDF Datasheet
We can supply according to your requirement.
China Manual Release Spring Towing Hook:
The towing hook enable ships to be towed in safety under all kinds of working conditions,it can be released manually.
Certificate with CCS, BV, ABS , DNV ,GL , mill certificate etc.
Popular model:5 ton,8 ton,10 ton,11 ton,12 ton,16 ton,25 ton,30 ton,40 ton
Type: manual spring Type/Hydraulic spring type.
Operation mode: Side movement
Material:Including Q235-A material,35# steel,35 Crmo, 60Si2Mn.
Manual release spring towing hook also be called as Hydraulic r
lease spring towing hook, manual spring towing hook,hand operated towing hook.

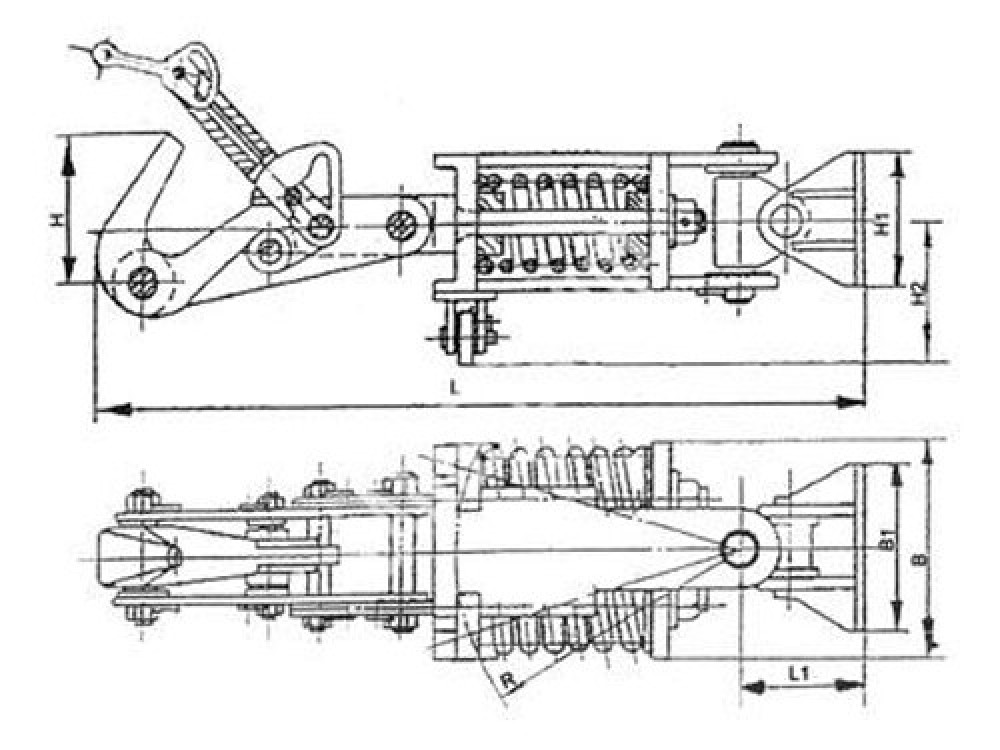

Size chart:
| Manual release spring towing hook | ||||||||||
| Product No. | Max.load(KN) | L(mm) | L1(mm) | B(mm) | B1(mm) | H(mm) | H1(mm) | H2(mm) | R(mm) | Weight |
| MSH-001 | 16 | 822 | 145 | 232 | 150 | 180 | 150 | 157 | 309 | 56.6 |
| MSH-002 | 25 | 916 | 142 | 260 | 130 | 190 | 130 | 141 | 345 | 83.7 |
| MSH-003 | 40 | 1180 | 184 | 330 | 208 | 270 | 228 | 189.5 | 445 | 177.9 |
| MSH-004 | 63 | 1411 | 196 | 342 | 200 | 284 | 160 | 192 | 563 | 267.9 |
| MSH-005 | 100 | 1710 | 253 | 410 | 260 | 376 | 250 | 256.5 | 684 | 558.1 |
| MSH-006 | 160 | 1936 | 270 | 458 | 320 | 400 | 210 | 261 | 741 | 646.9 |
| MSH-007 | 220 | 2448 | 324 | 560 | 310 | 490 | 300 | 310 | 952 | 1269.1 |
| MSH-008 | 320 | 2128 | 315 | 590 | 342 | 430 | 280 | 332 | 828 | 1058.8 |
| MSH-009 | 400 | 2259 | 330 | 640 | 320 | 472 | 300 | 355 | 880 | 1340.1 |
Warranty:
We undertake to amend any defectives parts caused by poor design, material or workmanship for the goods supplied.
Warranty period:within a period of 12 months from date of invoice.
