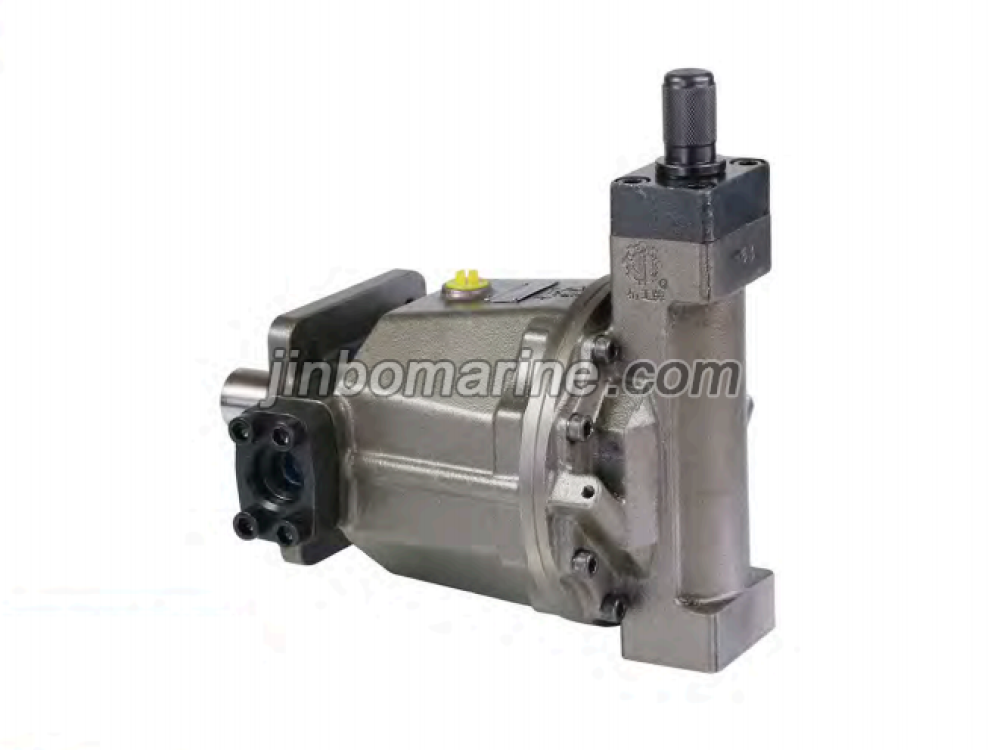

QG Variable displacement pump
Feature 1、This product is an axial piston pump in swash plate design for hydrostatic drives in open circuit operation; 2、Its rated operating pressure is up to 31.5MPa, and&n...
Loading product images...
QG Variable displacement pump
PDF Datasheet
We can supply according to your requirement.
Feature
1、This product is an axial piston pump in swash plate design for hydrostatic drives in open circuit operation;
2、Its rated operating pressure is up to 31.5MPa, and the instantaneous high pressure can reach 40MPa;
3、Various displacements high power density;
4、Excellent suction performance;
5、New appearance,Excellent power/Weight ratio;
6、Low noise, Long lifespan;
7、The same mounting flange with CY pump and design for SAE oil flange.
Ordering Code
The Parameter List(theoretical values)
Model |
Displacement
|
Rated power(MPa) |
Rated power(r/min) |
1500rpm Max.power (KW) |
| QG25 | 25 | 31.5 | 1500 | 20 |
| QG28 | 28 | 31.5 | 1500 | 22 |
| QG32 | 32 | 31.5 | 1500 | 25 |
| QG40 | 40 | 31.5 | 1500 | 31 |
| QG45 | 45 | 31.5 | 1500 | 35 |
| QG55 | 55 | 31.5 | 1500 | 43 |
| QG63 | 63 | 31.5 | 1500 | 50 |
| QG71 | 71 | 31.5 | 1500 | 56 |
| QG80 | 80 | 31.5 | 1500 | 63 |
| QG90 | 90 | 31.5 | 1500 | 71 |
| QG95 | 95 | 31.5 | 1500 | 75 |
| QG100 | 100 | 31.5 | 1500 | 79 |
| QG107 | 107 | 31.5 | 1500 | 84 |
| QG125 | 125 | 31.5 | 1500 | 98 |
| QG140 | 140 | 31.5 | 1500 | 110 |
| QG160 | 160 | 31.5 | 1500 | 126 |
| QG180 | 180 | 31.5 | 1500 | 142 |
| QG200 | 200 | 31.5 | 1500 | 157 |
| QG250 | 250 | 31.5 | 1500 | 197 |
| QG280 | 280 | 31.5 | 1500 | 220 |
| QG300 | 300 | 31.5 | 1500 | 236 |
| QG320 | 320 | 31.5 | 1500 | 252 |
Suggested Dimensions of The Pipe and Pipe Joint
Model |
Inlet (mm) |
Service Line (mm) |
Drain port (mm) |
| QG25/28/32/40/45 | ≥φ35 | ≥φ20 | ≥φ10 |
| QG55/63/71/80/90 | ≥φ40 | ≥φ25 | ≥φ14 |
| QG95/100/107/125 | ≥φ50 | ≥φ32 | ≥φ16 |
| QG140/160/180/200 | ≥φ066 | ≥φ38 | ≥φ18 |
| QG250/280/300/320 | ≥φ90 | ≥φ50 | ≥φ28 |

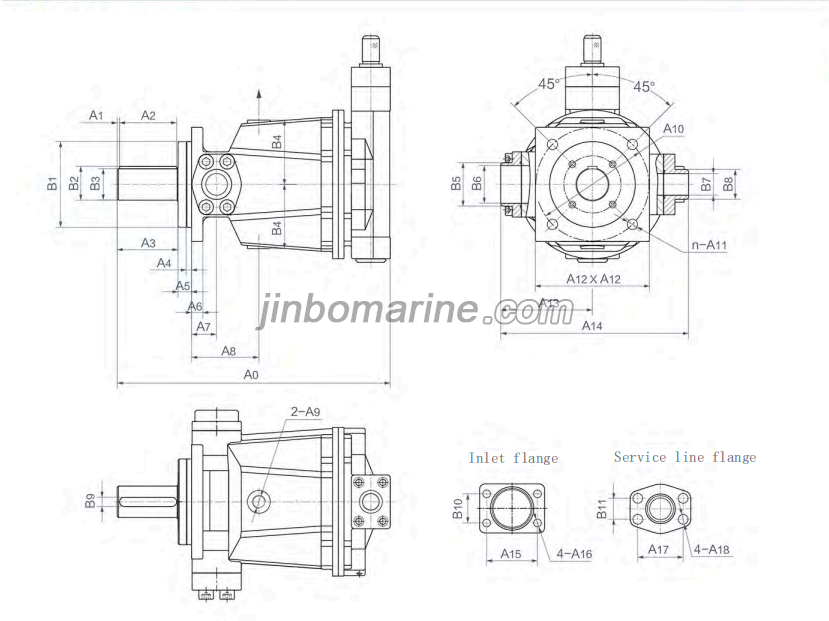

Overall Dimension
Model |
A0 |
A1 |
A2 |
A3 |
A4 |
A5 |
A6 |
A7 |
A8 |
A9 |
A10 |
A11 |
A12 |
A13 |
A14 |
| QG25/28/32/40/45Y | 300 | 4 | 45 | 54 | 9 | 19 | 15 | 30 | 78 | M14x1.5 | φ125 | φ12 | 125 | 118 | 236 |
| QG55/63/71/80/90Y | 355 | 4 | 50 | 62 | 19 | 16 | 35 | 92 | M18x1.5 | φ155 | φ14 | 155 | 135 | 271 | |
| QG95/100/107/125Y | 385 | 4 | 60 | 70 | 21 | 16 | 35 | 97 | M22x1.5 | φ155 | φ18 | 155 | 144 | 294 | |
| QG140/160/180/200Y | 478 | 4 | 100 | 109 | 21 | 20 | 44 | 118 | M22x1.5 | φ198 | φ18 | 200 | 160.5 | 329 | |
| QG250/280/300/320Y | 567 | 5 | 100 | 113 | 21 | 25 | 75 | 170 | M33x2 | φ230 | φ24 | 230 | 192.5 | 392 | |
Model |
A15 |
A16 |
A17 |
A18 |
B1（f9） |
B2 |
B3（h6） |
B4 |
B5 |
B6 |
B7 |
B8 |
B9（h9） |
B10 |
B11 |
| QG25/28/32/40/45Y | 58.7 | 11 | 50.8 | 11 | φ100 | 33 | φ30 | 71 | φ42 | φ34 | φ20 | φ28 | 8 | 30.2 | 23.8 |
| QG55/63/71/80/90Y | 70 | 13 | 57.1 | 13 | φ120 | 42.8 | φ40 | 88 | φ50 | φ40 | φ25 | φ35 | 12 | 35.7 | 27.8 |
| QG95/100/107/125Y | 77.8 | 13 | 66.7 | 15 | φ120 | 42.8 | φ40 | 96 | φ60 | φ50 | φ32 | φ43 | 12 | 42.9 | 31.6 |
| QG140/160/180/200Y | 89 | 13.5 | 79.4 | 17 | φ150 | 59 | φ55 | 112.5 | φ76 | φ66 | φ38 | φ52 | 16 | 50.8 | 36.7 |
| QG250/280/300/320Y | 120.7 | 17 | 96.8 | 21 | φ180 | 63.9 | φ60 | 135 | φ100 | φ90 | φ50 | φ65 | 18 | 69.9 | 44.5 |
