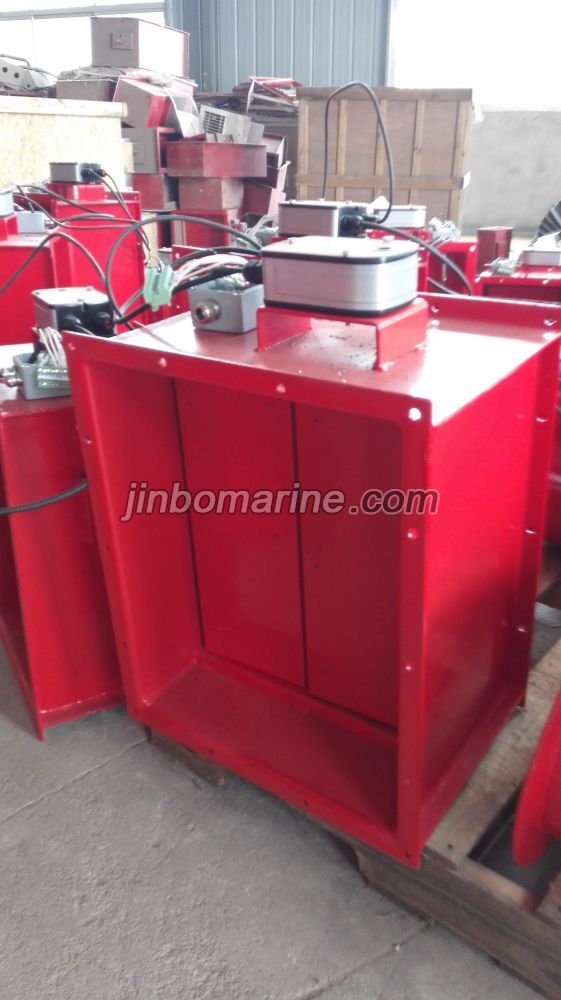

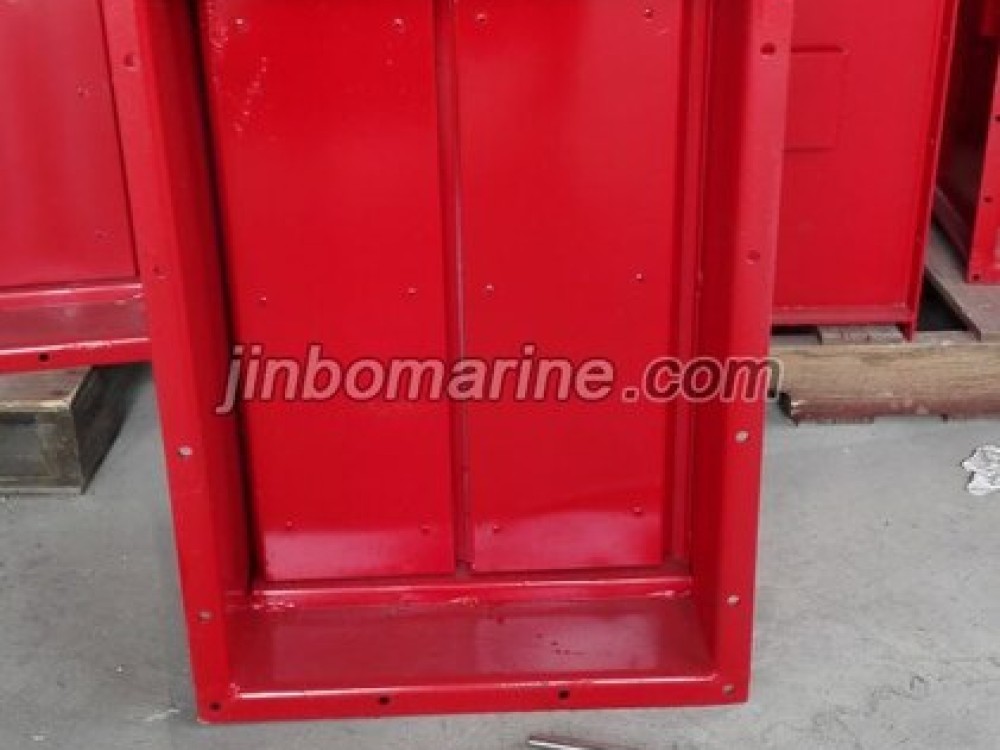

Marine Rectangular Electric Fire Damper
Fire Damper is intended for ventilation duct with fire requirement. When on fire, the temperature inside the duct reaches 70℃, fire damper will automatically close quickly to avoid fire spre...
Marine Rectangular Electric Fire Damper
PDF Datasheet
We can supply according to your requirement.
China Marine Rectangular Electric Fire Damper:
Fire Damper is intended for ventilation duct with fire requirement. When on fire, the temperature inside the duct reaches 70℃, fire damper will automatically close quickly to avoid fire spreading. According to the shape, there are rectangular & round type. According to the control way, there are manual, electrical, pneumatic type.The blade can be single blade or multi-blades. The fireproof class can reach A60.
Design Standard: CB/T3557-1995Fireproof class: A0,A15,A30,A60
Main Parts:electric actuator, temperature detector, damper body, damper plate, main axle, flange.
Main Functions & Features:
1)Normally the damper is connected with the control power DC24V/AC220V/AC110V to start. Otherwise, the damper is closed.
2)Under the emergency situation, the control center can cut off the power and let the damper close automatically.
3) When the duct temperature reaches 70 ± 3 ℃, or when the outside temperature reaches duct 95 ℃, the temperature fuse is blown, cut off the power, the damper closed;
4) When the damper is closed or open, it can output signals;
5) The fire damper is provided with a complete electric control box which can control to open the damper remotely or nearby.
