Marine Anemometer

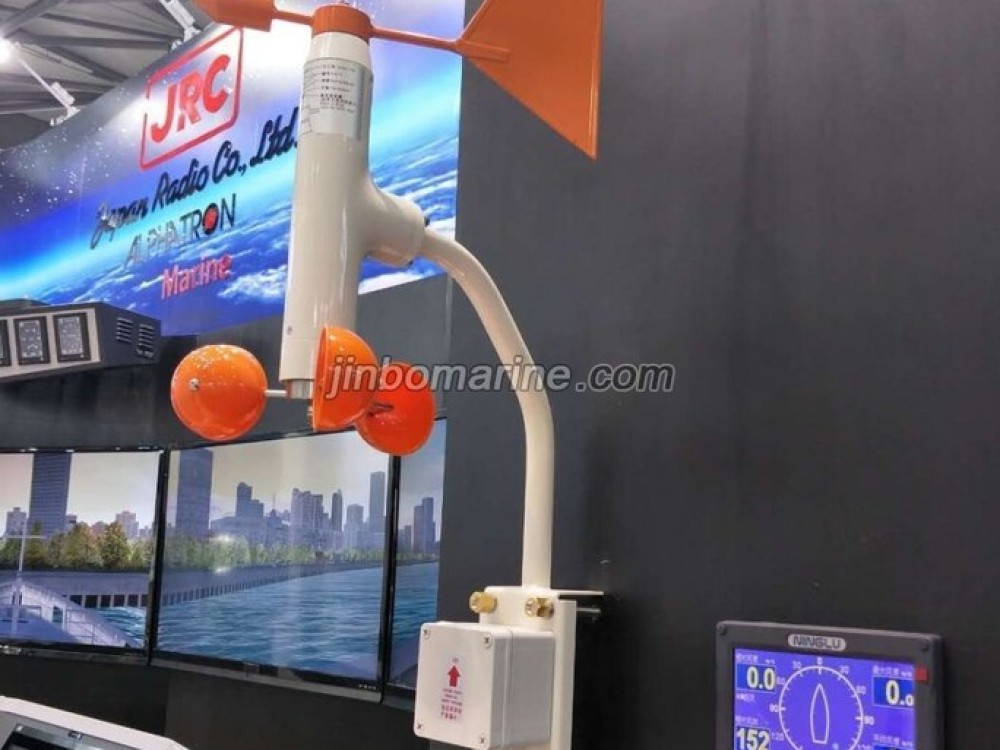

AM706 Marine Anemometer

Specification

Display: 7" TFT/480x234 pixels

Brightness Adjustment: 9 levels adjustable

Power-drop alarm: Alarm with inner buzzer

Data output: NMEA0183 wind speed and direction

NMEA port: RS422 output 2pin NMEA A/B

Direction accuracy: +/-1c

Wind range: 0 -- 359 Degree

Speed Accuracy: 0.1m/s

Speed range: 0 -- 60 m/s

Startup wind speed: No more than 1.2m/s

Powre supply: 24DC(20-32V) 5W

Operating temperature: -15 degree C to +55 degree C

Storage Temperature: -20 to 70 degree C

Humidity: 10-90% relative, no condensation

Protection: IP23
