Marine Bronze Angle Valve JIS F7302 5K
Design Standard: JIS F7302-1996 Test Standard: JIS F7400-1996 Test Pressure: Body-1.05Mpa, Seat-0.77Mpa Flange Size as per JIS B2220-5K *DN15-DN40 with screwed bonnet...
Loading product images...

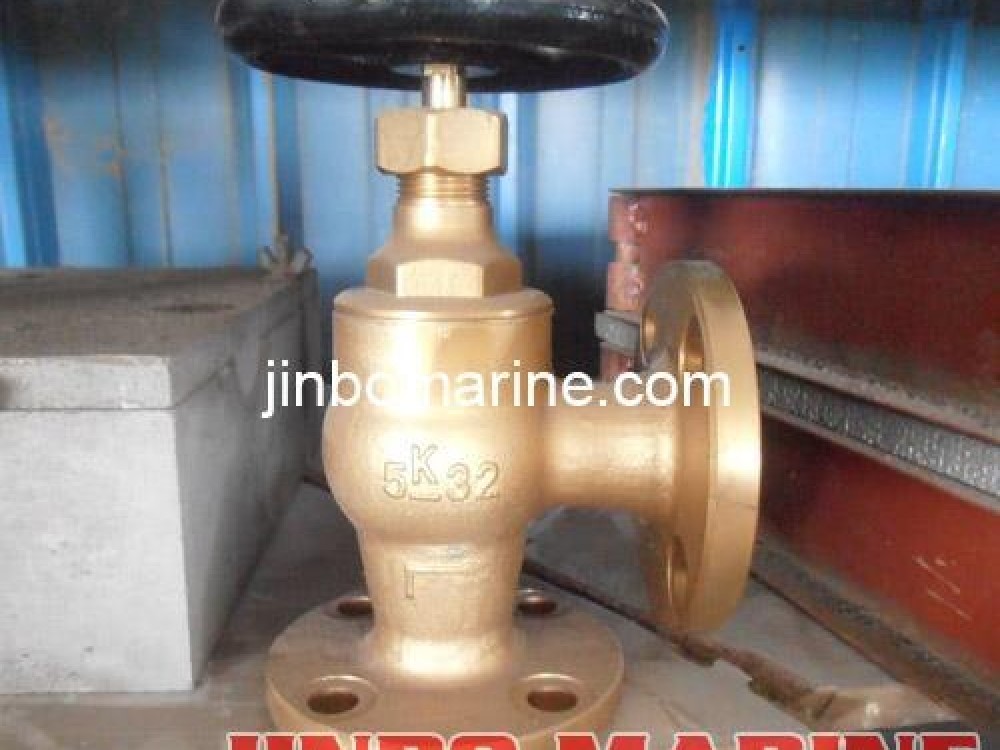

Marine Bronze Angle Valve JIS F7302 5K
PDF Datasheet
We can supply according to your requirement.
China Marine Bronze Angle Valve JIS F7302 5K:
Design Standard: JIS F7302-1996
Test Standard: JIS F7400-1996
Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Flange Size as per JIS B2220-5K
*DN15-DN40 with screwed bonnet, DN50-DN65 with bolted bonnet
Main Material:
1-Body: Bronze (BC6)
2-Disc:Bronze (BC6)
3-Stem: Brass (C3771BD)
4-Bonnet:Bronze (BC6)
5-Handwheel: Cast Iron (FC200)

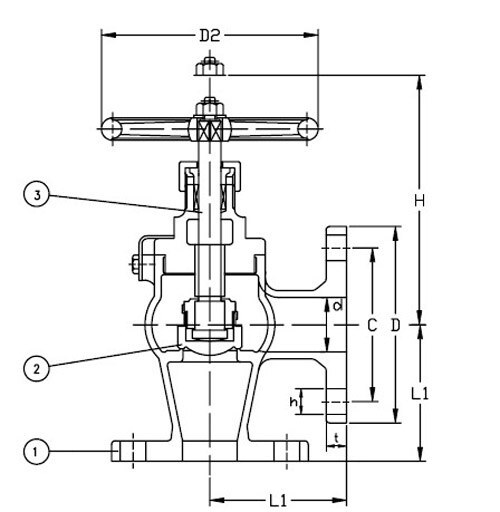

Main Size List(mm):
| IMPA Code | Size | L1 | D | C | No of Bolt Hole | h | t | H | D2 |
| 750131 | 15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
| 750132 | 20 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 100 |
| 750133 | 25 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 |
| 750134 | 32 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 125 |
| 750135 | 40 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 |
| 750136 | 50 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 140 |
| 750137 | 65 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 160 |
