Marine Bronze Angle Valve JIS F7304 16K
Design Standard: JIS F7304-1996 Test Standard: JIS 7400-1996 Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa Flange size as per JIS B2220 - 16K Main Materi...
Loading product images...

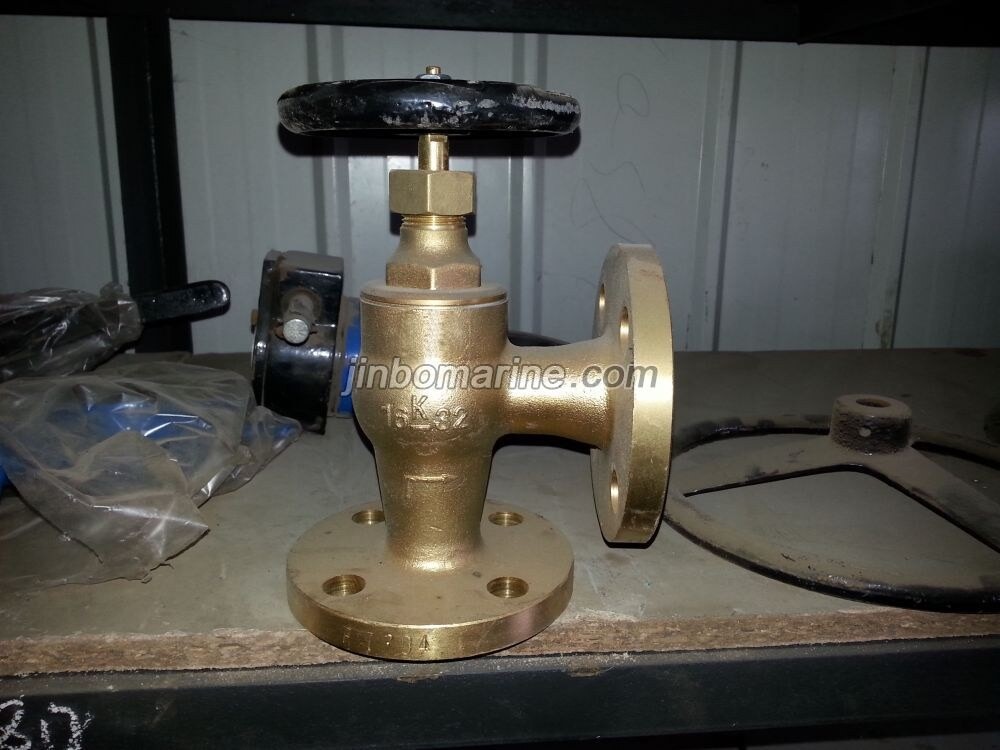

Marine Bronze Angle Valve JIS F7304 16K
PDF Datasheet
We can supply according to your requirement.
China Marine Bronze Angle Valve JIS F7304 16K:
Design Standard: JIS F7304-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa
Flange size as per JIS B2220 - 16K
Main Material:
1- Body: Bronze (BC6) / Brass
2- Disc: Bronze (BC6) / Brass
3- Stem: Brass (C3771BD)
4- Bonnet: Bronze (BC6) / Brass
5-Handwheel: Cast Iron (FC200)

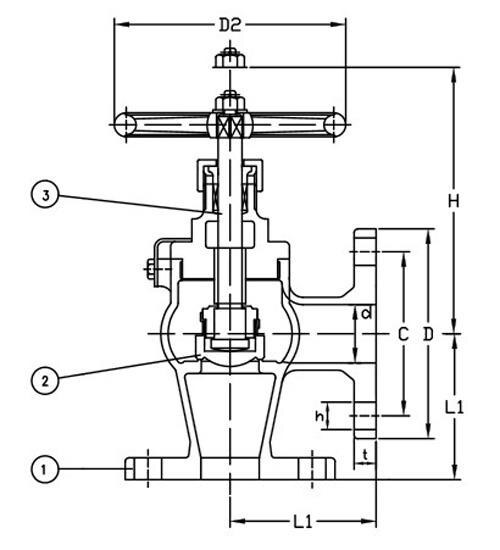

Main Size List(mm):
| IMPA CODE | Size | L | D | C | No. of Bolt | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|
| 750151 | 15 | 70 | 95 | 70 | 4 | 15 | 12 | 120 | 80 |
| 750152 | 20 | 75 | 100 | 75 | 4 | 15 | 14 | 125 | 100 |
| 750153 | 25 | 85 | 125 | 90 | 4 | 15 | 14 | 140 | 125 |
| 750154 | 32 | 95 | 135 | 100 | 4 | 15 | 16 | 145 | 125 |
| 750155 | 40 | 100 | 140 | 105 | 4 | 19 | 16 | 160 | 140 |
