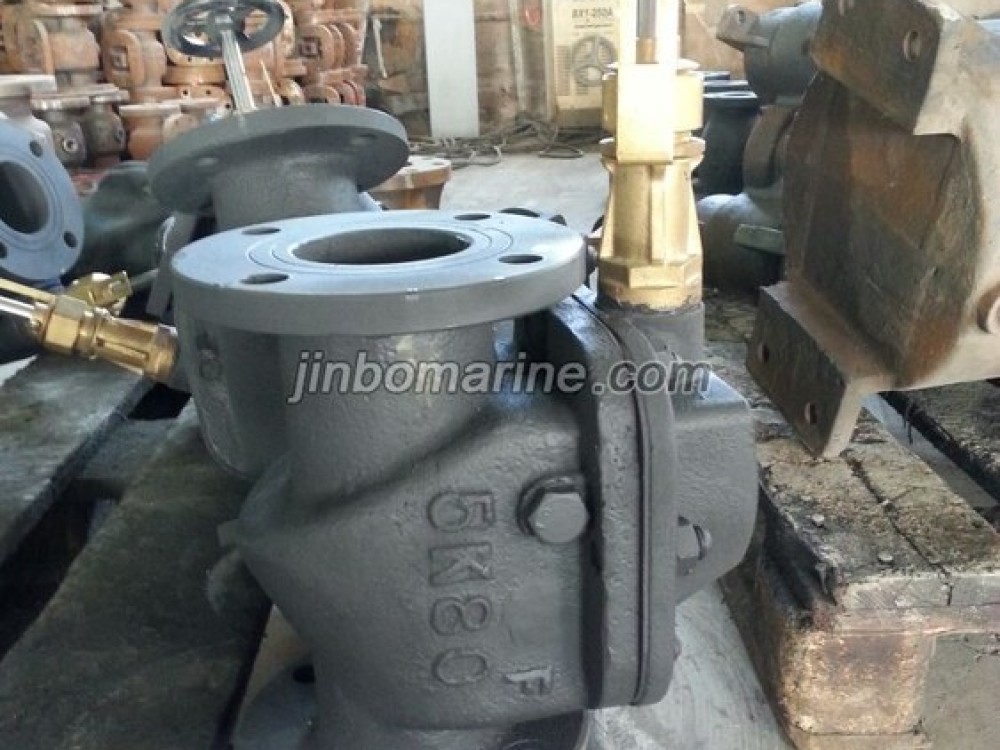

Marine Cast Steel Storm Valve JIS F3060 5K
PDF Datasheet
We can supply according to your requirement.
China Marine Cast Steel Storm Valve JIS F3060 5K:
Design Standard: JIS F3060-1996
Test Standard: JIS 7400-1996
Flange size as per JIS B2220 - 5K

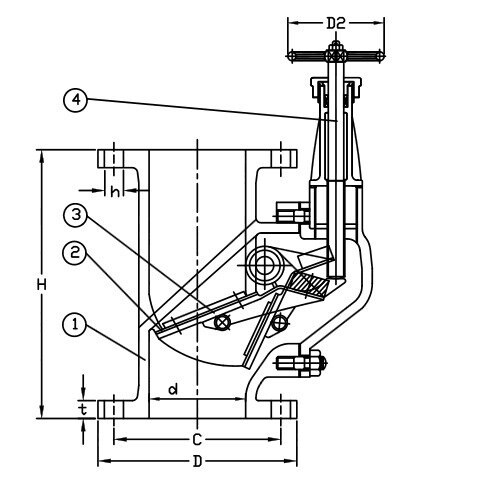

Main Material:
1-Body: Cast Steel (SC480)
2-Seat: Rubber(NBR)
3-Disc: Bronze (BC6)
4-Stem: Stainless Steel (SUS403)
Main Size List(mm):
| DN | H | D | C | No. | hole | t | D2 |
| 50 | 210 | 130 | 105 | 4 | 15 | 16 | 100 |
| 65 | 240 | 155 | 130 | 4 | 15 | 18 | 100 |
| 80 | 260 | 180 | 145 | 4 | 19 | 18 | 125 |
| 100 | 280 | 200 | 165 | 8 | 19 | 20 | 125 |
| 125 | 330 | 235 | 200 | 8 | 19 | 20 | 125 |
| 150 | 360 | 265 | 230 | 8 | 19 | 22 | 125 |
| 200 | 459 | 320 | 280 | 8 | 23 | 24 | 125 |
