Marine K2000-K4000 Heat Exchanger
PARAMETER\TYPE A B C D E F DIAMETER DIAM...
Loading product images...
Marine K2000-K4000 Heat Exchanger
PDF Datasheet
We can supply according to your requirement.
China Marine K2000-K4000 Heat Exchanger:

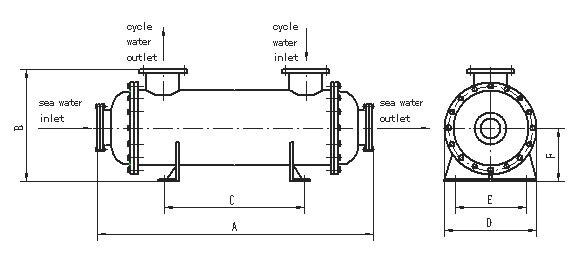

| PARAMETER\TYPE | A | B | C | D | E | F | DIAMETER | DIAMETER | AREA OF | SCOPE |
| OF FRESH | OF SEA | COOLING m2 | APPLICABLE | |||||||
| mm | mm | mm | mm | mm | mm | WATER | WATER | (FOR REFERENCE) | ||
| K2000 | 1350 | 563 | 700 | 460 | 360 | 269 | 6" | 6" | 14.5 | 1800-2000 HP diesel engine |
| K3000 | 1882 | 563 | 1000 | 460 | 360 | 269 | 6" | 6" | 21.6 | 2000-3000 HP diesel engine |
| K4000 | 2110 | 563 | 1200 | 460 | 360 | 269 | 6" | 6" | 29 | 3000-4000 HP diesel engine |
