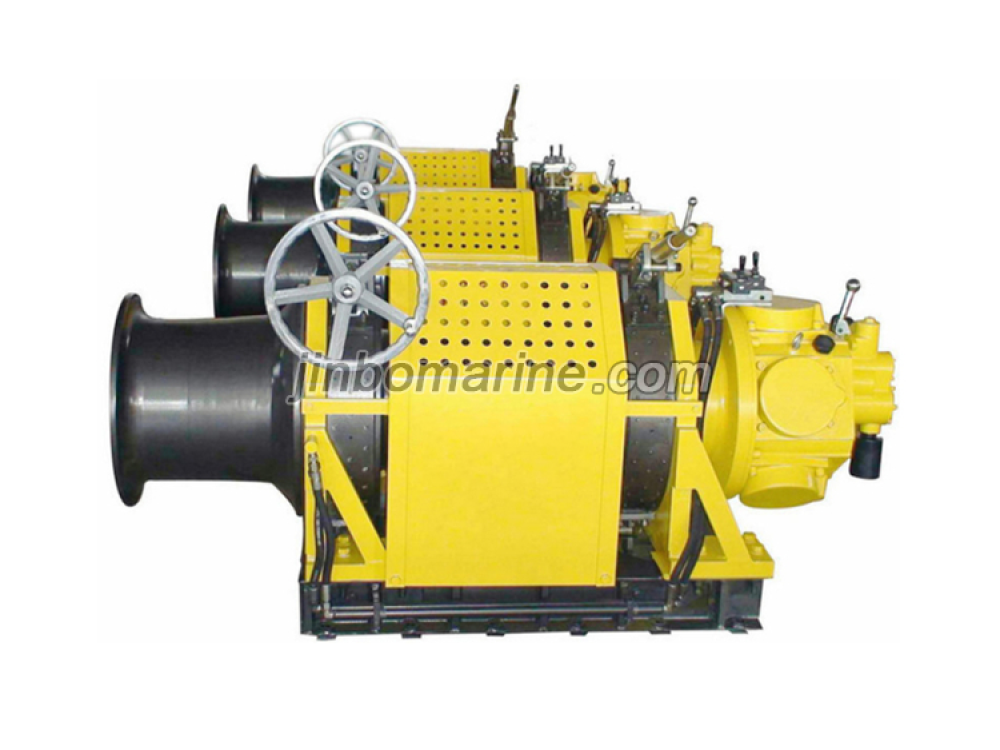

Marine Pneumatic Mooring Winch
Product model: QJH150PACAMB-25-150 Product Features: This product is suitable for ship mooring, lifting and pulling heavy objects in offshore platforms and engineering fie...
Marine Pneumatic Mooring Winch
PDF Datasheet
We can supply according to your requirement.
Product model: QJH150PACAMB-25-150
Product Features:
This product is suitable for ship mooring, lifting and pulling heavy objects in offshore platforms and engineering fields.
The main technical features are as follows:
a. Manual brake: During the use of the winch, the brake system is equipped with a hand-pressed brake and a hand-cranked brake.
b. Convenient operation: The winch control valve and air motor are combined design, only one control handle can control the speed, forward and reverse rotation of the winch at the same time.
c. Pneumatic clutch device: By operating the hand-pull valve, several operating states such as separate, synchronous, and complete disengagement of the drum and the anchor rope reel can be controlled.
Technical parameters
| Model | QJH150PACAMB-25-150 |
| Work pressure | 0.6-0.9Mpa |
| Rated tension | 150KN |
| Retracting and unwinding speed | 6m/min |
| Wire rope diameter | 25mm |
| Reel rope capacity | 150m |
| Dimensions | 2178*970*1168mm |
| Winch weight | 2600kg |

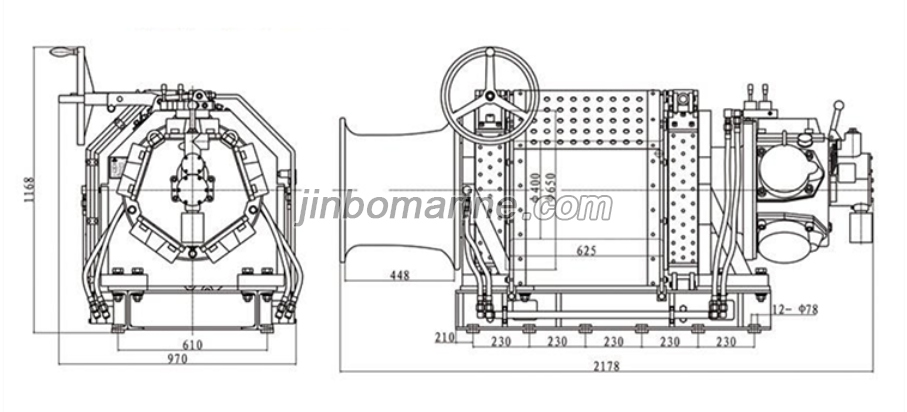

Outline drawing
Remarks: This series of pneumatic winches can be customized according to the actual needs of customers.
