NS2587 Standard Marine Deck Mounted Chock
Material: Type A welded: steel NS12 132(R St42-2) Type B cast:cast steel NS 11 640(Sst 400) Quality of manufacture: Surfaces coming into contact with the mooring the ...

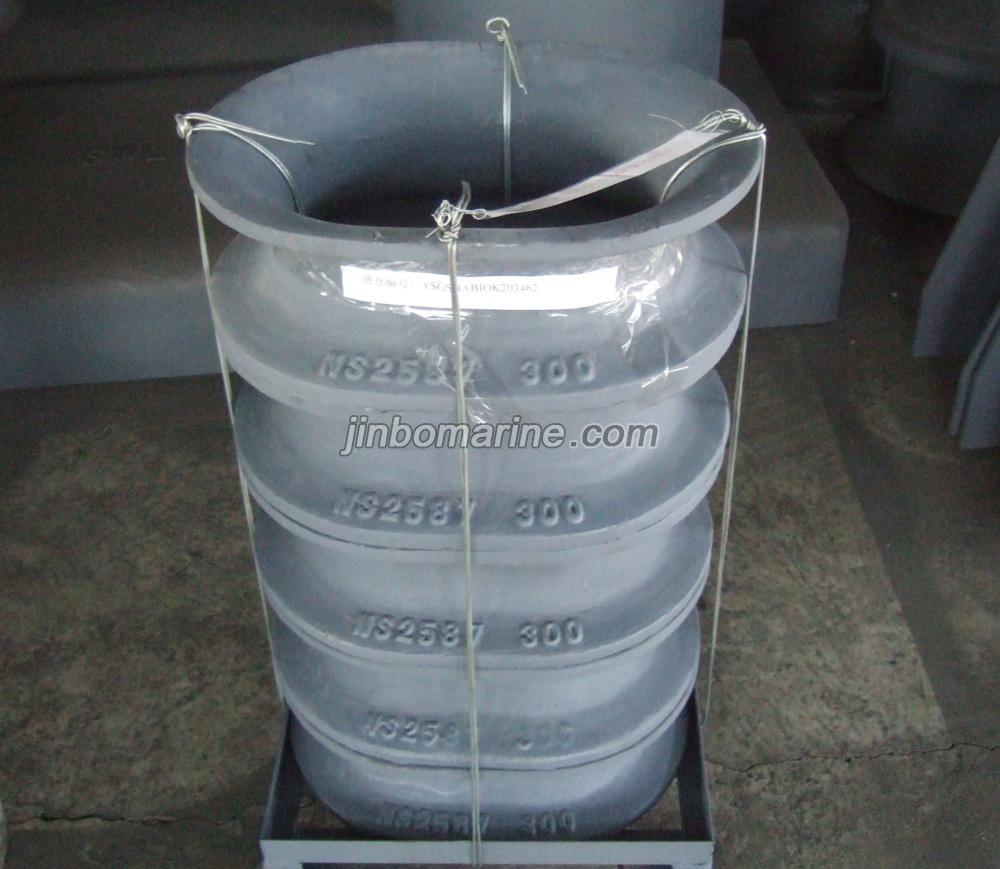

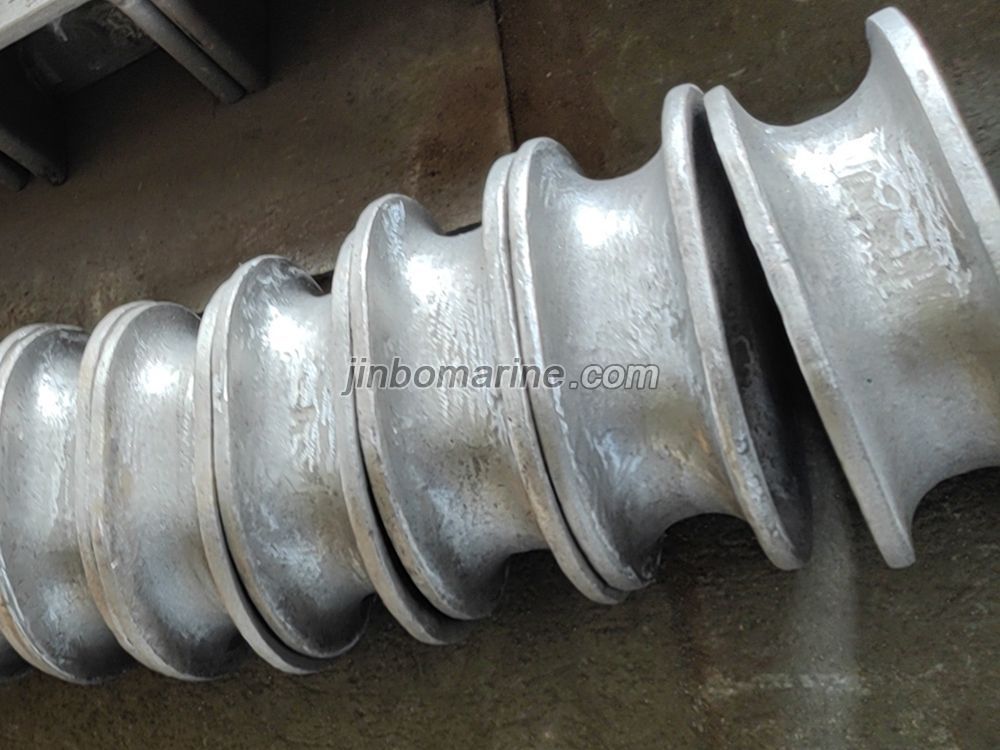

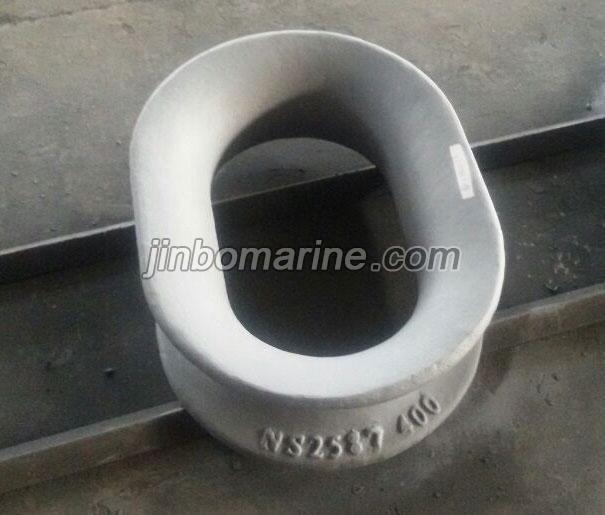

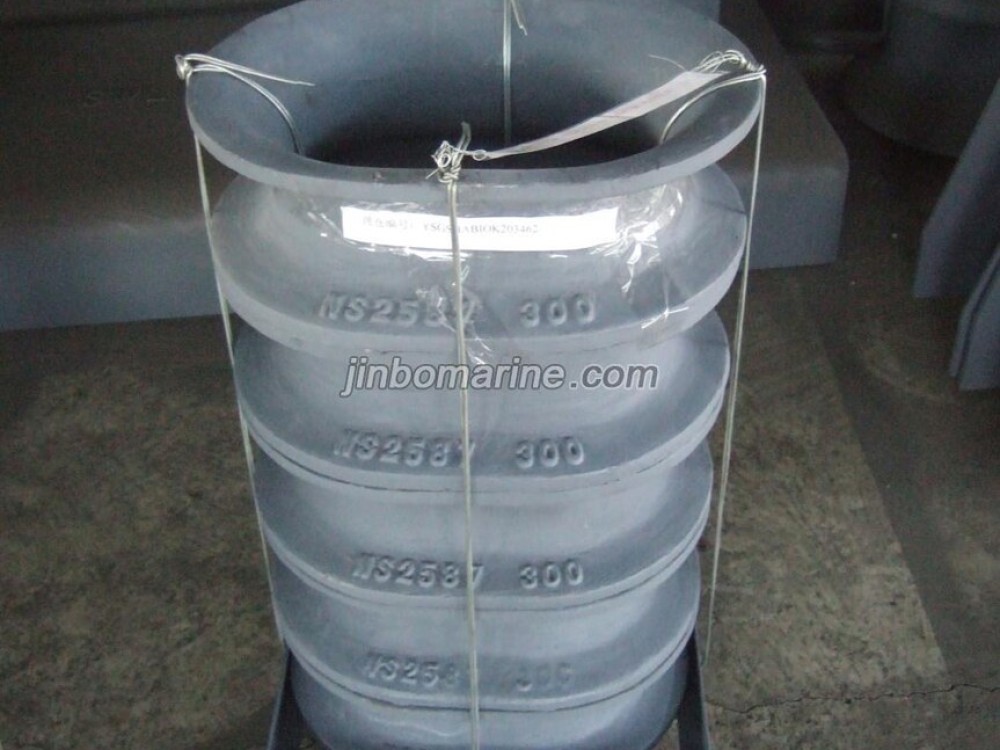

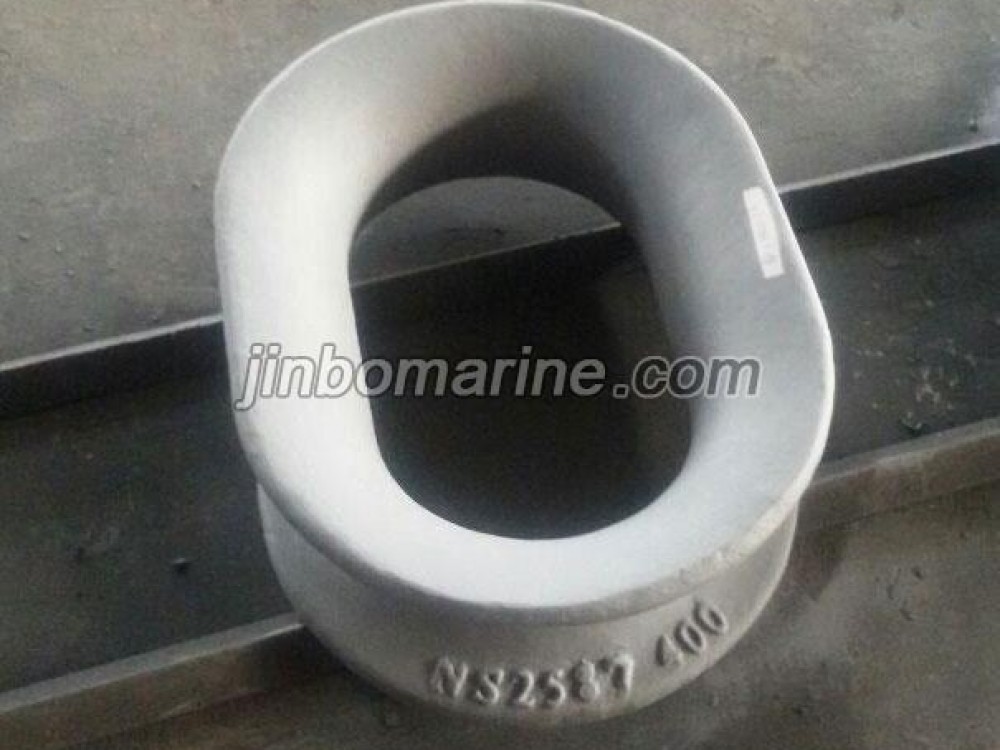

NS2587 Standard Marine Deck Mounted Chock
We can supply according to your requirement.
Material:
Type A welded: steel NS12 132(R St42-2)
Type B cast:cast steel NS 11 640(Sst 400)
Quality of manufacture:
Surfaces coming into contact with the mooring the line shall be smooth. Furthermore burrs or sharp edges shall not occur.
Surface treatment:
The chocks shall be cleaned to Sa2.5 inaccordance with Swedish standard SIS 05 59 00
and painted with an anticorrosive primer.

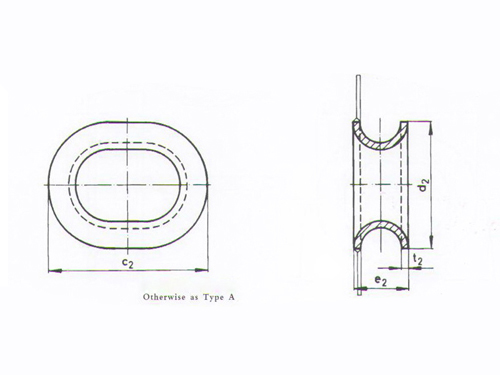

| NS2587 chock | |||||
| Nominal size | c2 | d2 | e2 | t2 | Mass(kg) |
| 200*150 | 330 | 280 | 130 | 16 | 14.9 |
| 300*200 | 458 | 358 | 158 | 20 | 47 |
| 400*250 | 600 | 450 | 200 | 25 | 99 |
