Single Point Mooring Pipe JIS F 2030-1978 Type B
Single Point Mooring Pipe JIS F 2030-1978 type B and other deck fittings are used by military and industrial ships, operating effectively throughout the world.We designs and manufactures pan...
Single Point Mooring Pipe JIS F 2030-1978 Type B
PDF Datasheet
We can supply according to your requirement.
China Single Point Mooring Pipe JIS F 2030-1978 Type B:
Single Point Mooring Pipe JIS F 2030-1978 type B and other deck fittings are used by military and industrial ships, operating effectively throughout the world.We designs and manufactures panama chocks in a wide variety of sizes and styles.
Feature:
1.Strict quality control.
2.Can issue BV,CCS,DNV,LR,KR,ABS,RINA certificate
3.Material: ZG200-400,ZG230-450.
4.Paint:Grey Epoxy Primer or Black Bitumen Paint,also can do comply with your requirement for the thickness.
5.Packing: Steel Pallet
6.surface in contact with the rope in use been finished smoothly.
for detail information also for the drawing,please contact with me.

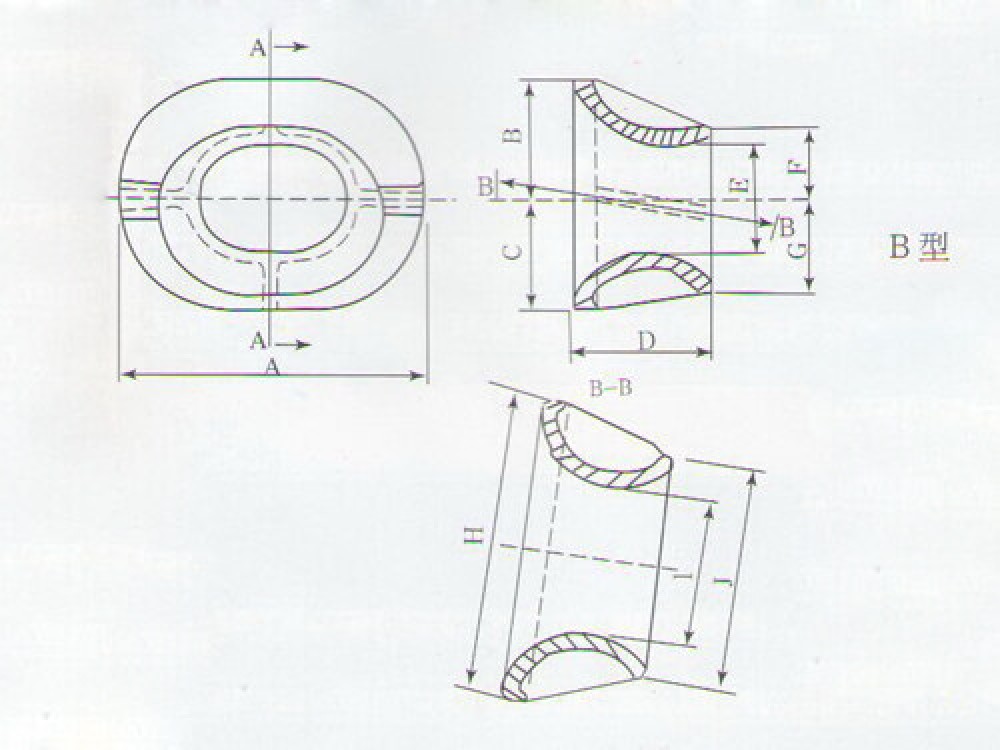

| Single Point Mooring Pipe JIS F 2030-1978 type B | |||||||||
| Product | Nominal | Size(mm) | Weight | ||||||
| A | B | C | D | E | H | I | (KG) | ||
| SMB-001 | 400 | 800 | 320 | 300 | 350 | 300 | 800 | 400 | 190 |
| SMB-002 | 500 | 960 | 370 | 350 | 400 | 400 | 960 | 500 | 310 |
| SMB-003 | 600 | 1120 | 420 | 400 | 450 | 450 | 1120 | 600 | 460 |
| SMB-004 | 700 | 1280 | 470 | 450 | 500 | 500 | 1280 | 700 | 660 |
| SMB-005 | 800 | 1440 | 520 | 500 | 550 | 600 | 1440 | 800 | 830 |
Also we can supply other kinds of Chocks as below.
Deck mounted Panama chock JIS F2017-1982 type AC
Bulwark mounted Panama Chock JIS F2017-1982 Type BC
Deck Mounted Closed Chock JIS F2005-1975
Bulwark mounted mooring chock JIS F 2007-1976 type A
Bulwark Mounted Chock DIN81915-1998 Type A
Bulwark Mounted Chock DIN81915-1998 Type B
Deck mounted Chock DIN81915-1998 type C
Deck mounted Chock DIN81915-1998 type D
Deck mounted Chock DIN81915-1998 type E
Deck Mounted Chock EU Type
Bulwark Mounted Chock EU Type
Single Point Mooring Pipe JIS F 2030-1978 type A
Single Point Mooring Pipe JIS F 2030-1978 type B
Deck mounted chock type A NS2587
Deck mounted chock type B NS2587
Deck mounted chock type A NS2588
Deck mounted chock type B NS2588
Deck mounted chock type A NS2589
Deck mounted chock type B NS2589
Deck mounted chock type A NS2590
Deck mounted chock type B NS2590
Mooring chock CB34 -76 TYPE A
Mooring chock CB34 -76 TYPE C
Open chock JISF 2006 TYPE FC
