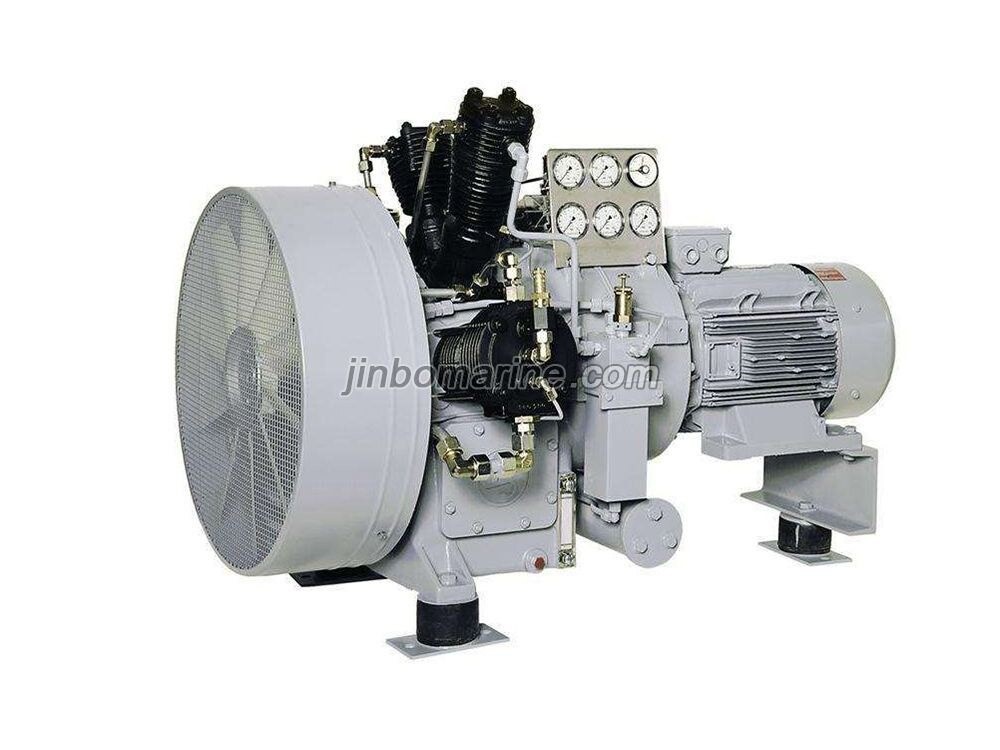

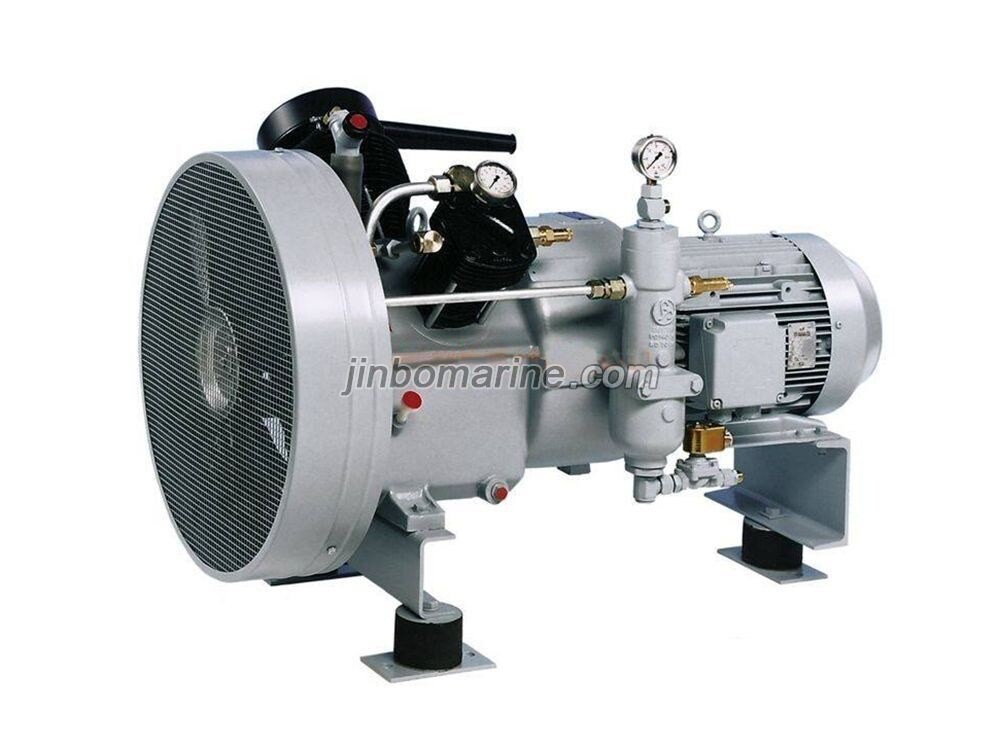

NWP40L Two Stages Medium Pressure Air Cooled Marine Air Compressor
Design Particulars： Max Pressure 4.0MPa V-type, Low vibration Easy installation and easy maintenance Air-cooled type, avoid costs for water circuit Lubrication...
Loading product images...
NWP40L Two Stages Medium Pressure Air Cooled Marine Air Compressor
PDF Datasheet
We can supply according to your requirement.
Design Particulars：
Max Pressure 4.0MPa
V-type, Low vibration
Easy installation and easy maintenance
Air-cooled type, avoid costs for water circuit
Lubrication system: splash/pressure oil lubrication
Performance data with 5% tolerance
Standard voltage and frequency: 380V/50HZ, 440V/60HZ
Techincal Data :
Model Pressure
(MPa) Stages Culinders Qty.
Speed
(r/min) Capacity
(m3/h) Power required
(KW) Power of motor
(KW) Cooling air required
(L/min） Dimension
(LxWxH) Weight
(kg) NWP40L 3 2 2 1150 30.5 6.6 7.5 31 1220*720*778 300 1450 39 8.3 11 38 1750 45 10.1 11 47 NWP50L 3.0 2 2 1150 38 8.5 11 39 1220*720*778 300 1450 48.5 10.5 11 49 1750 58.5 12.7 15 59 NWP62L 3 2 2 1150 46 9.8 11 45 1220*720*778 330 1450 58 12.5 15 58 1750 70 15.1 18.5 70
| Model | Pressure (MPa) | Stages | Culinders Qty. | Speed (r/min) | Capacity (m3/h) | Power required (KW) | Power of motor (KW) | Cooling air required (L/min） | Dimension (LxWxH) | Weight (kg) |
| NWP40L | 3 | 2 | 2 | 1150 | 30.5 | 6.6 | 7.5 | 31 | 1220*720*778 | 300 |
| 1450 | 39 | 8.3 | 11 | 38 | ||||||
| 1750 | 45 | 10.1 | 11 | 47 | ||||||
| NWP50L | 3.0 | 2 | 2 | 1150 | 38 | 8.5 | 11 | 39 | 1220*720*778 | 300 |
| 1450 | 48.5 | 10.5 | 11 | 49 | ||||||
| 1750 | 58.5 | 12.7 | 15 | 59 | ||||||
| NWP62L | 3 | 2 | 2 | 1150 | 46 | 9.8 | 11 | 45 | 1220*720*778 | 330 |
| 1450 | 58 | 12.5 | 15 | 58 | ||||||
| 1750 | 70 | 15.1 | 18.5 | 70 | ||||||
