Plate Bow Shackle, SS304 OR SS316
SIZE D mm A mm B mm E mm F mm 4 4 15 9.5 ...
Loading product images...

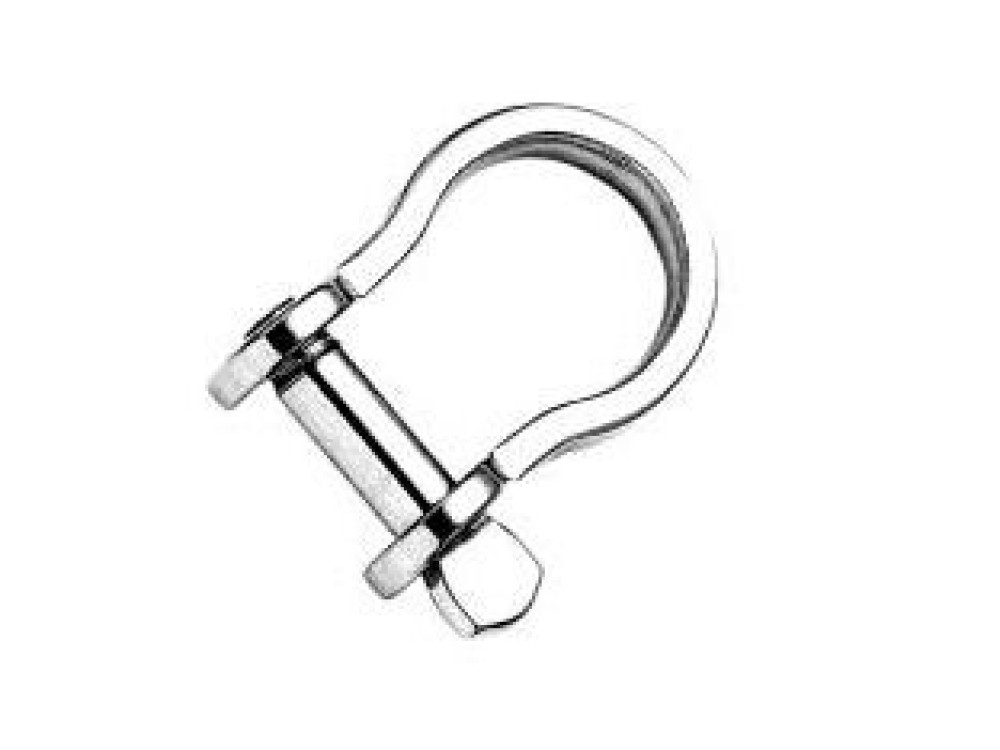

Plate Bow Shackle, SS304 OR SS316
PDF Datasheet
We can supply according to your requirement.
China Plate Bow Shackle, SS304 OR SS316:
| SIZE | D mm | A mm | B mm | E mm | F mm |
| 4 | 4 | 15 | 9.5 | 1.5 | 4.8 |
| 5 | 5 | 17 | 11 | 2 | 6.7 |
| 6 | 6 | 23 | 16 | 3 | 8 |
| 8 | 8 | 31 | 23 | 4 | 8 |
| 10 | 10 | 40 | 25 | 5 | 11.5 |
| 12 | 12 | 50 | 28.5 | 6 | 14 |
