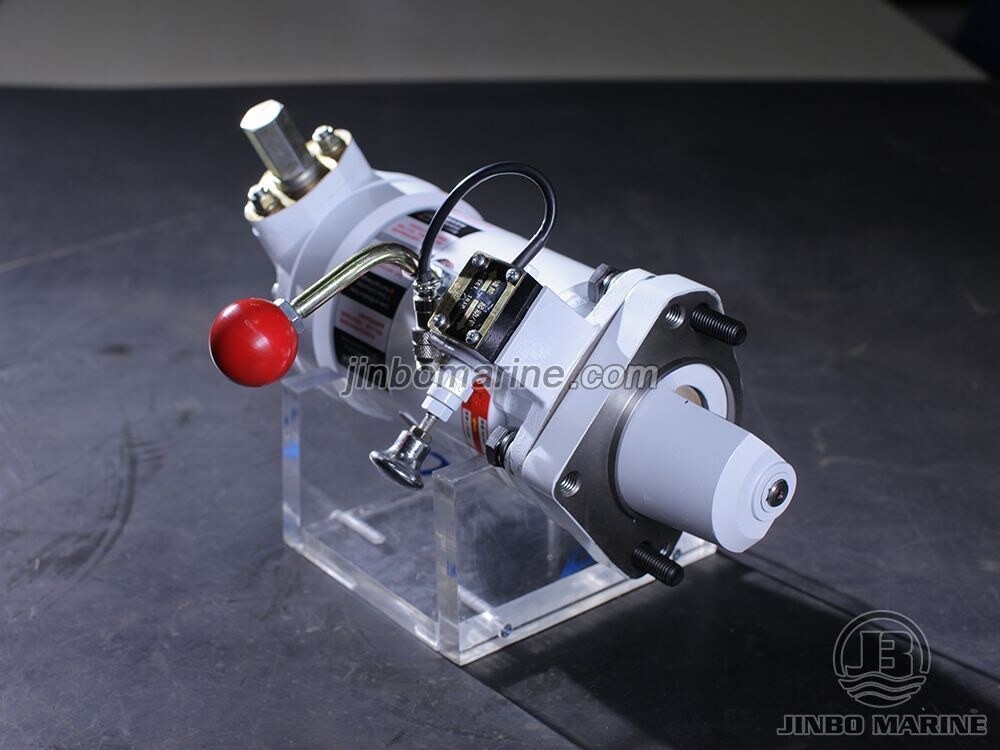

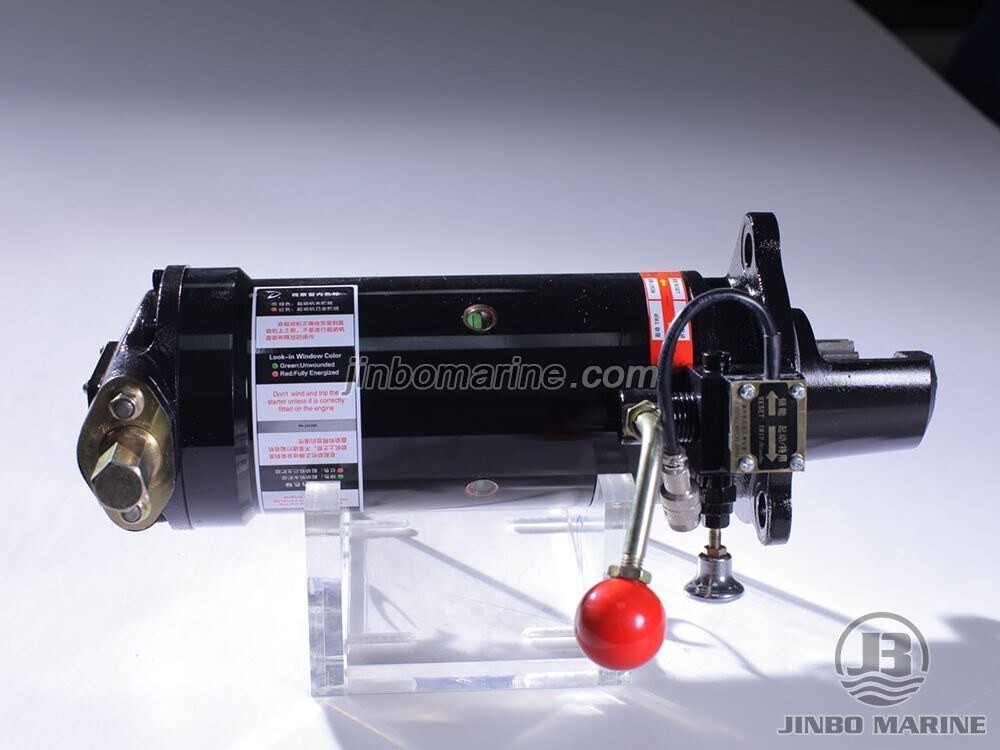

SXC027 Mechanical Spring Starter For Emergency Diesel Engine
Deascription: SXC027 Mechanical Spring Starter For Emergency Diesel Engine, we have hand crank starter, Inertia starter, mechanical starter, mechanical spring starter ,manual starte...
Loading product images...
SXC027 Mechanical Spring Starter For Emergency Diesel Engine
PDF Datasheet
We can supply according to your requirement.
Deascription:
SXC027 Mechanical Spring Starter For Emergency Diesel Engine, we have hand crank starter, Inertia starter, mechanical starter, mechanical spring starter ,manual starter, most application on engine displacement about the 1L—7.5L . Example : CAT C4.4 , Perkins 1104 , Cummins 4B/6B , Weichai WP4/6 , Deutz BF3L913 , Yuchai YC4F/4D.
| Dalin Spring Starter Series | 5 Series | 1 Series | |
| MD | HD | ||
| Mounting Flange | SAE# on standard | 1,2,3 & 4 | 1,2 & 3 |
| Diesel Engine | Liter(L)/Cylinder& | 1.0 & 4 | 1.4 & 6 |
| Displacement | Max cyl.number | 0.8 & 6 | 1.4 & 6 |
| Max pinpion torque | Nm | 126 | 126 |
| Max winding torque | Nm | 100 | 100 |
| Weight | kg | 16 | 18 |
| turns to fully wind | turns | 2+6 | 2+8 |
