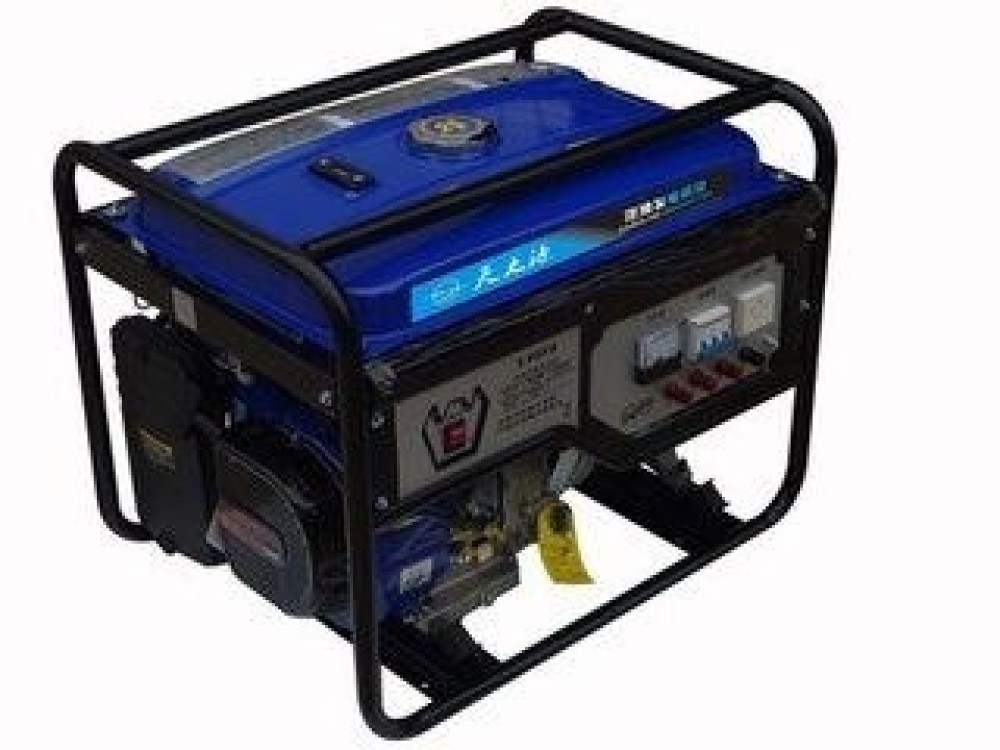

4-stroke Air-cooled gasoline generator
4-stroke Air-cooled gasoline generator Parameter 4-Stroke Air-cooled gasoline generator Generator Model ...
Loading product images...
4-stroke Air-cooled gasoline generator
PDF Datasheet
We can supply according to your requirement.
4-stroke Air-cooled gasoline generator
Parameter
| 4-Stroke Air-cooled gasoline generator | |||||
| Generator | Model | 1700 | 2700 | 4700 | 6700 |
| Rated output power(KW) | 1 | 2 | 3 | 5 | |
| Max.power(KW) | 1.2 | 2.2 | 3.3 | 5.5 | |
| Rated frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | |
| 1-Phase AC voltage | 110/220 | 110/220 | 110/220 | 110/220 | |
| DC output | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | |
| Power factor(cos∮) | 1 | 1 | 1 | 1 | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | |
| Noise level | 65 | 68 | 70 | 72 | |
| Fuel tank capacity(L) | 4 | 12 | 25 | 25 | |
| Structure type | Open Frame type | ||||
| Engine | Engine Model | 154F | 168F1 | 173F | 188F |
| Type | Single cylinder,4-stroke,air-cooled OHV,gasoline engine | ||||
| Displacement(ml) | 87 | 163 | 243 | 389 | |
| Max.output power(hp)/Speed(Rpm) | 2.8/3600 | 5.5/3600 | 8/3600 | 13/3600 | |
| Oil capacity(L) | 0.37 | 0.6 | 1 | 1.1 | |
| Ignition method | Transistor electric, inductive firing | ||||
| starting method | Recoil start | ||||
| Continuous work time(Hour) | 10 | 8 | 8 | 8 | |
| Options | Electric start system | N/A | N/A | Available | Available |
| 3-Phase Ac voltage | N/A | N/A | Available | Available | |
| 4-wheel vehicle set | N/A | N/A | Available | Available | |
| 2-Wheel and handle | N/A | N/A | Available | Available | |
| Double voltage switch | N/A | N/A | Available | Available | |
| Pack | Packing size(mm) | 460x410x390 | 605x445x470 | 700x530x575 | 700x530x575 |
| Net weight(Kgs) | 27 | 40 | 75 | 80 | |
| Gross weight(Kgs) | 29 | 42 | 78 | 83 | |
| 20FT Qty | 420 | 235 | 136 | 136 | |
