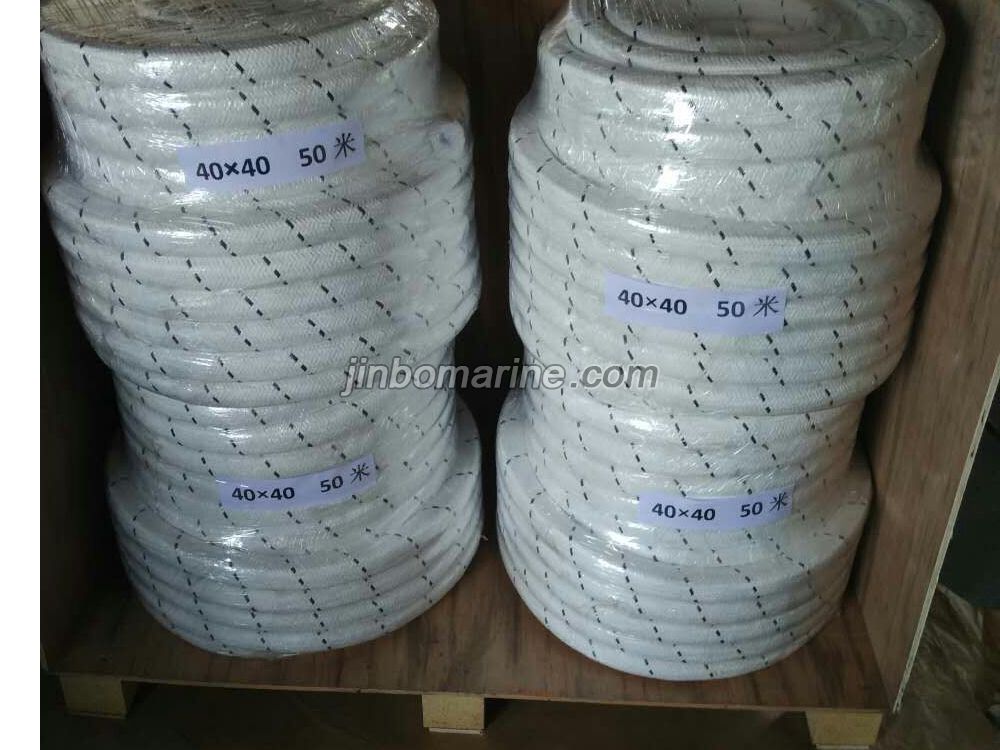

PTFE Tank Lid Packing IMPA 810725
PTFE Tank Lid Packing IMPA 810725 The tank lid packing is a hollow core of special rubber for maximum chemical resistance. Around it is a protective layer of PTFE tape w...
PTFE Tank Lid Packing IMPA 810725
We can supply according to your requirement.
PTFE Tank Lid Packing IMPA 810725
The tank lid packing is a hollow core of special rubber for maximum chemical resistance.
Around it is a protective layer of PTFE tape which is surrounded by a thick cushion of defibrillated polypropylene that has corners constructed from the same materials braided into cords.
Over the packing is a double layer of heavy-duty PTFE tape with a final outer protection of braided PTFE yarn.
Application: Static. Cargo or chemical tanks. Acids, alkalis, oils, solvents, chemicals, edible products.
Maximum temperature: 100°C.
Maximum pressure: 1 Bar.
PH: 1-14.
Size: 40x40mm.
PTFE Tank Lid Packing Technical Specifications
| Square Section | Rectangular Section | ||
| IMPA CODE | Size (mm) | IMPA CODE | Size (mm) |
| 810721 | 20×20 | 810726 | 20×15 |
| 810722 | 25×25 | 810727 | 30×20 |
| 810723 | 35×35 | 810728 | 35×25 |
| 810724 | 38×38 | 810729 | 40×30 |
| 810725 | 40×40 | ||
