Pelican hook chain stopper
Chain Size mm A B Min. B Max. C D E Det. Lin...
Loading product images...

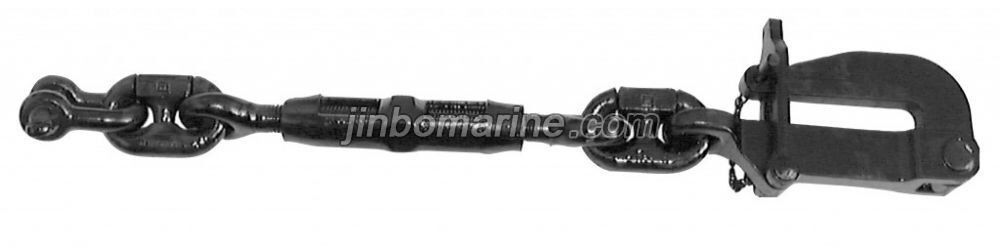

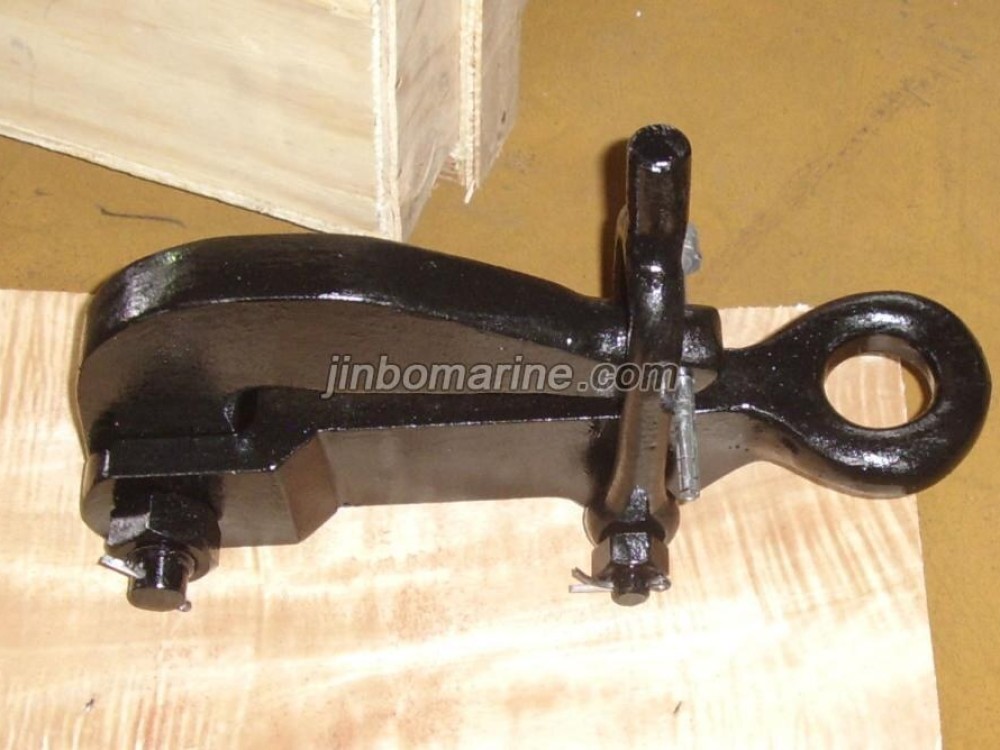

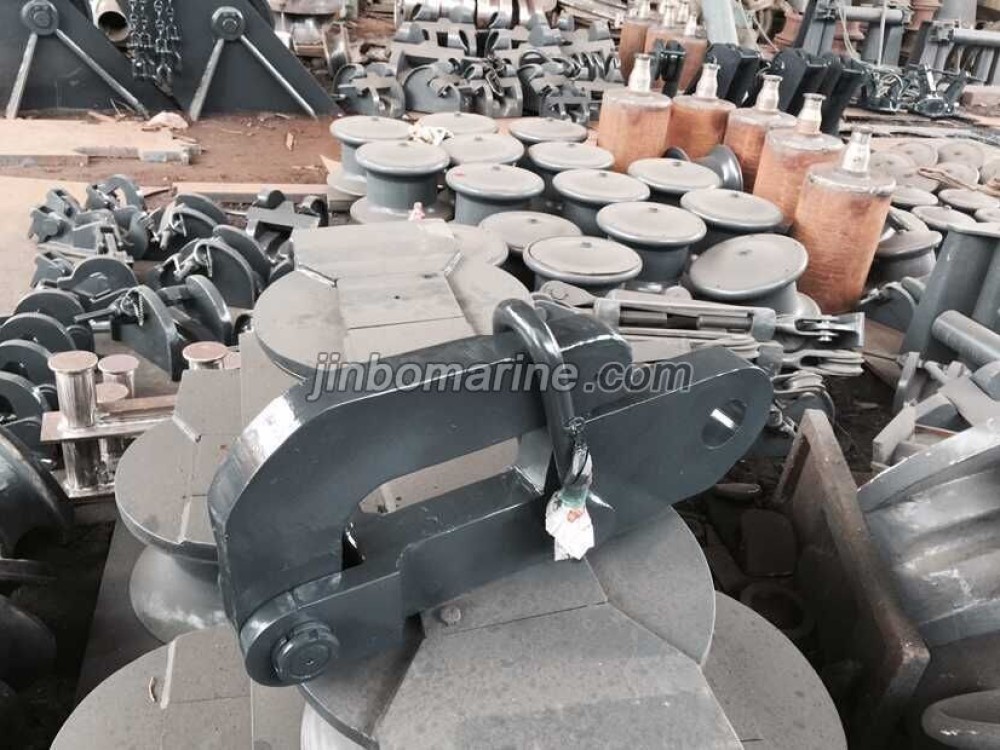

Pelican hook chain stopper
PDF Datasheet
We can supply according to your requirement.
China Pelican hook chain stopper:

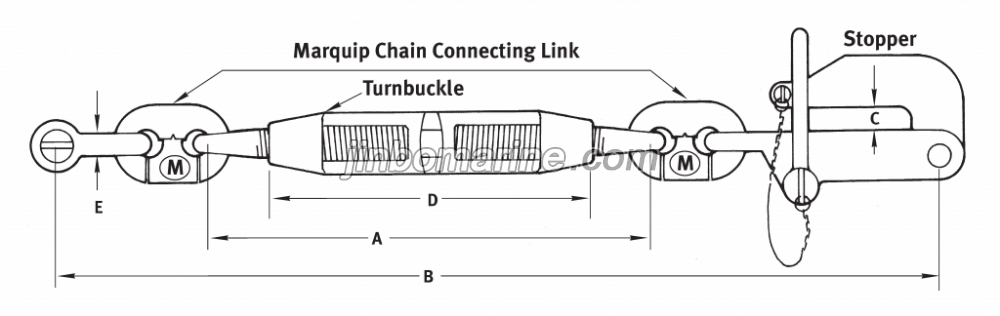

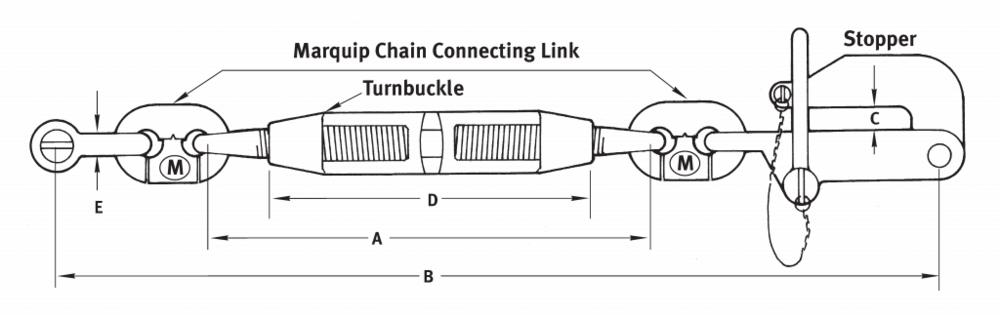

| Chain Size | mm | A | B Min. | B Max. | C | D | E | Det. Link | Proof | Break |
| Inches | Size | Load Lbs. | Load Lbs. | |||||||
| 3/4" | 19 | 16 | 33-1-4" | 40-1-2" | 1 | 11 | 7-8" | 3-4" | 67,500 | 91,100 |
| 7/8" | 22 | 17-1-4" | 38-7-16" | 45-9-16" | 1-7/32 | 11 | 1 | 7-8" | 88,200 | 119,000 |
| 1 – 1-1/8 | 25 – 29 | 19-1-2" | 46-7-8" | 55-1-2" | 1-17/32 | 13 | 1-1-8" | 1-1-8" | 145,000 | 195,000 |
| 1-1-4" | 32 | 19-5-8" | 48" | 56-5-8" | 1-17/32 | 13 | 1-1-4" | 1-1-4" | 178,200 | 240,600 |
| 1-1/4HS – 1-1/2 | 32HS – 38 | 23-3-4" | 55-3-16" | 65-11-16" | 1-3-4" | 16 | 1-1-2" | 1-3-8" | 211,500 | 285,500 |
| 1-3/8HS – 1-5/8 | 34HS – 42 | 23-3-4" | 55-3-16" | 65-11-16" | 2 | 16 | 1-1-2" | 1-3-8" | 211,500 | 285,500 |
| 1-5/8HS – 2 | 42HS – 51 | 24-1-8" | 59-3-16" | 69-11-16" | 2-7-16" | 16 | 1-1-2" | 1-1-2" | 252,000 | 340,200 |
| 2-1/8 – 2-3/8 | 54 – 60 | 26-1-4" | 65-5-8" | 76-1-8" | 2-9-16" | 16 | 1-5-8" | 1-1-2" | 252,000 | 340,200 |
| 2-1/2 – 2-5/8 | 64 – 67 | 29-3-4" | 74-3-8" | 87-1-2" | 3-1-8" | 20 | 1-7-8" | 1-5-8" | 292,500 | 395,000 |
| 2-3/4 – 2-3/4HD | 70 – 70HD | 29-3-4" | 86-5-8" | 89-3-4" | 3-1-8" | 20 | 1-7-8" | 1-3-4" | 352,000 | 476,000 |
| 3HD – 3-1/4 | 76HD – 83 | 36 | 90-3-4" | 106-1/2 | 3-3-4" | 24 | 2-3-8" | 2-1-4" | 403,000 | 610,000 |
| 3-3/8 – 3-1/2 | 86 – 89 | 38-5-8" | 97-7-16" | 113-1/16 | 3-7-8" | 24 | 2-5-8" | 2-1-2" | 492,000 | 744,000 |
| 3-1/2HD – 3-3/4 | 89HD – 95 | 44-3-8" | 110 | 128-1/8 | 4-1-2" | 27-1-2" | 2-7-8" | 3 | 706,000 | 1,068,000 |
| 4-3-4" | 121 | 44-3-8" | 130-5/8 | 147-5/8 | 5-3-8" | 27-1-2" | 2-7-8" | 3 | 706,000 | 1,068,000 |
HS = High Strength Chain
HD = Heavy Duty Chain

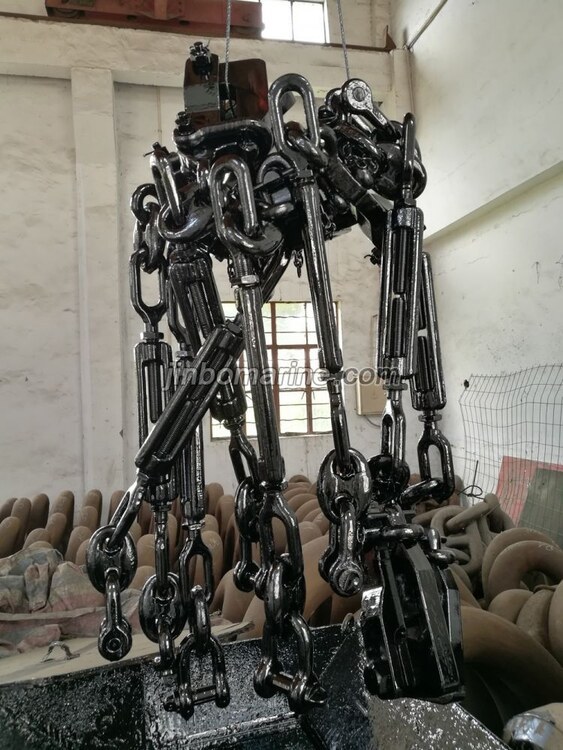

Black Painting Pelican Hook Chain Stoppers
